Air Temperature Sensor Connector End View - Inside

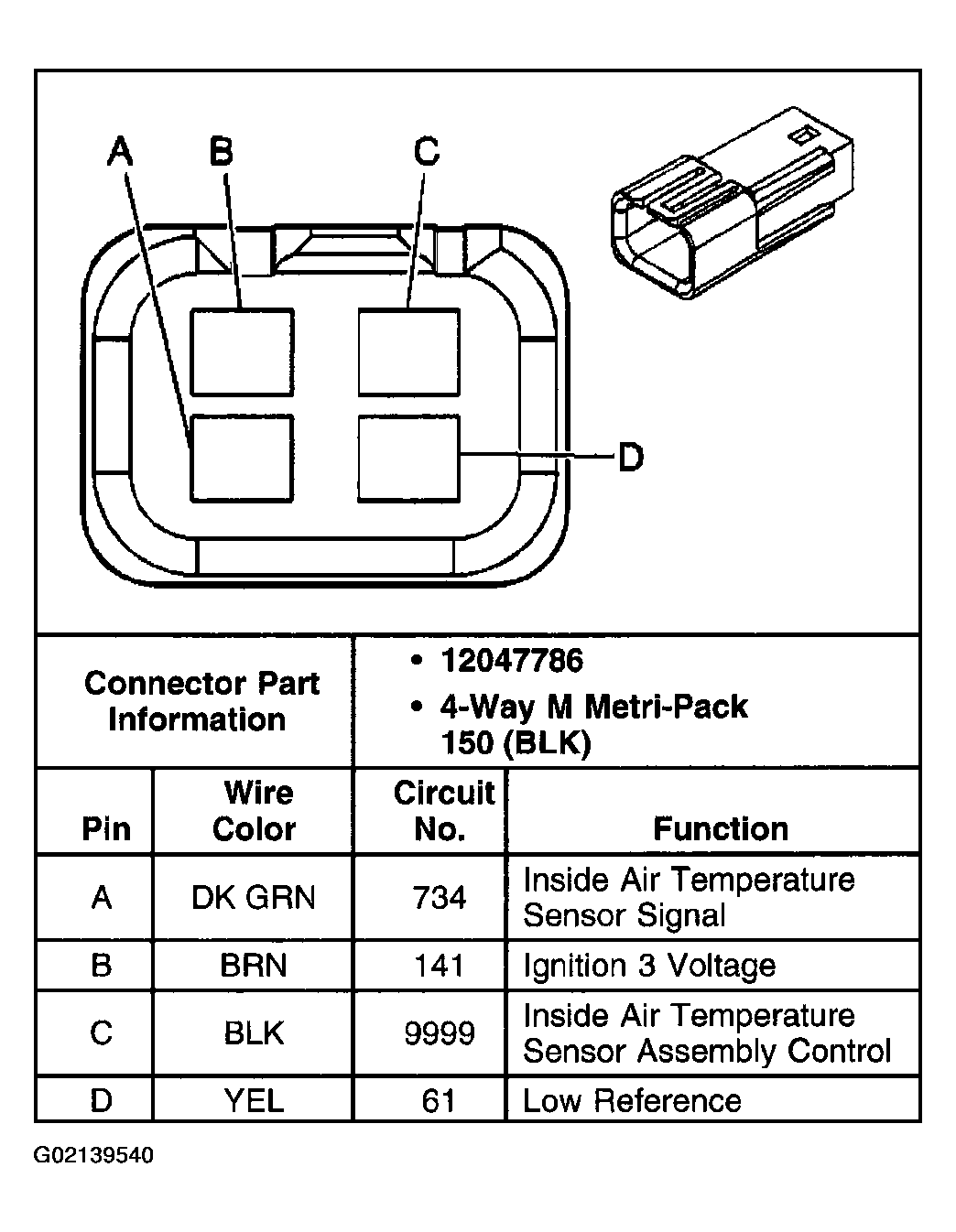

Fig 1: Air Temperature Sensor - Inside

G02139540

Courtesy of GENERAL MOTORS CORP.
