Installation Procedure

  1. Install the horns to the body.
    NOTE: Refer to FASTENER NOTICE
  2. Install the fastener in order to secure the horns to the body.

    Tighten

    Tighten the bolts to 15 N.m (11 lb ft).

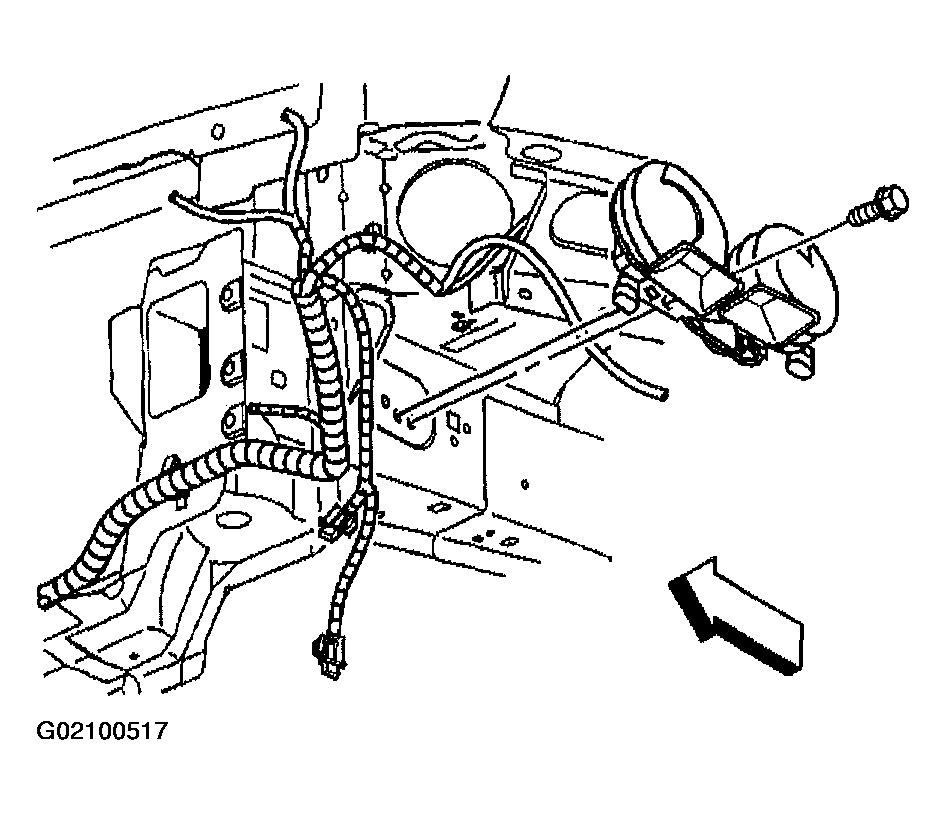

    Fig 1: Installing Fastener To Securing Horns To Body
    G02100517Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn connectors (1) to the horns.
  4. Install the front air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT
  5. Lower the vehicle.

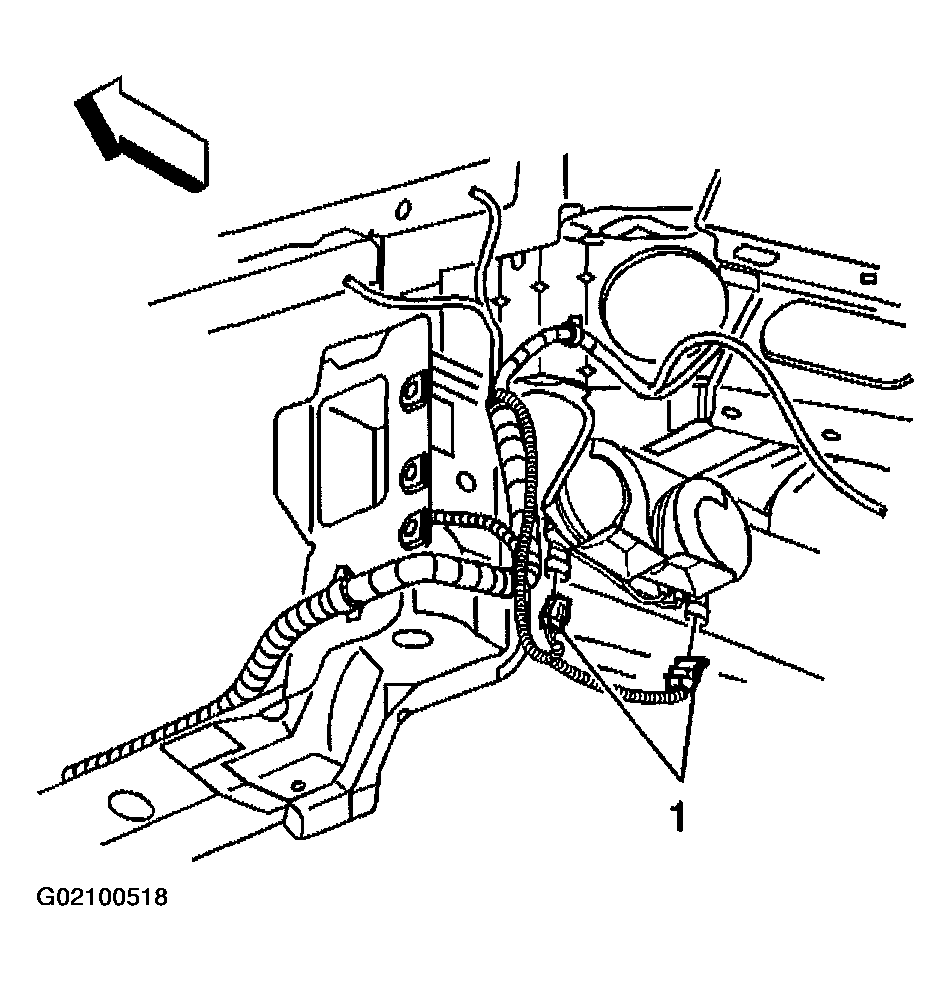

    Fig 2: Connecting Horn Connectors
    G02100518Courtesy of GENERAL MOTORS CORP.
