Horns Connector End Views

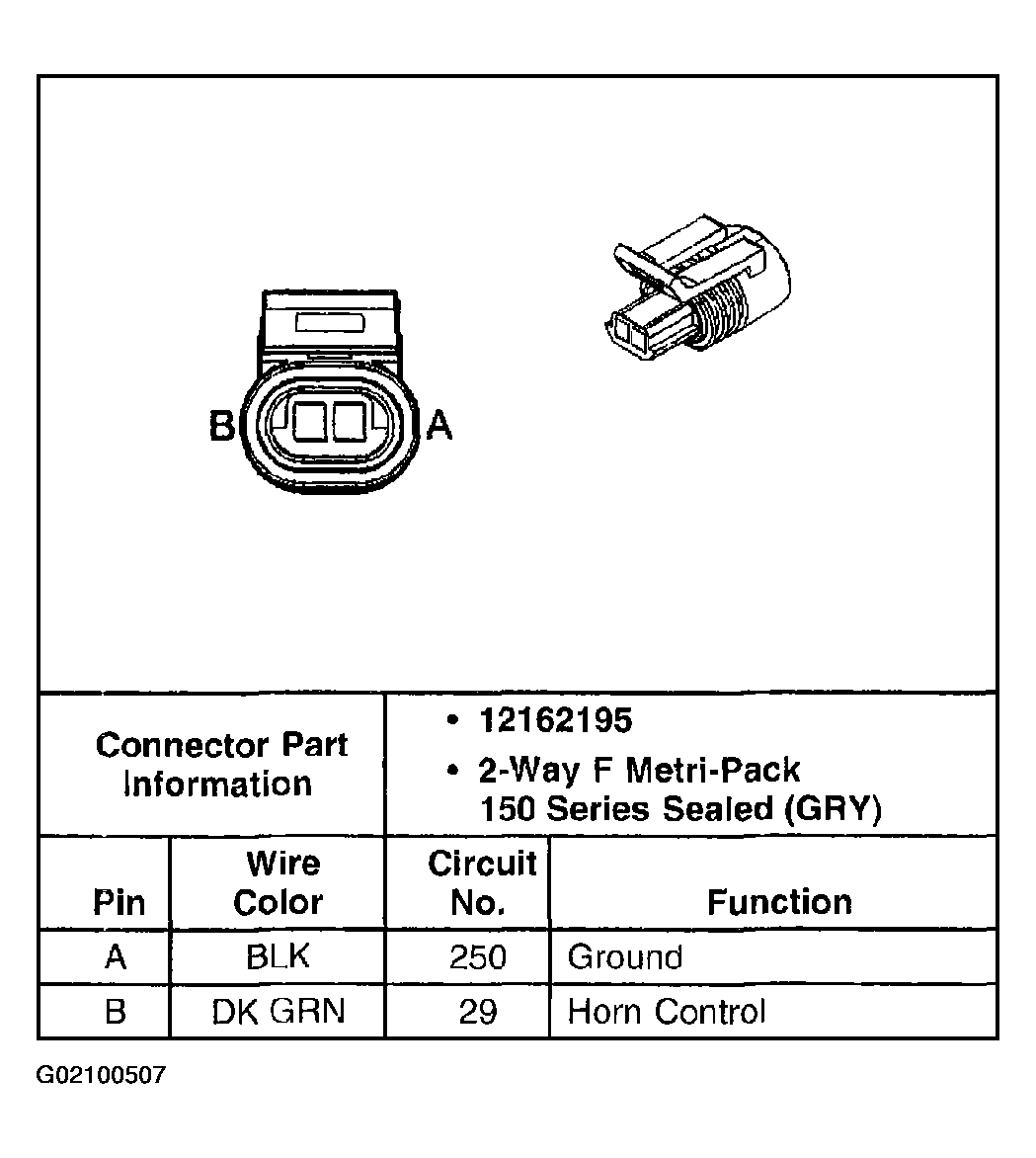

Fig 1: Identifying Horn - High Note Connector Terminal

G02100507

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Horn - Low Note Connector Terminal

G02100508

Courtesy of GENERAL MOTORS CORP.
