Removal Procedure

Important:

• Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
• Always route the replacement cable the same way as the original cable.

1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
2. Disconnect the battery positive cable (1) from the battery.

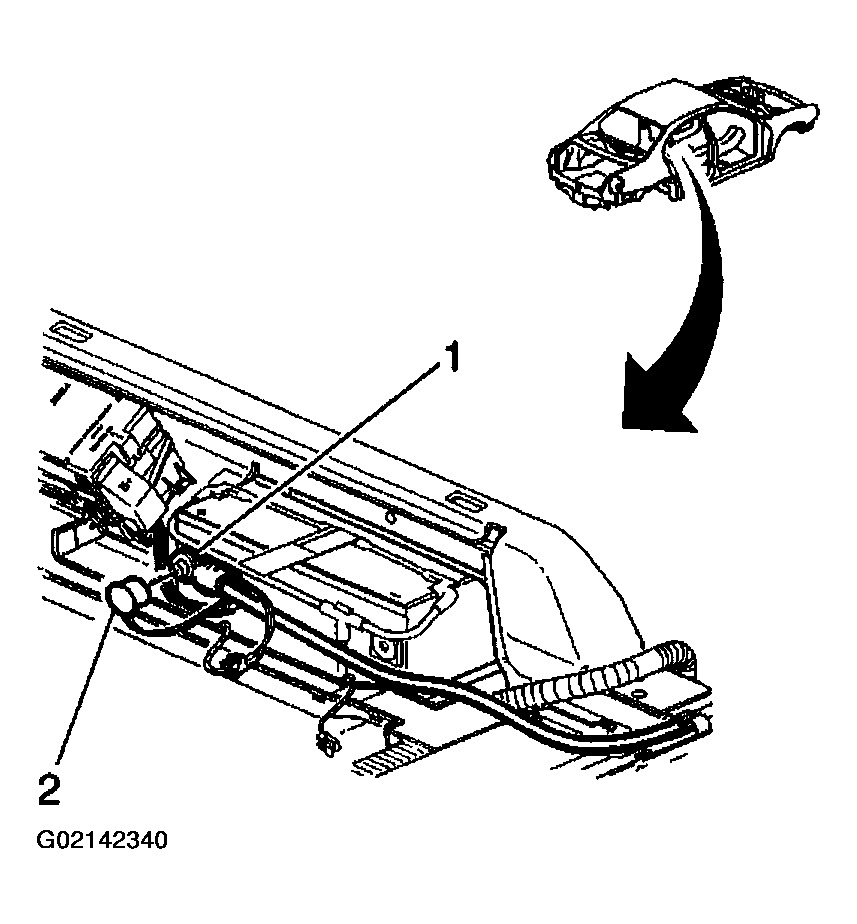

   Fig 1: Disconnecting Battery Positive Cable From Battery

   Courtesy of GENERAL MOTORS CORP.
3. Remove the nut (1) securing the battery positive cable to the rear fuse block.
4. Remove the interior trim moldings. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR in Interior Trim to expose the positive battery cable.
5. Remove the right closeout insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.

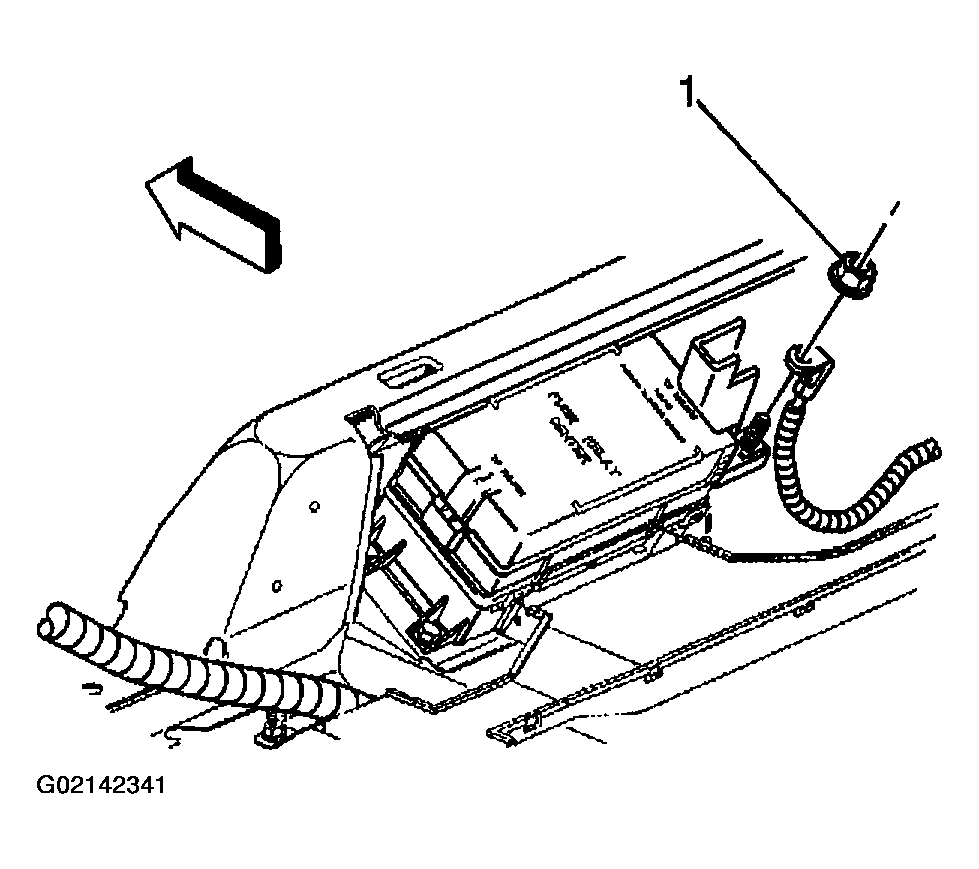

   Fig 2: Removing Nut Securing Battery Positive Cable

   Courtesy of GENERAL MOTORS CORP.
6. Remove the battery cable retainers (2) from the rocker panel area.

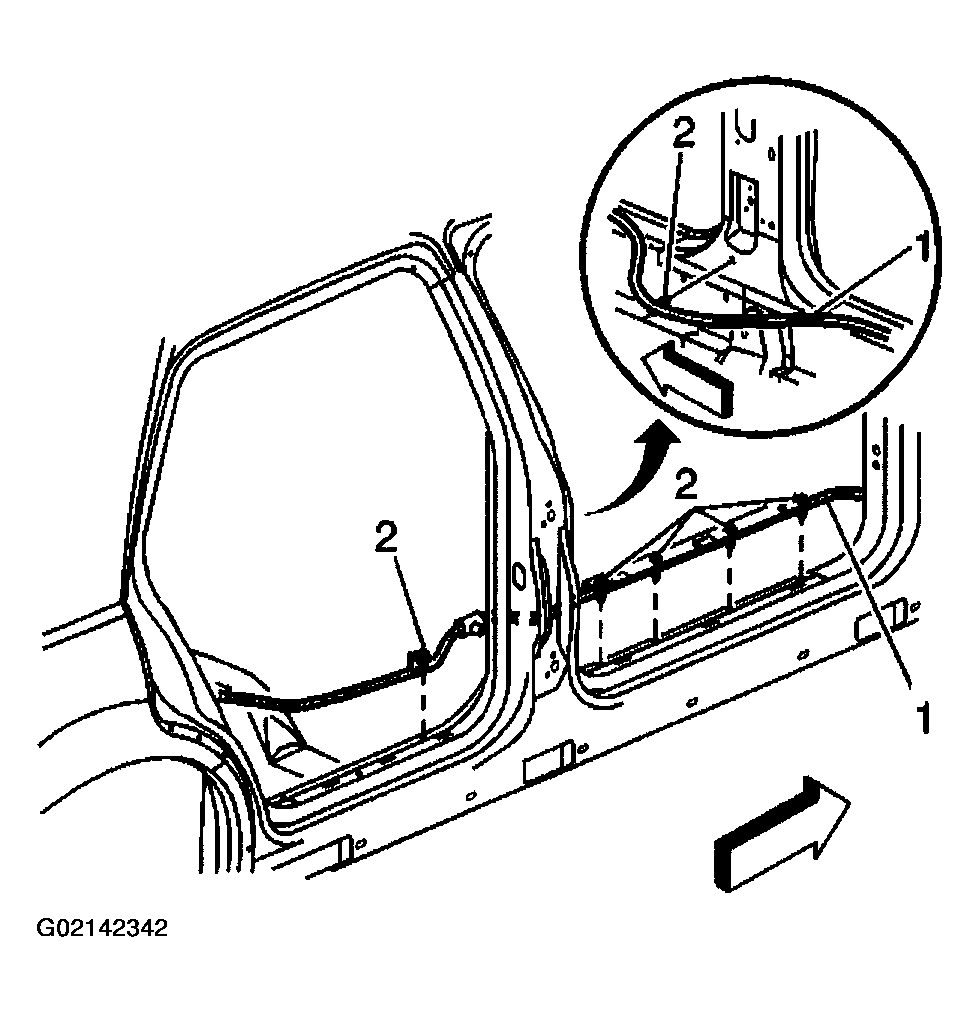

   Fig 3: Removing Battery Cable Retainers From Rocker Panel Area

   Courtesy of GENERAL MOTORS CORP.
7. Remove the remote positive terminal nut (1) and disconnect the battery positive cable from the underhood fuse block (2).
8. Remove the surge tank. Refer to SURGE TANK REPLACEMENT in Engine Cooling.

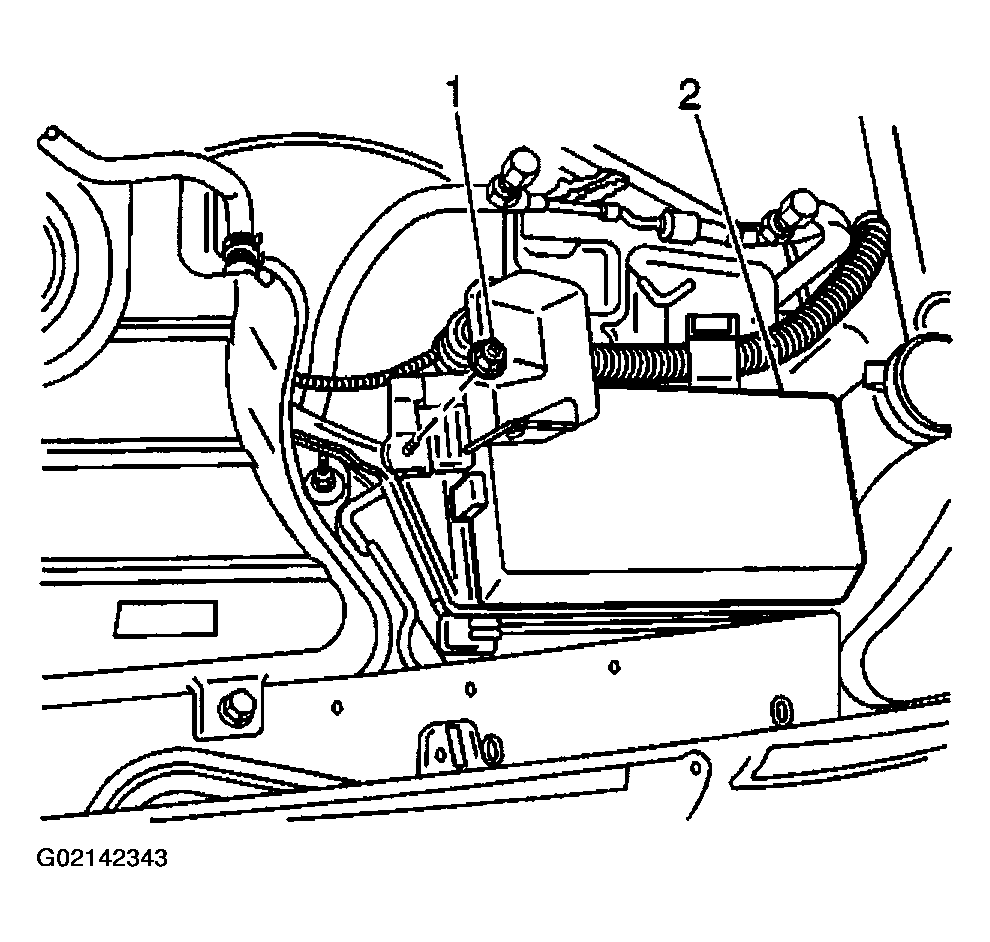

   Fig 4: Removing Remote Positive Terminal Nut From Underhood Fuse Block

   Courtesy of GENERAL MOTORS CORP.
9. Disconnect the battery cable retainer from the body side rail.

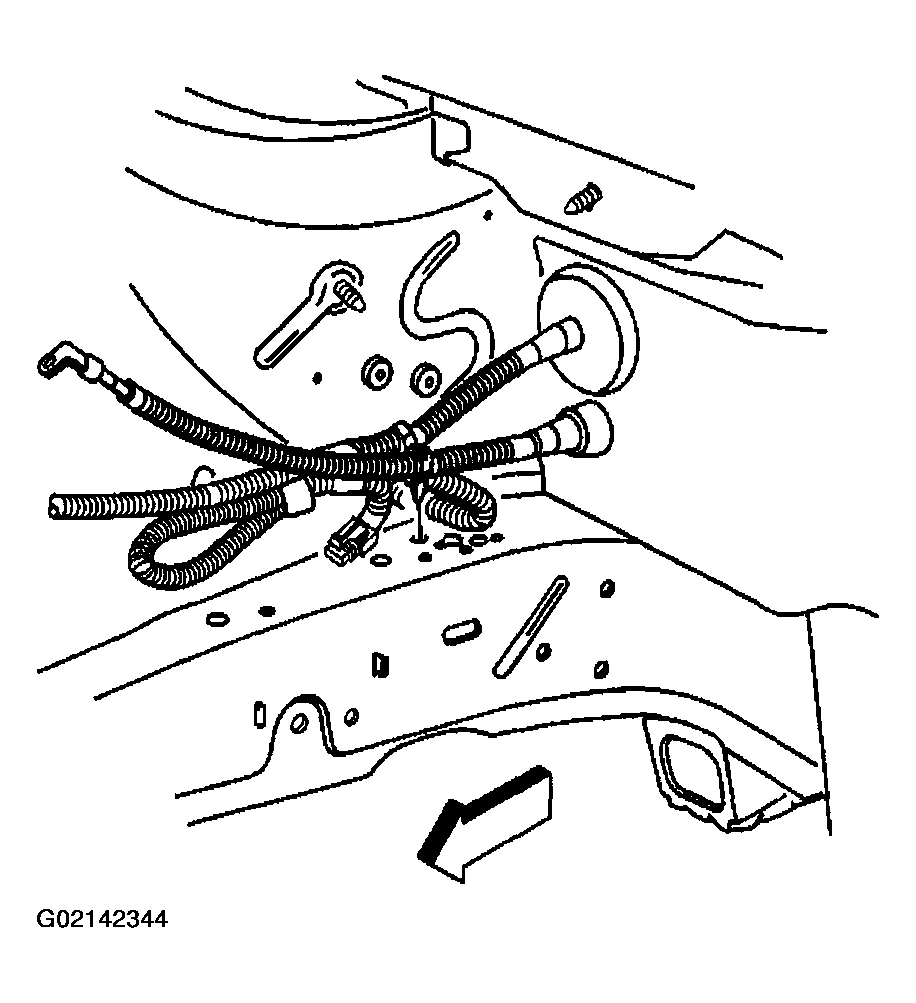

   Fig 5: Disconnecting Battery Cable Retainer From Body Side Rail

   Courtesy of GENERAL MOTORS CORP.
10. Unseat the battery cable grommet (2) from the cowl panel (3).
11. Carefully remove the battery cable (1) from the vehicle by pulling the cable through the cowl panel (3) and out of the vehicle.

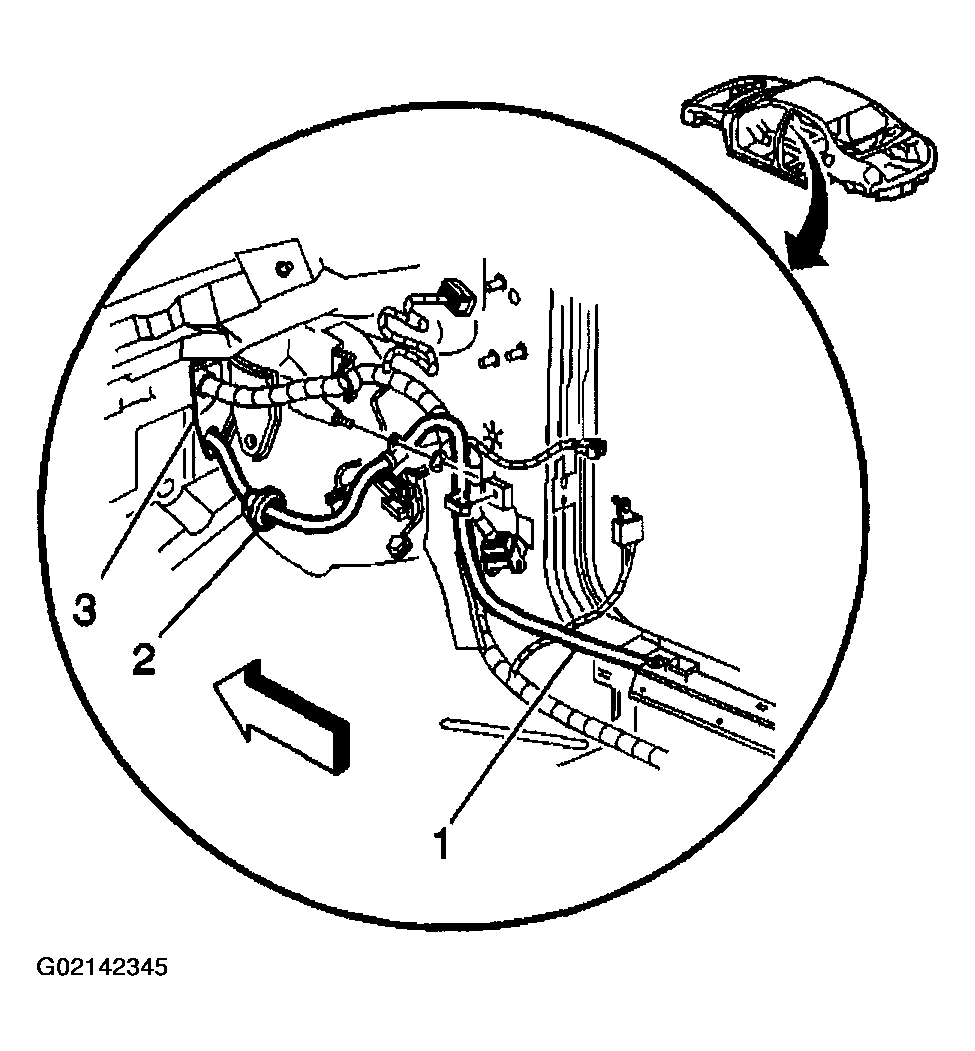

    Fig 6: Removing Battery Cable From Cowl Panel

    Courtesy of GENERAL MOTORS CORP.
