Vehicle Communication Interface Module (VCIM) Connector End View C1

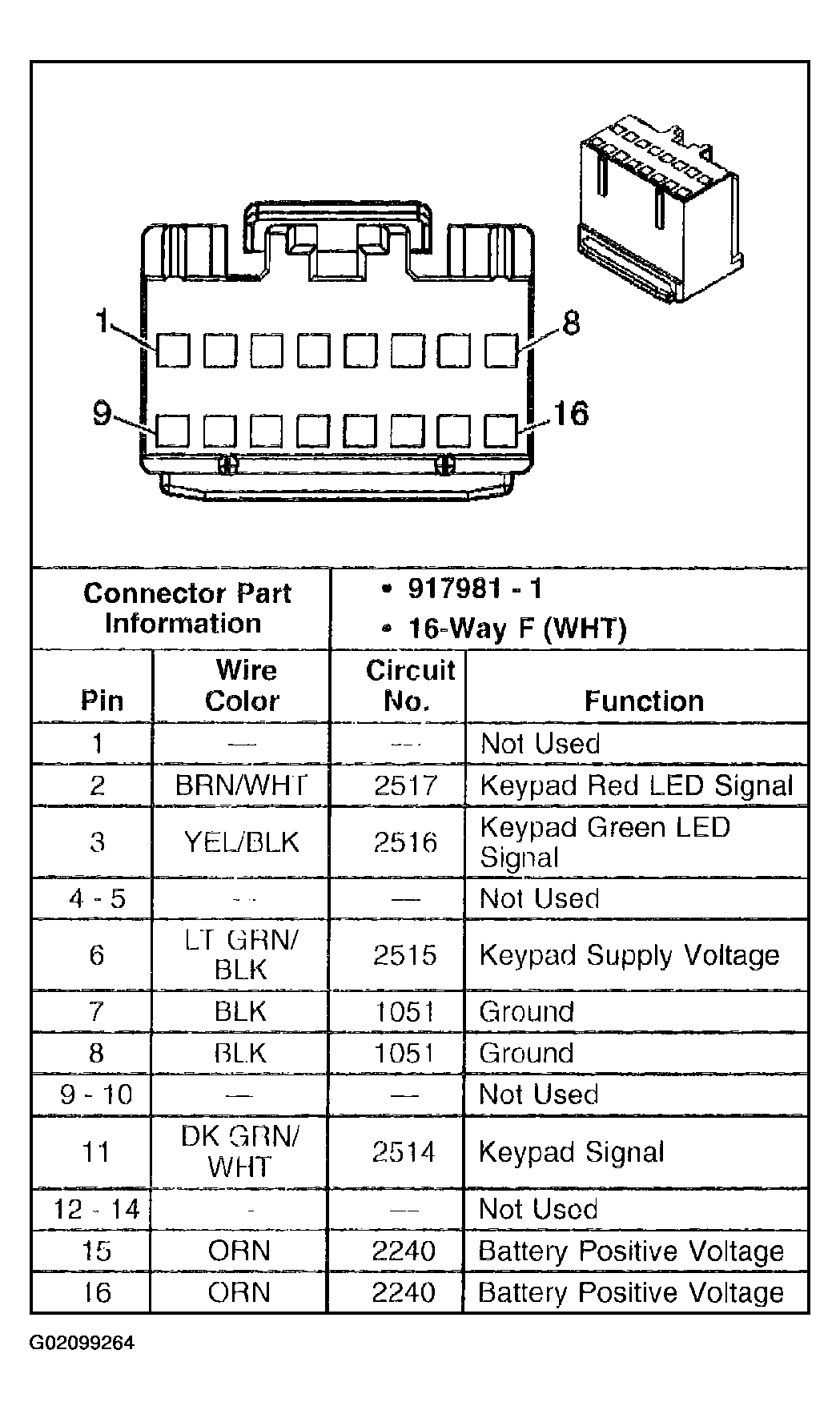

Fig 1: Vehicle Communication Interface Module (VCIM) C1

G02099264

Courtesy of GENERAL MOTORS CORP.
