Passenger Front Door Module (PFDM) Connector End View C2

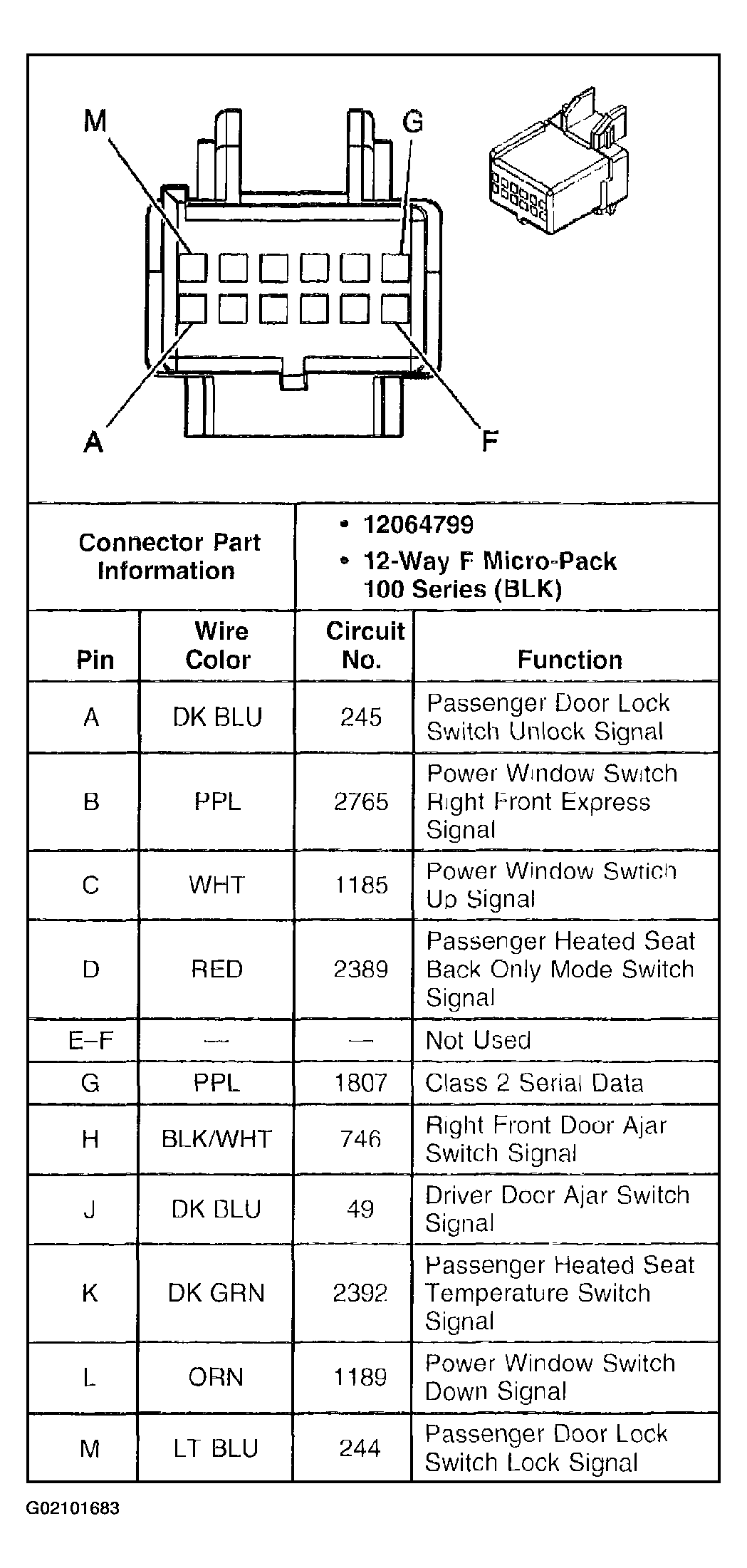

Fig 1: Passenger Front Door Module (PFDM) C2

G02101683

Courtesy of GENERAL MOTORS CORP.
