Object Sensor Connector End View - LR Middle

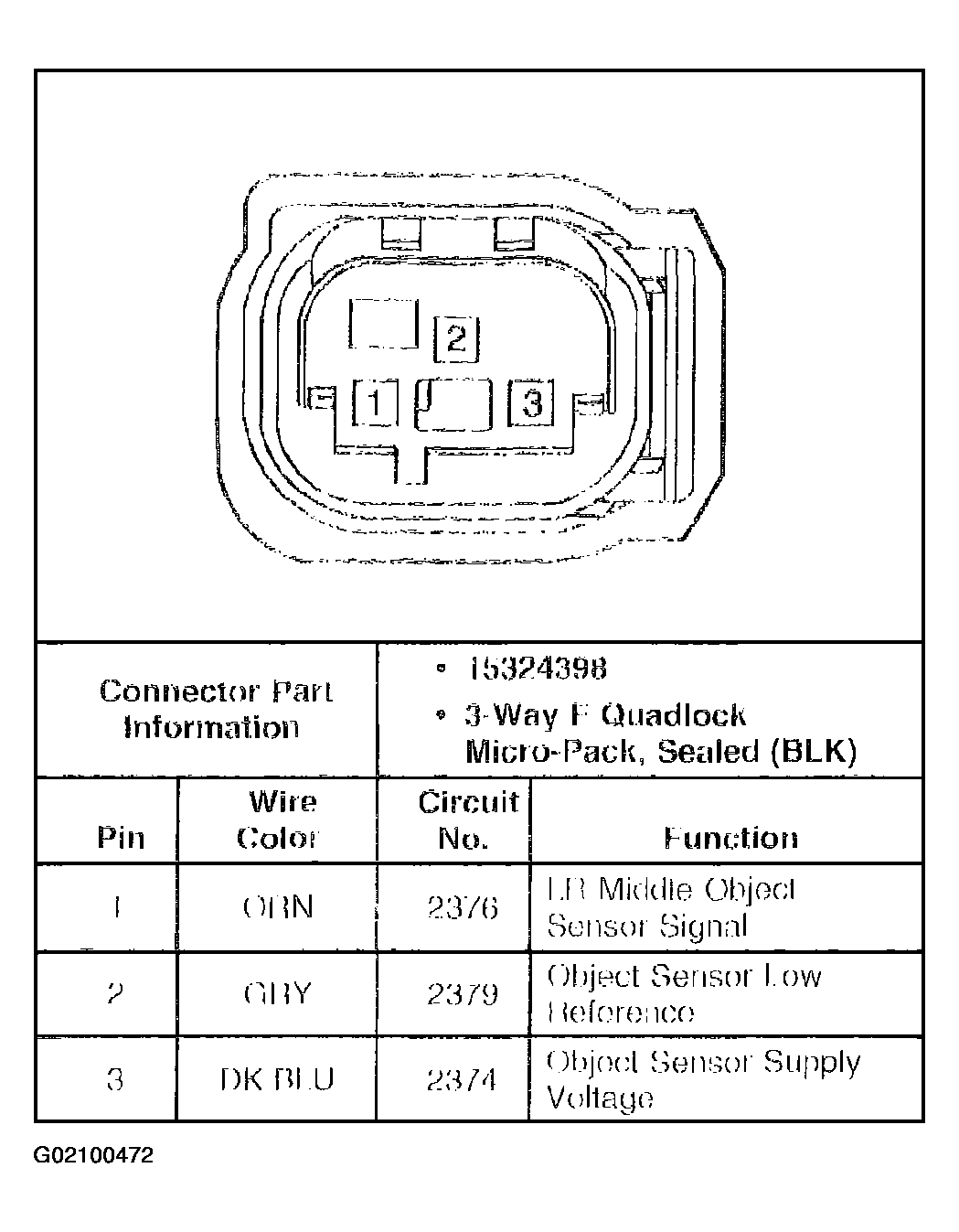

Fig 1: Object Sensor - LR Middle

G02100472

Courtesy of GENERAL MOTORS CORP.
