Home >> Cadillac >> 2003 >> DeVille Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Blower Motor Control Processor Connector End View

Blower Motor Control Processor Connector End View

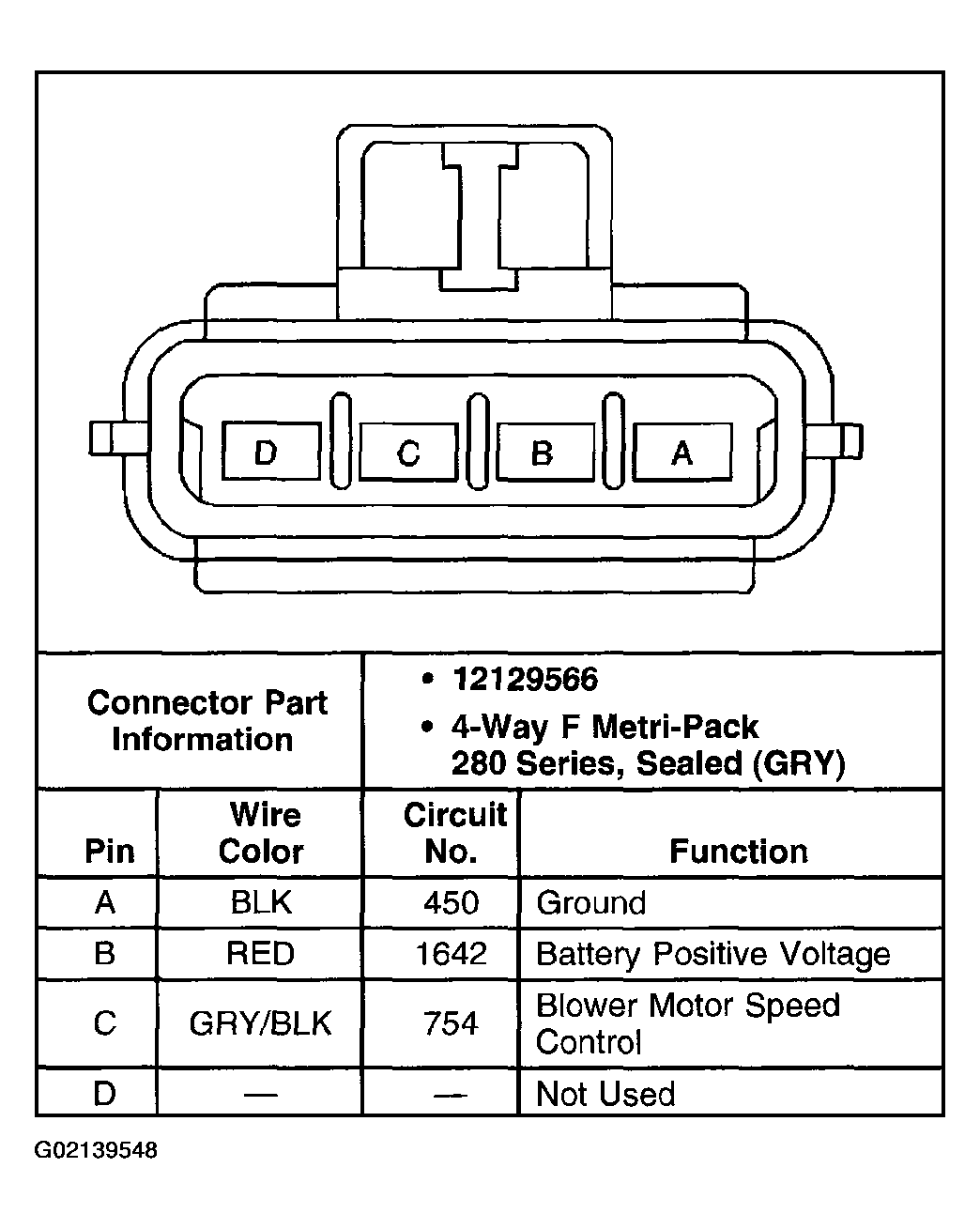

Fig 1: Blower Motor Control Processor

G02139548

Courtesy of GENERAL MOTORS CORP.
