Scan Tool Output Controls

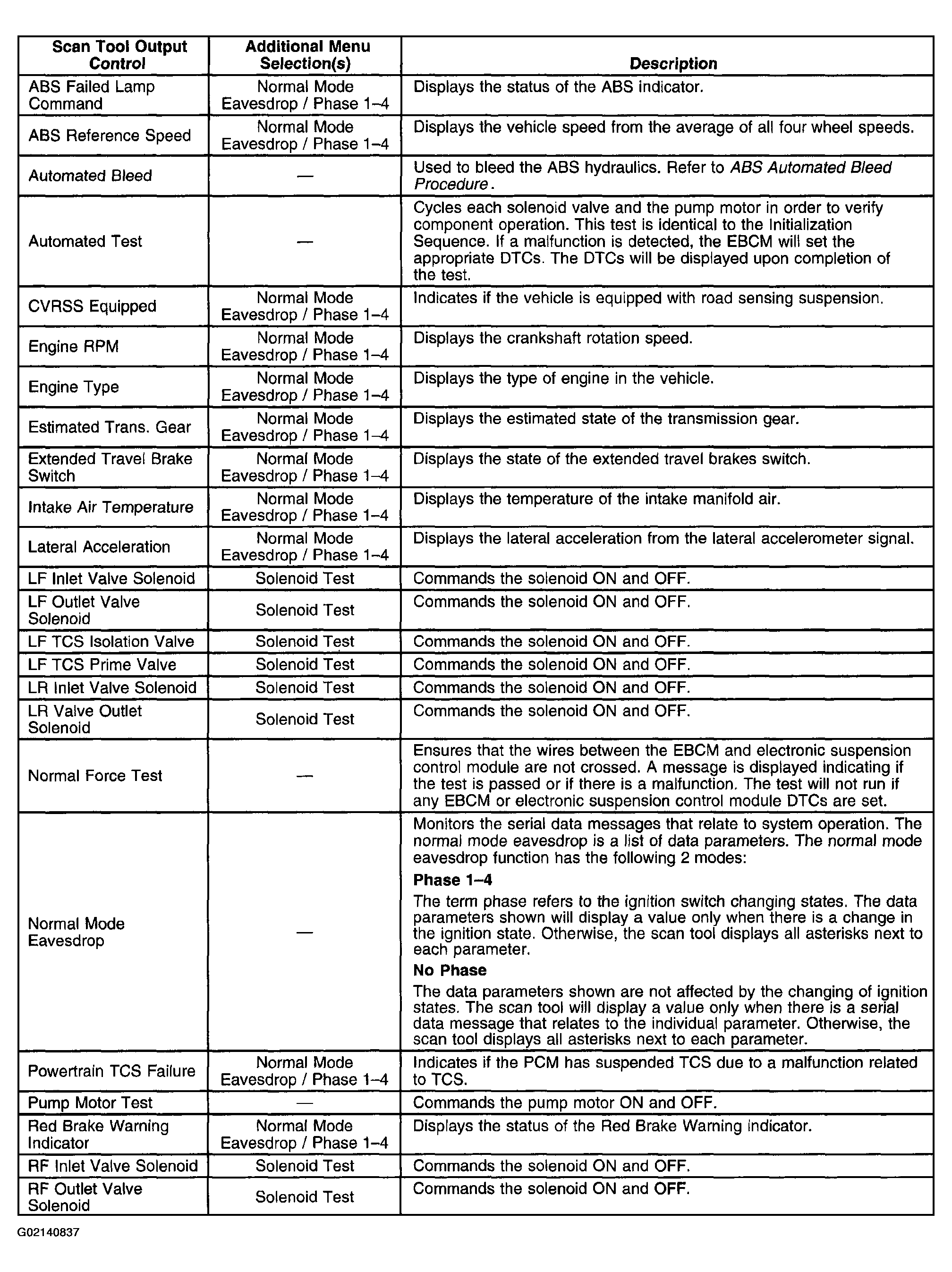

Fig 1: Electronic Brake Control Module (EBCM) Scan Tool Output Controls Description Chart (1 Of 2)
G02140837Courtesy of GENERAL MOTORS CORP.

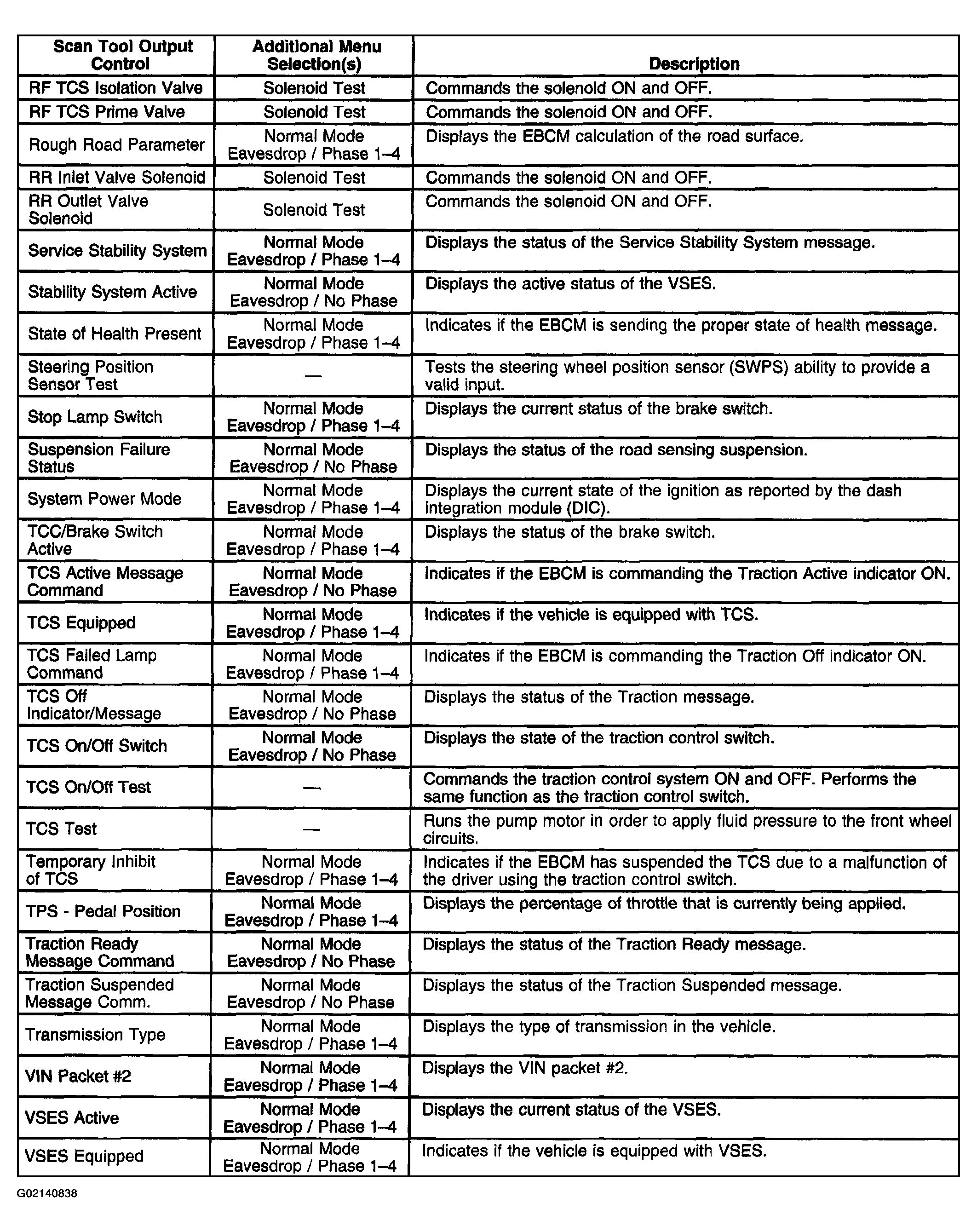

Fig 2: Electronic Brake Control Module (EBCM) Scan Tool Output Controls Description Chart (2 Of 2)
G02140838Courtesy of GENERAL MOTORS CORP.
