Compass Magnetic Variation Adjustment

Magnetic variation adjustments are required when the compass displays a constant error in heading. Variation is the difference between magnetic north and true north due to geographical location.

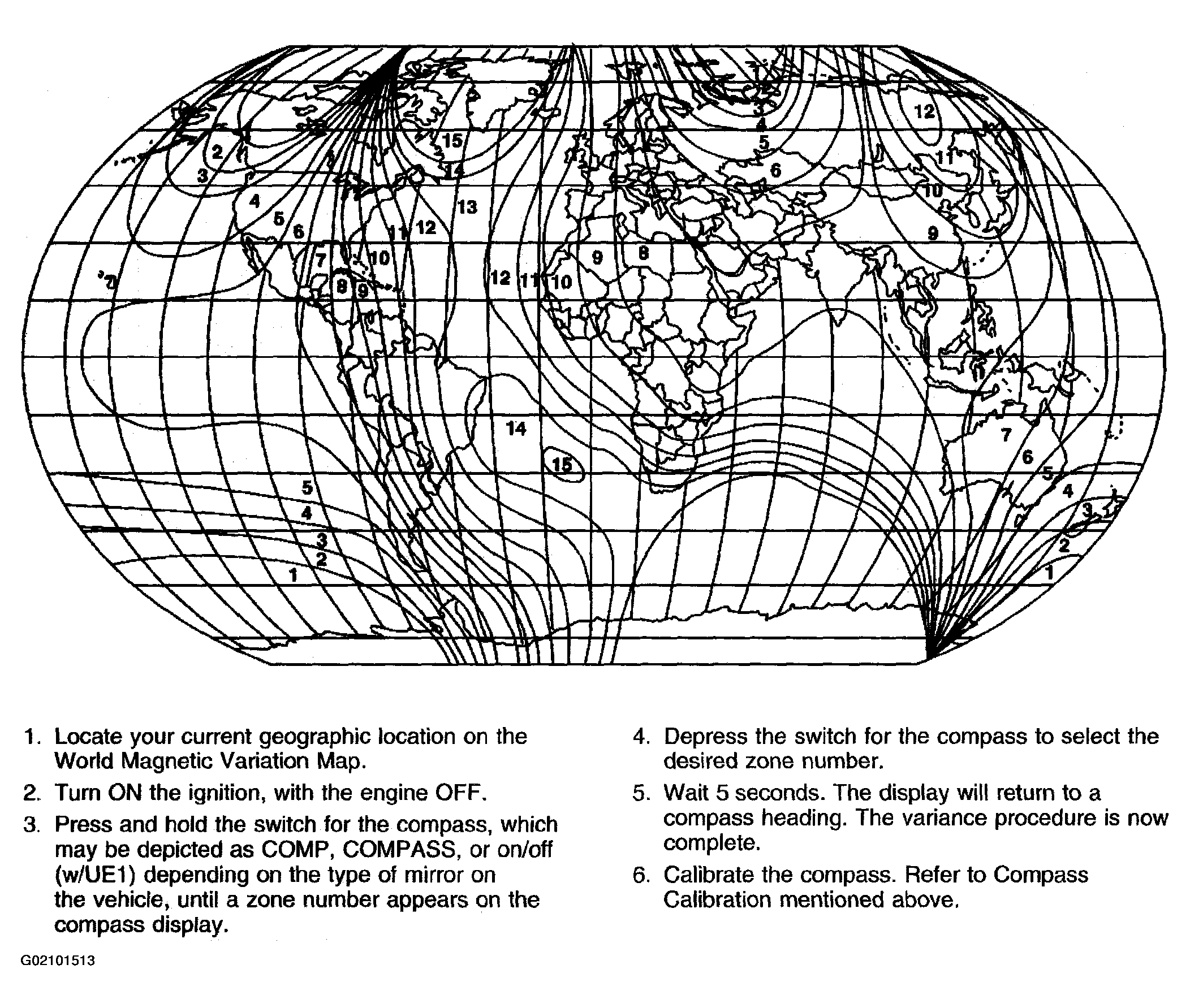

Fig 1: Identifying World Magnetic Variation Map
G02101513Courtesy of GENERAL MOTORS CORP.
