Stationary Windows Connector End Views
Stationary Windows Connector End Views

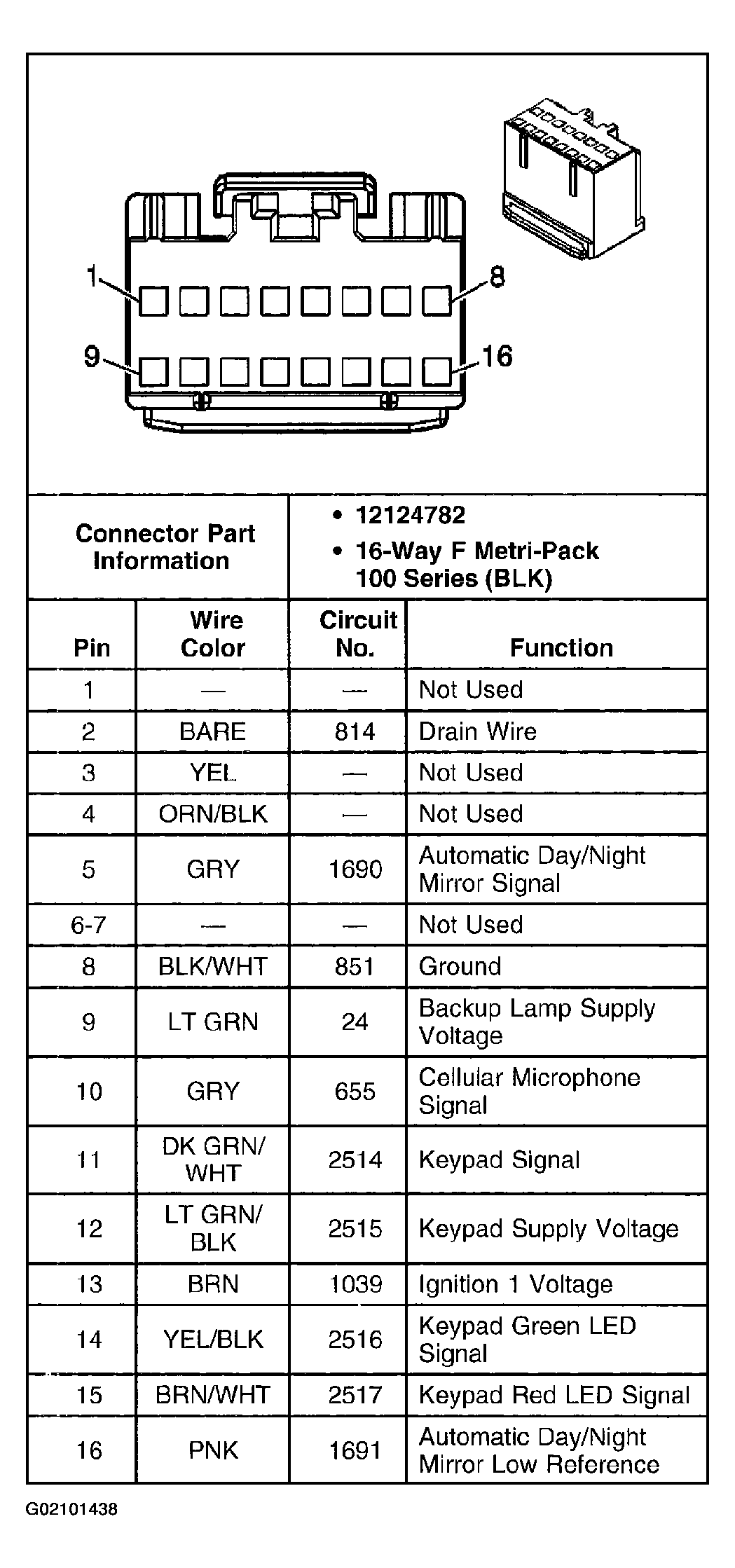

Fig 1: Identifying Inside Rearview Mirror Connectors
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Radio TV Antenna Signal Module Connectors
Courtesy of GENERAL MOTORS CORP.

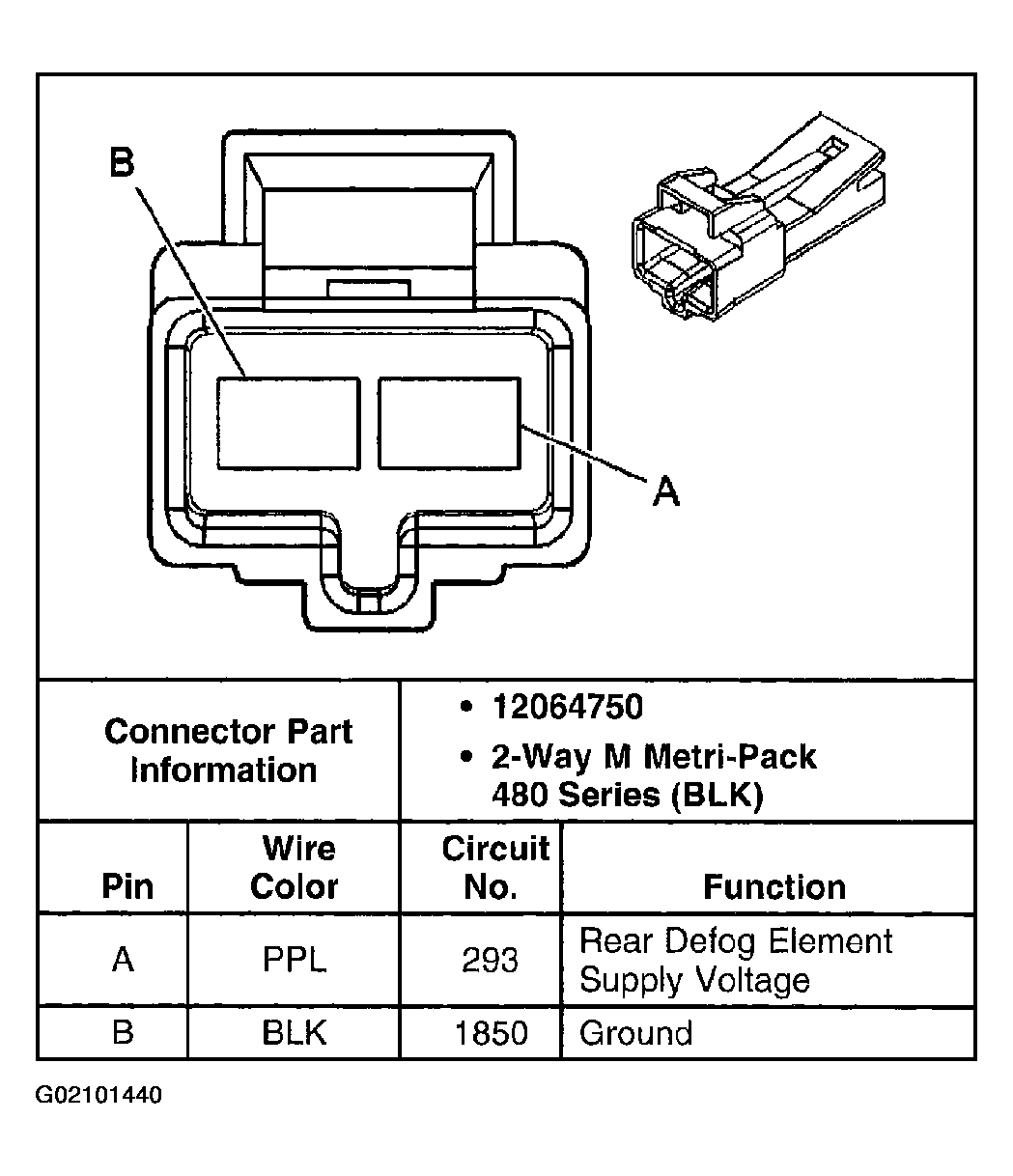

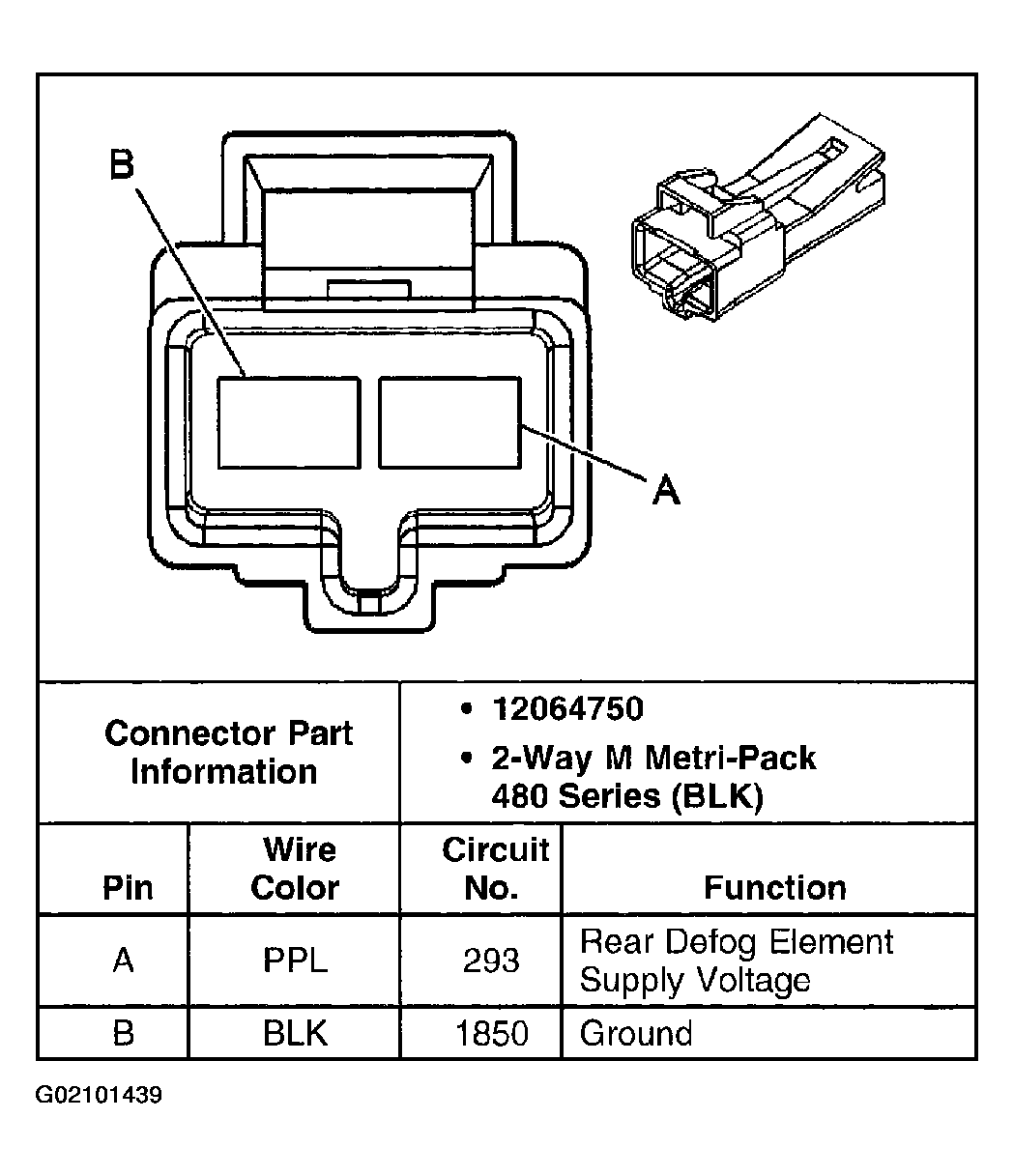

Fig 3: Identifying Rear Window Defogger Connectors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
