Installation Procedure

  1. Snap the memory seat switch (1) to the door trim panel.
  2. Connect the memory seat switch electrical connector (3).
  3. Reinstall the door panel sound deadener material (2).
  4. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR

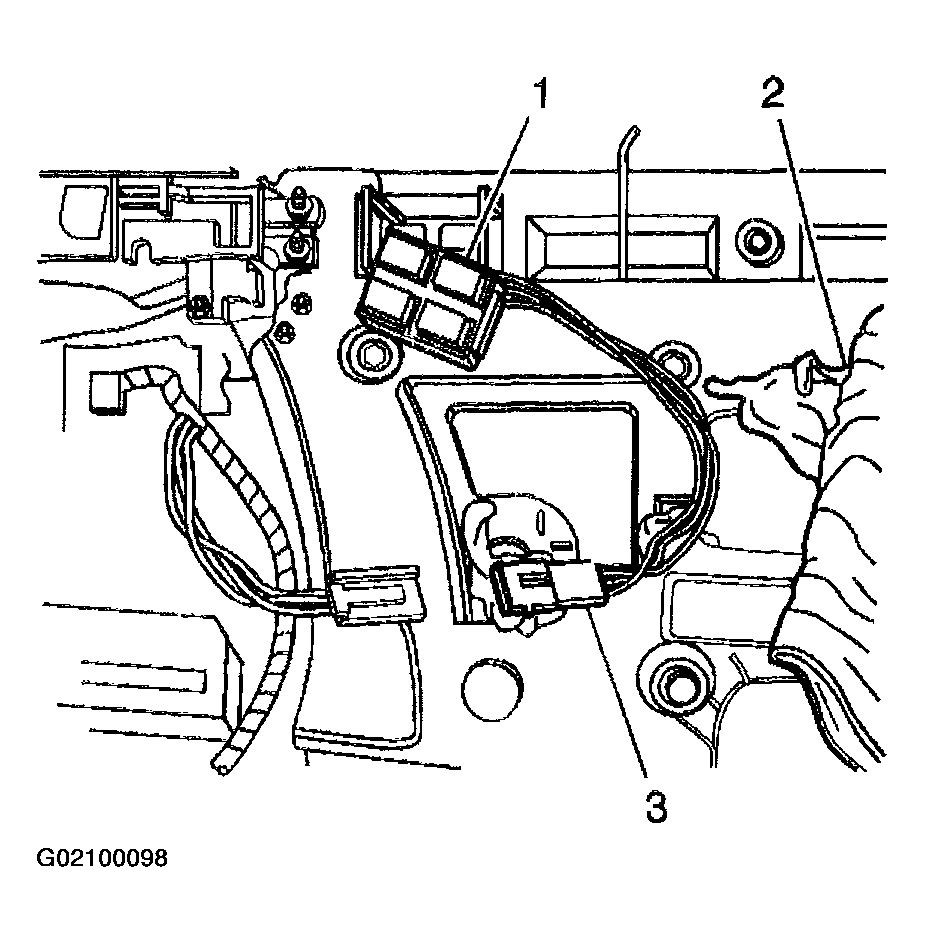

    Fig 1: Connecting Memory Seat Switch Electrical Connector
    G02100098Courtesy of GENERAL MOTORS CORP.
