Installation Procedure

  1. Install the heated seat control module (2) to the seat back.
    NOTE: Refer to FASTENER NOTICE
  2. Install the heated seat control module fasteners (1).

    Tighten

    Tighten the rear heated seat control module to 1.5 N.m (13 lb in).

  3. Connect the heated seat control module electrical connections.
  4. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR  .

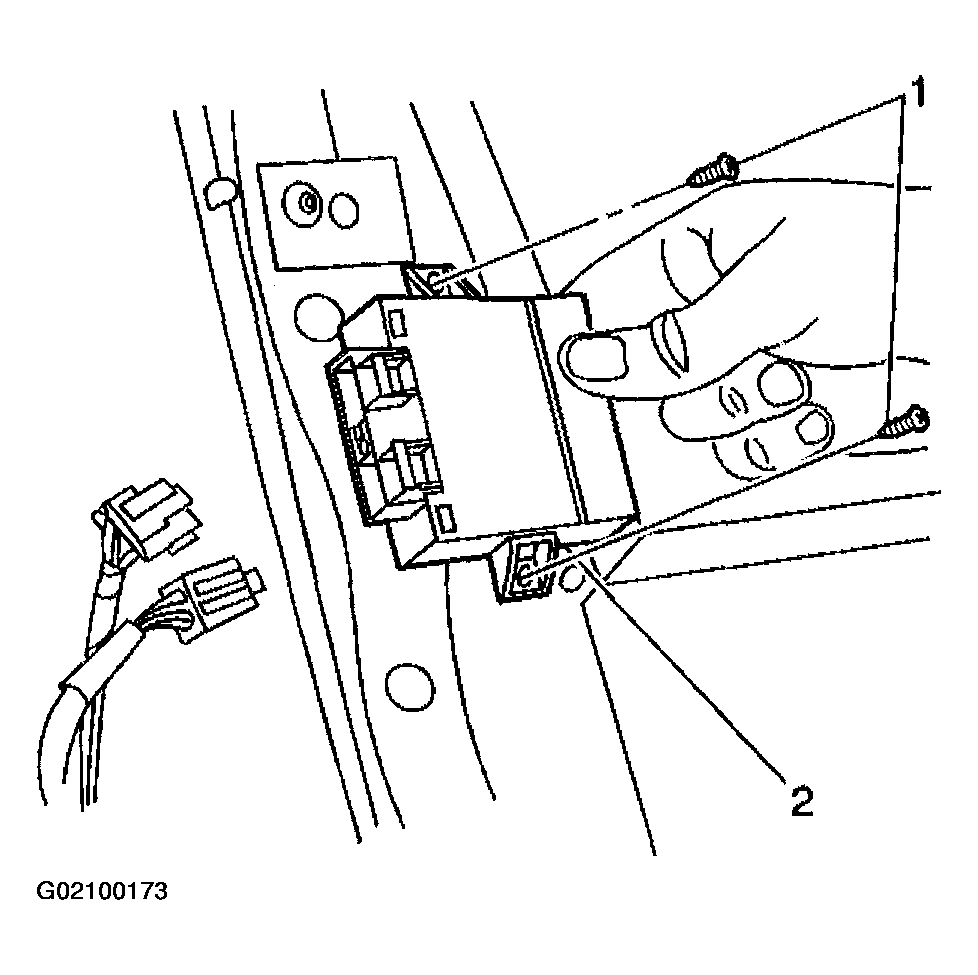

    Fig 1: Installing Heated Seat Control Module
    G02100173Courtesy of GENERAL MOTORS CORP.
