Theft Deterrent System Connector End Views

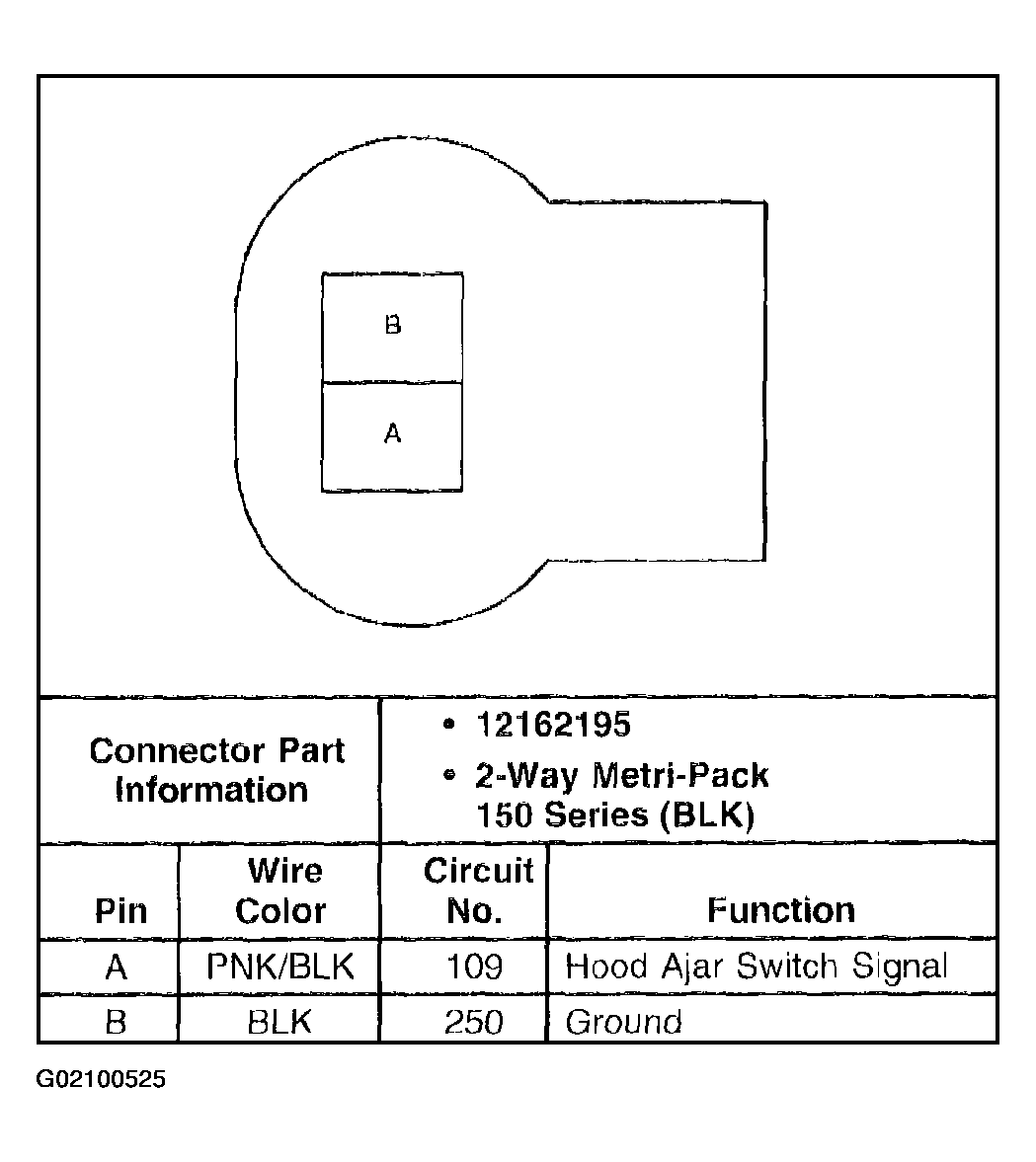

Fig 1: Identifying Hood Ajar Switch (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Rear Compartment Lid Tamper Switch Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Theft Deterrent Control Module Connector Terminal

Courtesy of GENERAL MOTORS CORP.
