Theft Deterrent System Component Views

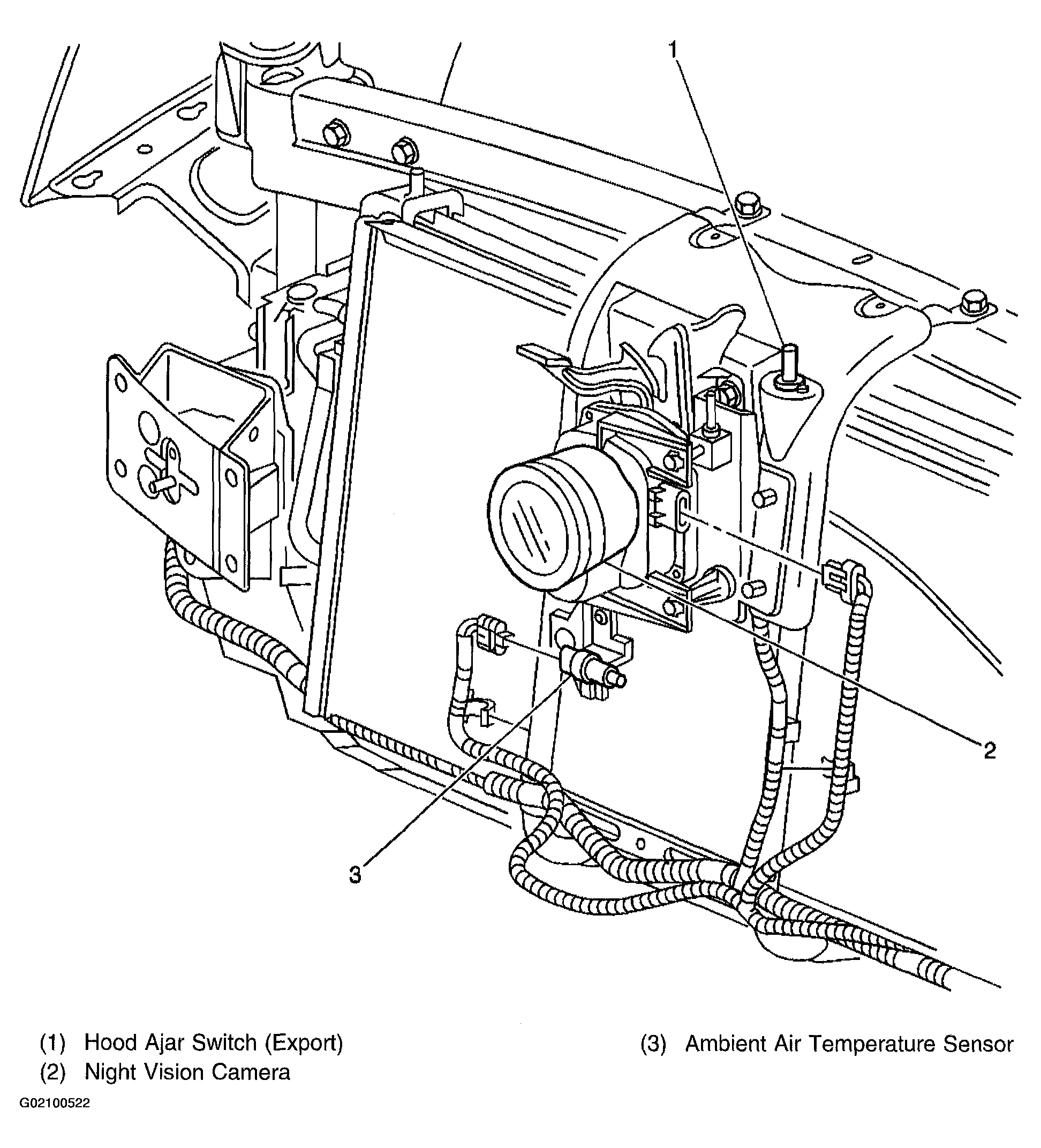

Fig 1: Locating Theft Deterrent System Components (Behind Front Grille)

Courtesy of GENERAL MOTORS CORP.

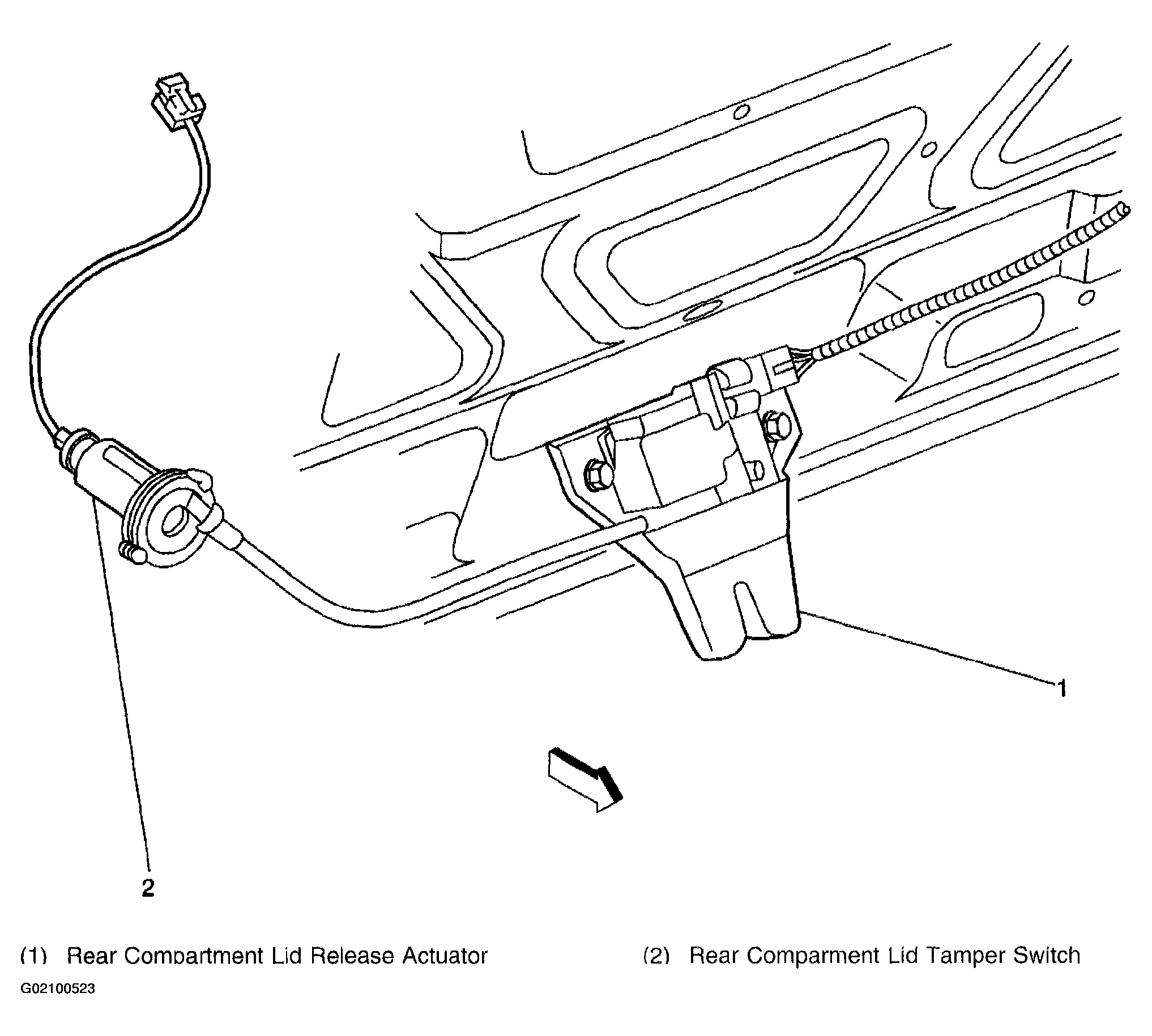

Fig 2: Identifying Center Rear Of Rear Compartment Lid Components

Courtesy of GENERAL MOTORS CORP.

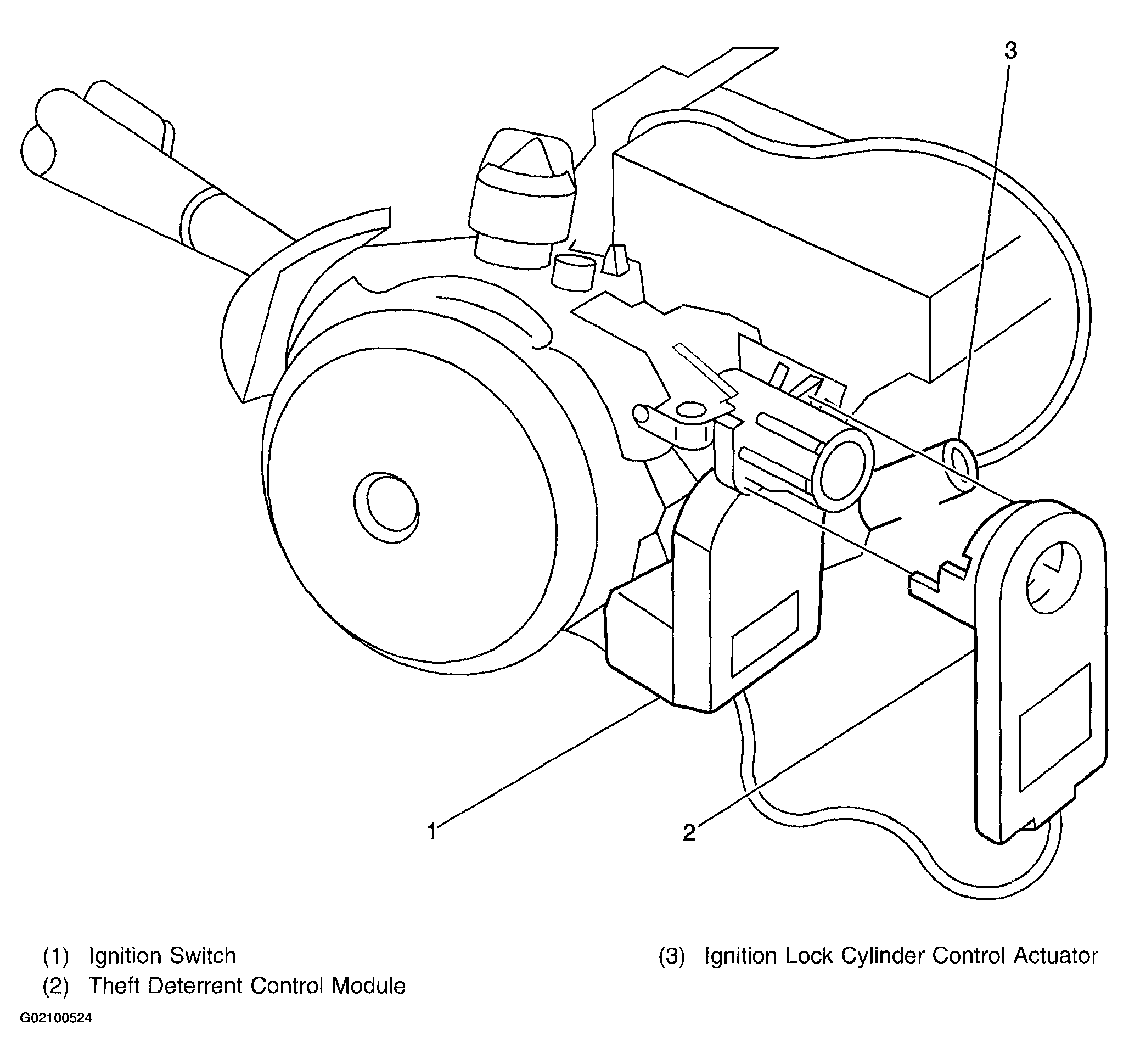

Fig 3: Identifying Left Front Of Passenger Compartment (Steering Column) Components

Courtesy of GENERAL MOTORS CORP.
