Vehicle Communication Interface Module (VCIM) Connector End View C2

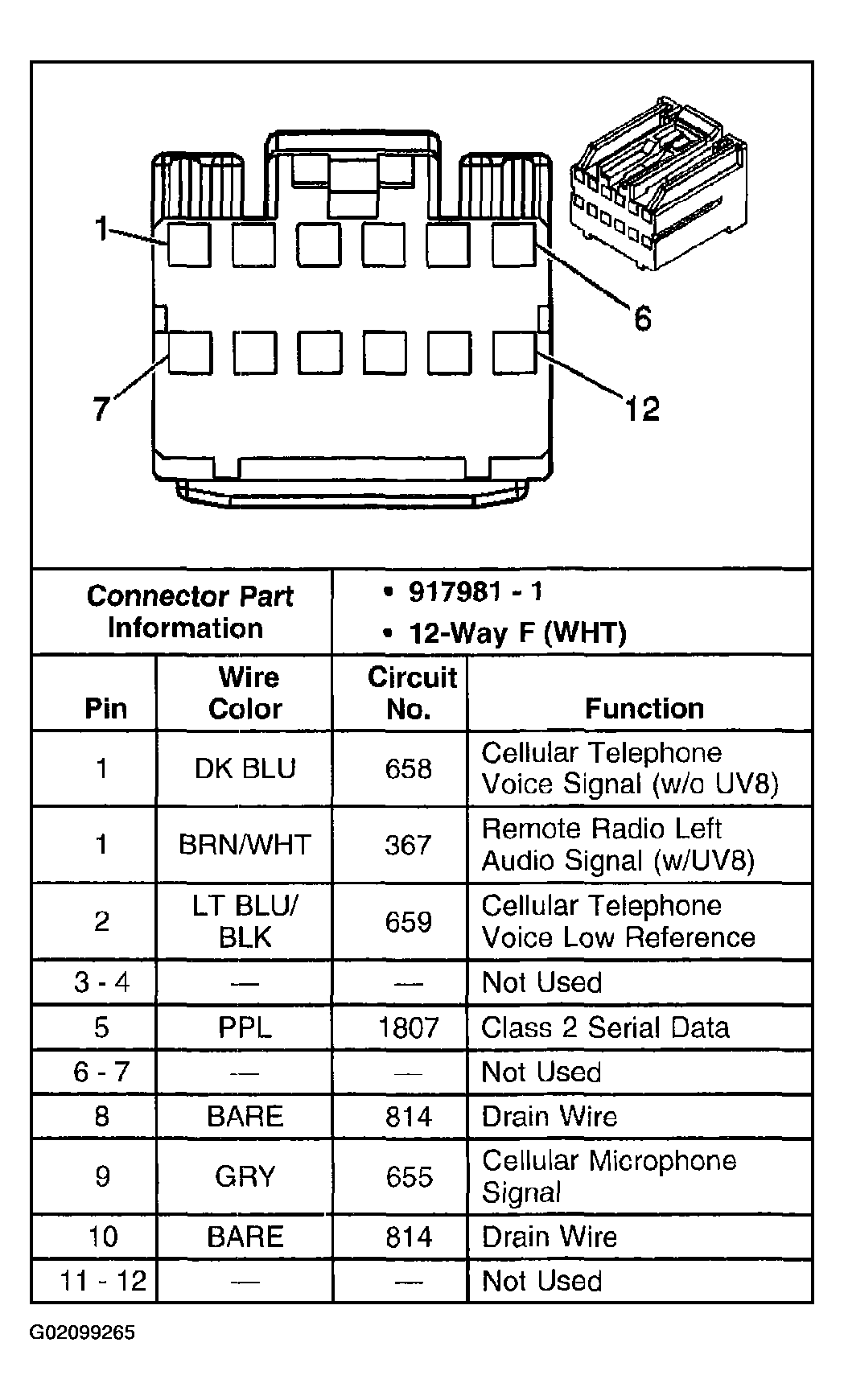

Fig 1: Vehicle Communication Interface Module (VCIM) C2

G02099265

Courtesy of GENERAL MOTORS CORP.
