Automatic Level Control Compressor Connector End View

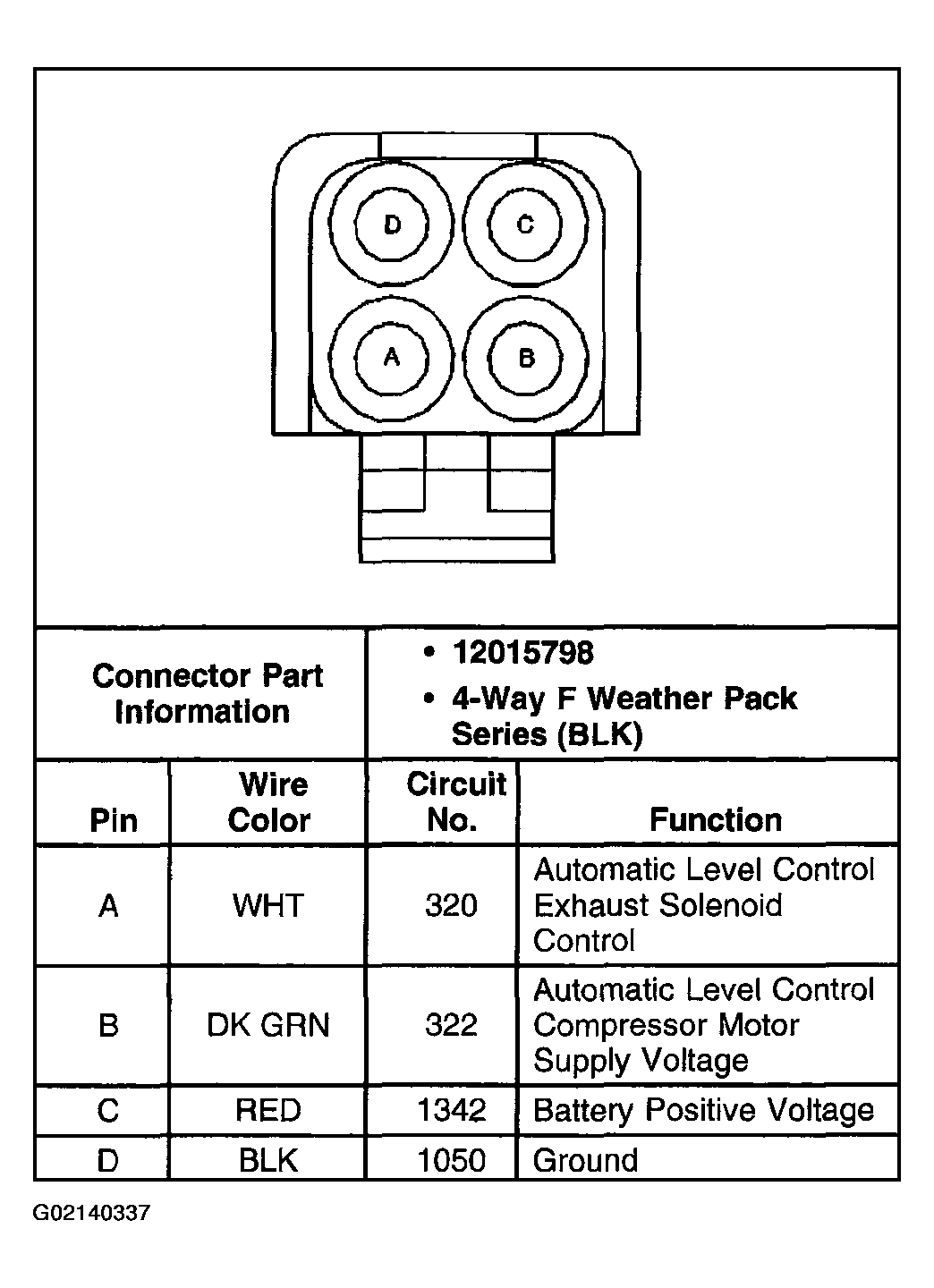

Fig 1: Automatic Level Control Compressor

G02140337

Courtesy of GENERAL MOTORS CORP.
