Installation Procedure

Connect the electrical connectors to the sunroof control module.

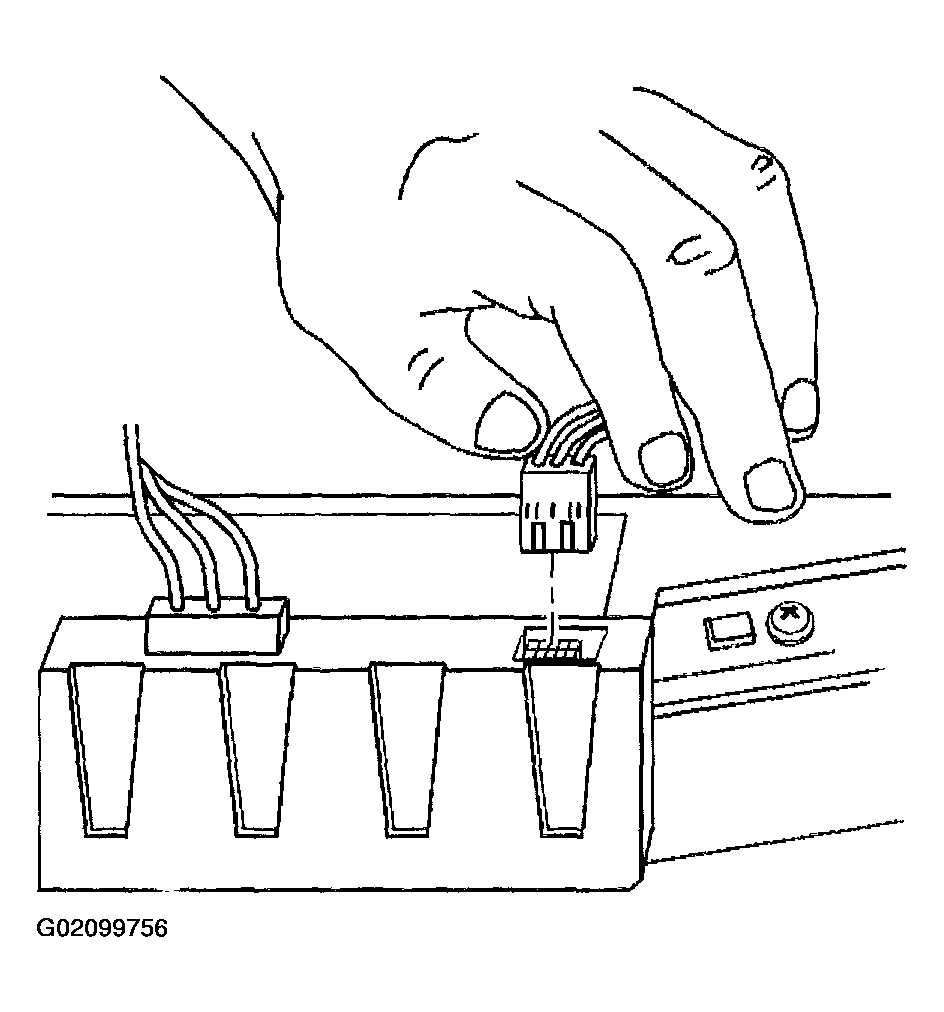

Fig 1: Connecting Electrical Connectors To Sunroof Control Module
Courtesy of GENERAL MOTORS CORP.
Install the sunroof control module tabs (2) into the slots (3) located on the sunroof module assembly.
Slide the sunroof control module (1) away from the sunroof motor/actuator until the sunroof control module is fully engaged to the sunroof module assembly.
Important: Test the proper operation of the sunroof functions before installing the interior trim components.
Reposition the headliner to the center and rearward roof magnets.

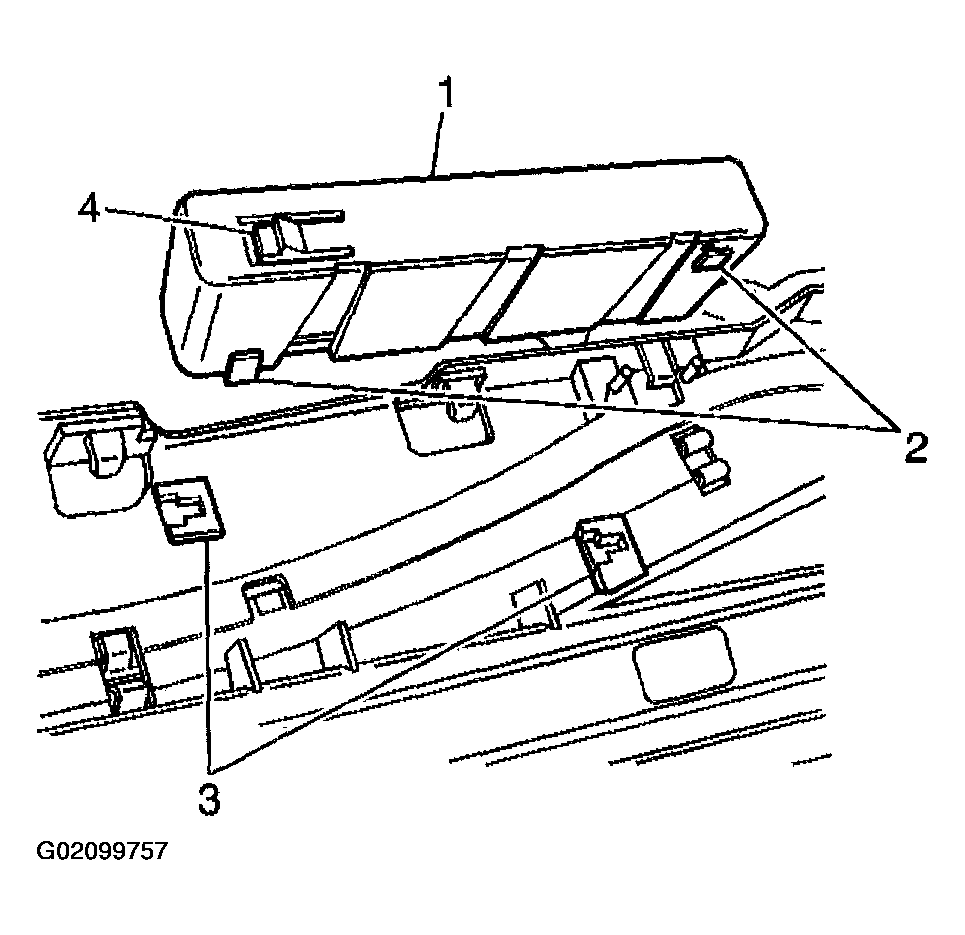

Fig 2: Installing Sunroof Control Module
Courtesy of GENERAL MOTORS CORP.
Install the passenger side sail panel. Refer to SAIL PANEL REPLACEMENT

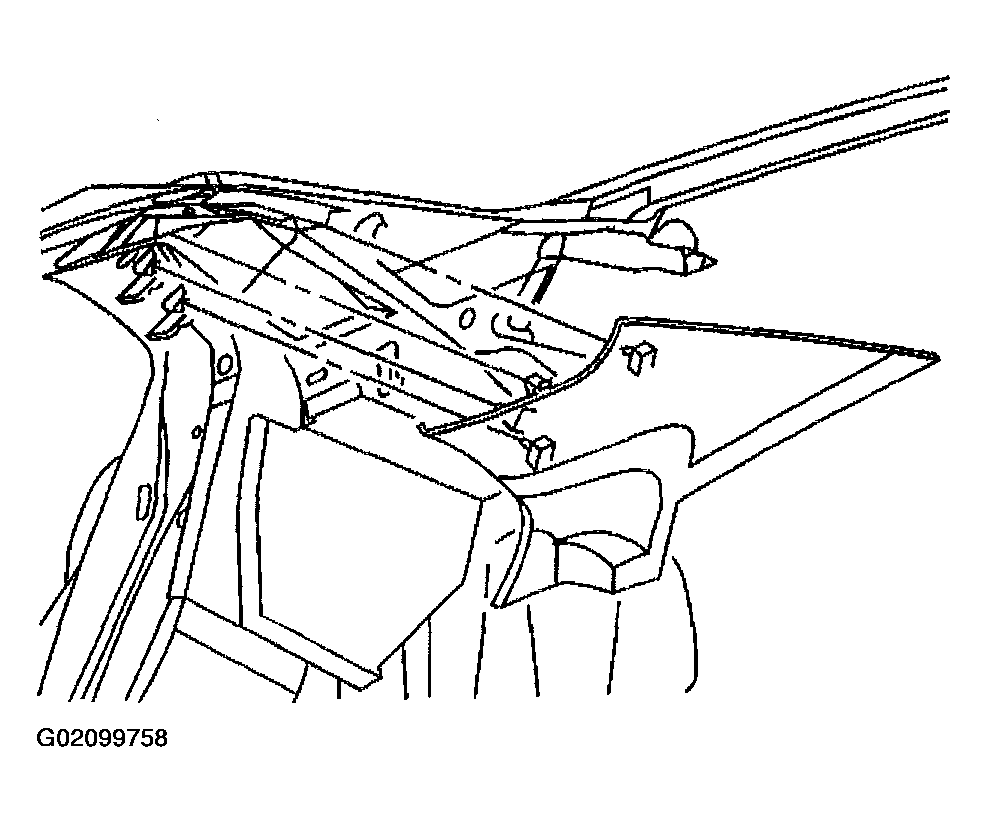

Fig 3: Installing Passenger Side Sail Panel
Courtesy of GENERAL MOTORS CORP.
Install the passenger side rear seat belt retractor (4). Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR

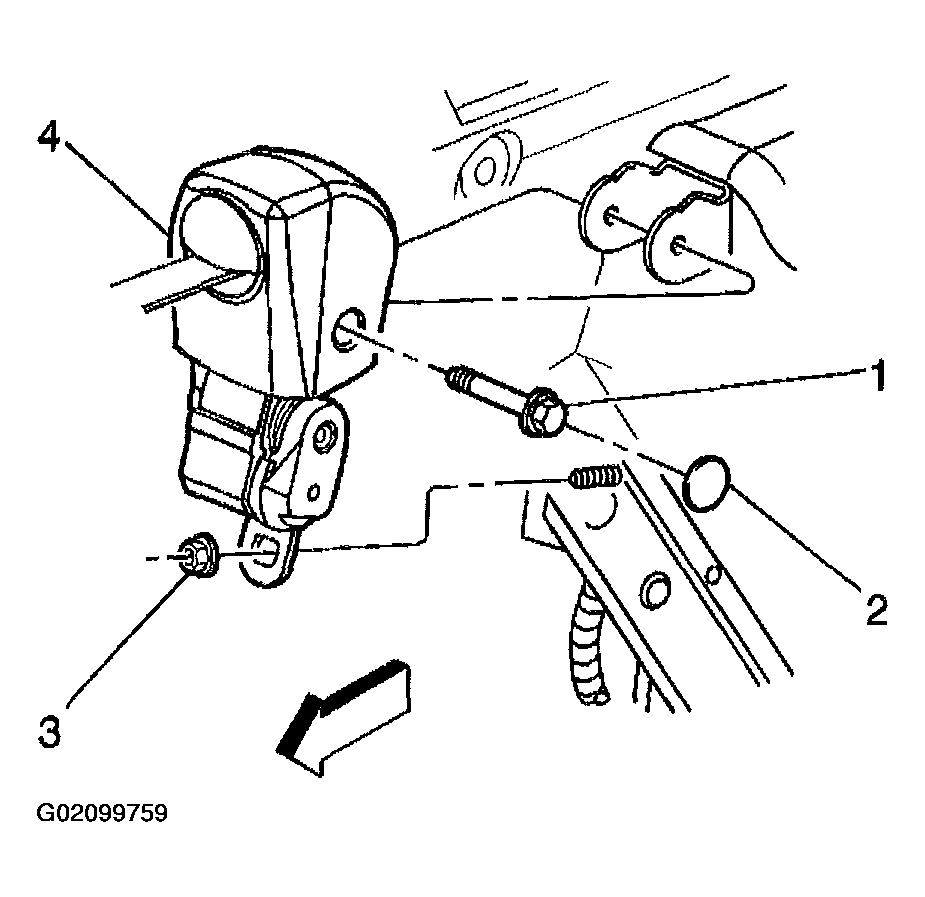

Fig 4: Installing Passenger Side Rear Seat Belt Retractor
Courtesy of GENERAL MOTORS CORP.
Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR

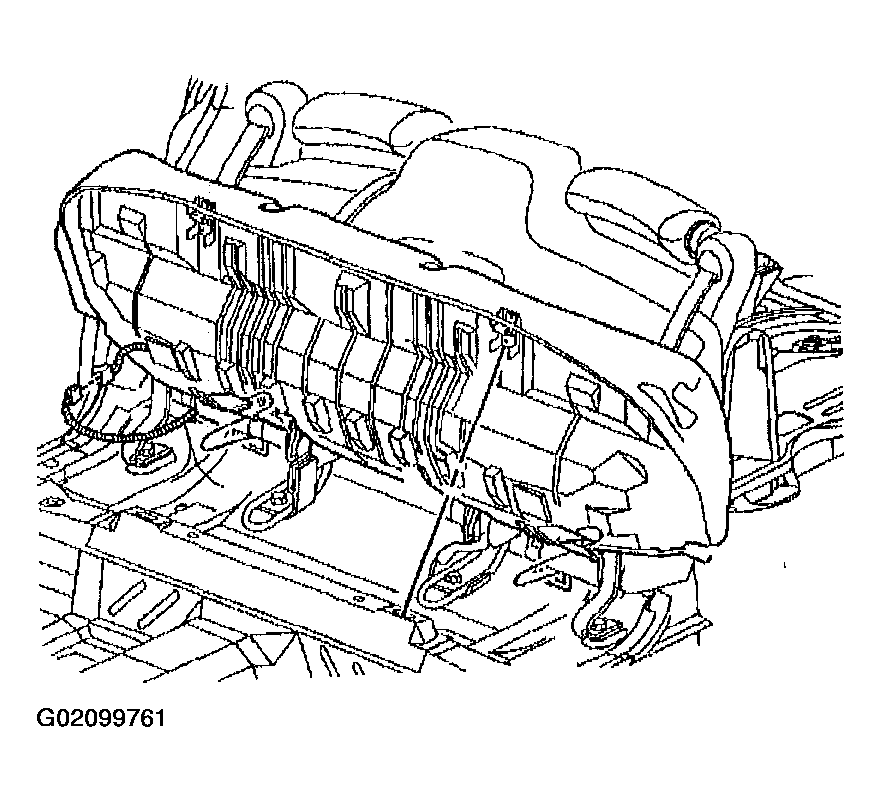

Fig 5: Installing Rear Seat Back
Courtesy of GENERAL MOTORS CORP.
Install the rear seat cushion. Refer SEAT CUSHION REPLACEMENT - REAR to in Seats.

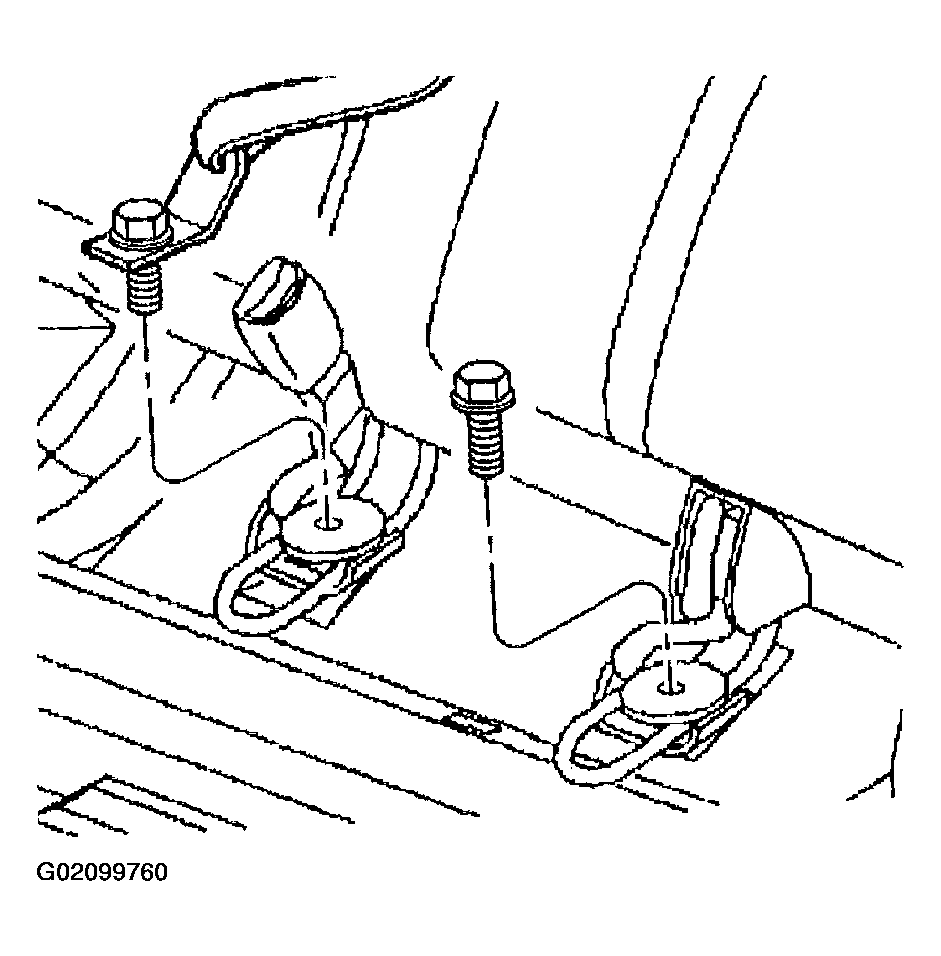

Fig 6: Installing Rear Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Align the upper center trim panel retainer, push inward in order to secure.
Reposition the passenger rear door opening weatherstrip seal.

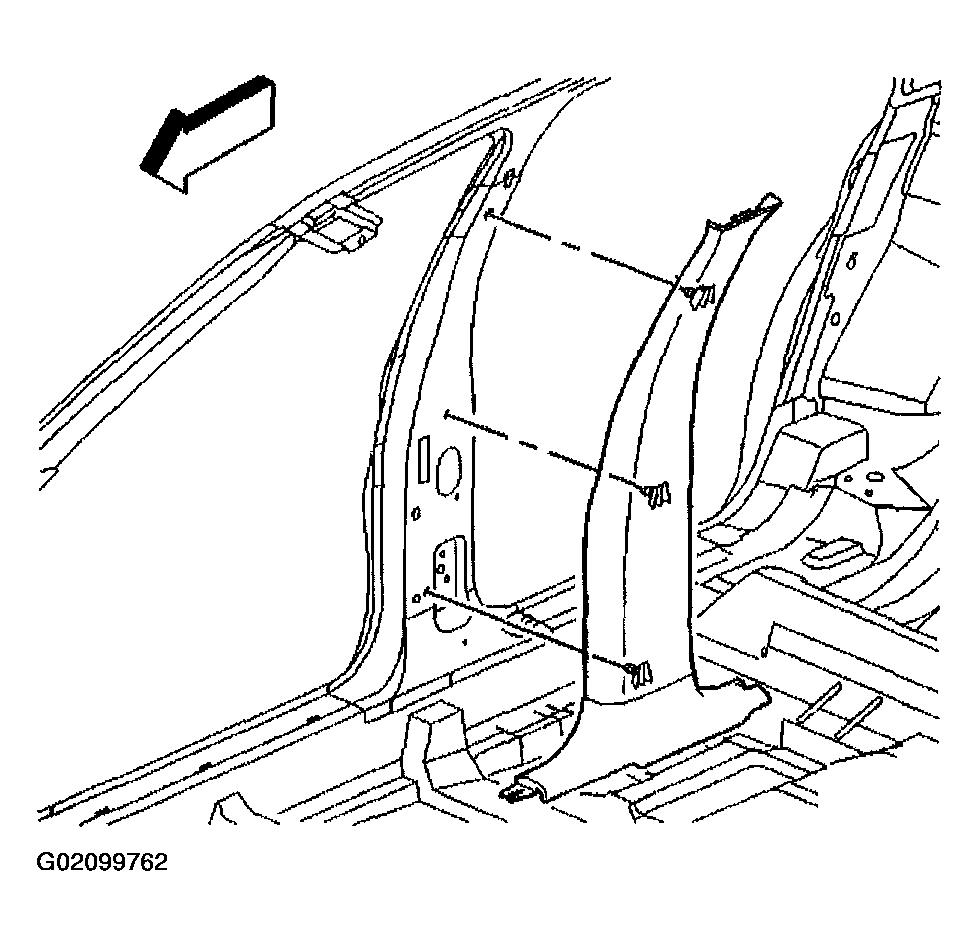

Fig 7: Aligning Upper Center Trim Panel Retainer
Courtesy of GENERAL MOTORS CORP.
Install the passenger side rear assist handle. Refer to ASSIST HANDLE REPLACEMENT
Enable the SIR system. Refer to DISABLING SYSTEM
Close the passenger rear door.

Fig 8: Installing Passenger Side Rear Assist Handle
Courtesy of GENERAL MOTORS CORP.
