Installation Procedure

  1. Install the theft deterrent control module (2) onto the ignition lock cylinder case assembly (1).
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .
  2. Connect the connector to the theft deterrent control module.
  3. If necessary, connect the connector to the ignition lock cylinder case.
  4. Install the lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT in Steering Wheel and Column.
  5. Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (POWER TILT) or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL TILT) in Steering Wheel and Column.
  6. Enable the SIR system. Refer to ZONE 3 .
  7. Program the theft deterrent control module. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS

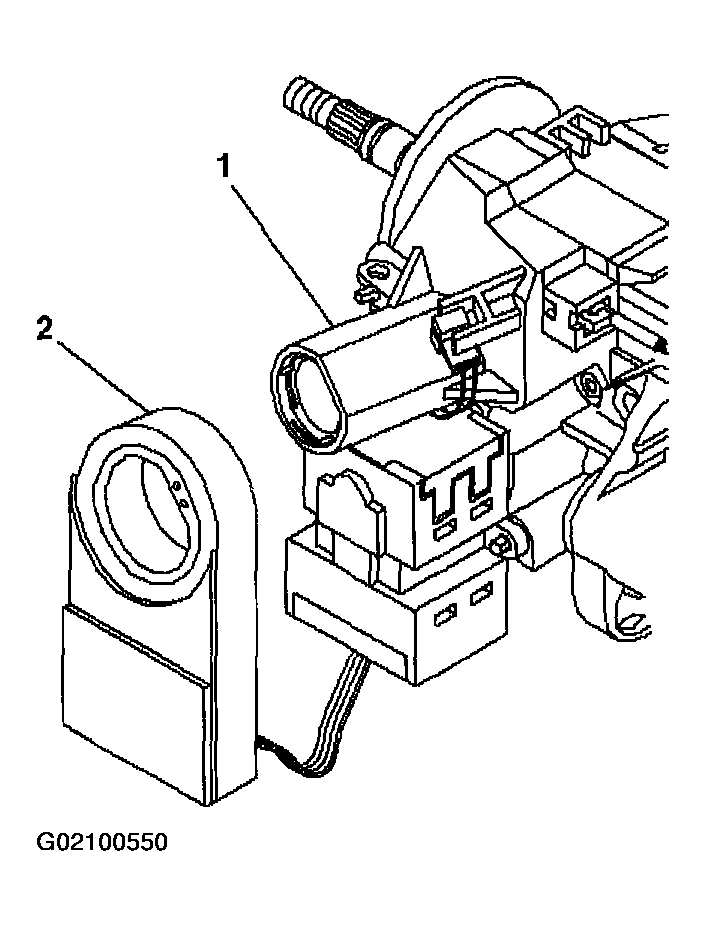

    Fig 1: Installing Theft Deterrent Control Module Onto Ignition Lock Cylinder Case Assembly
    G02100550Courtesy of GENERAL MOTORS CORP.
