Installation Procedure

  1. Install the DIM module to the bracket.
  2. Slide the DIM module upward until the DIM module and the locking tab are fully engaged.

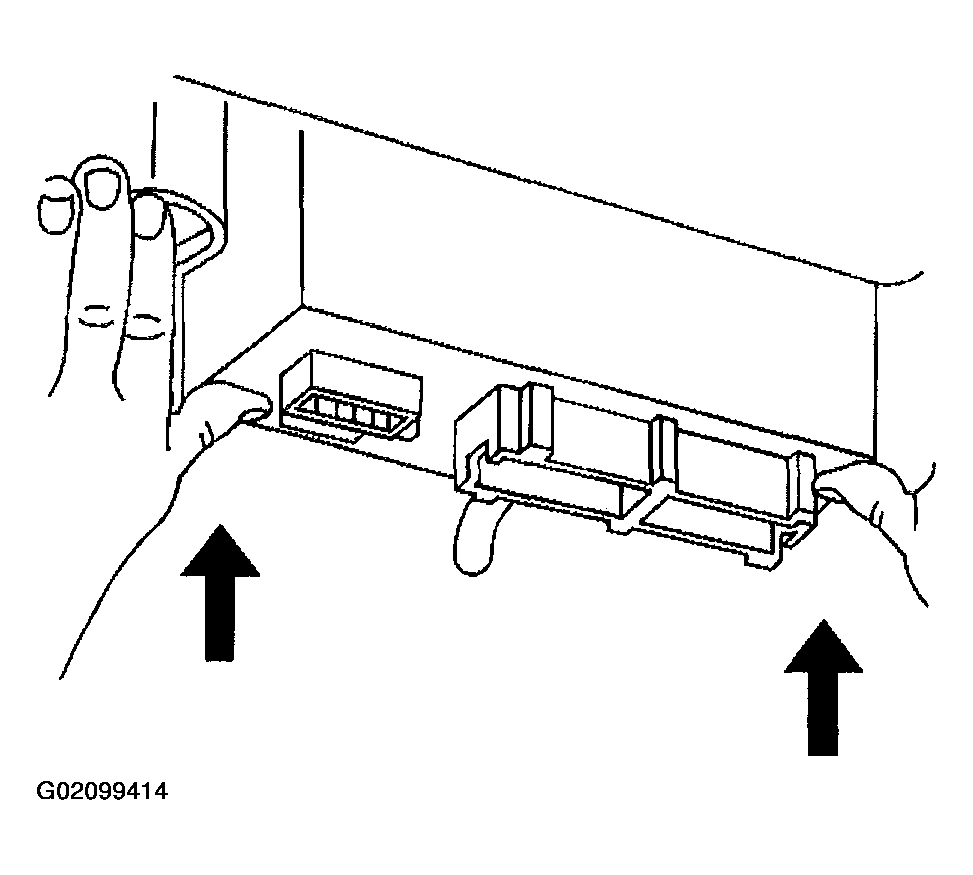

    Fig 1: Installing DIM Module To Bracket
    G02099414Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM module electrical connectors (2).
  4. Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT
  5. Reprogram the DIM module (1). Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)  or BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (DIM)  .

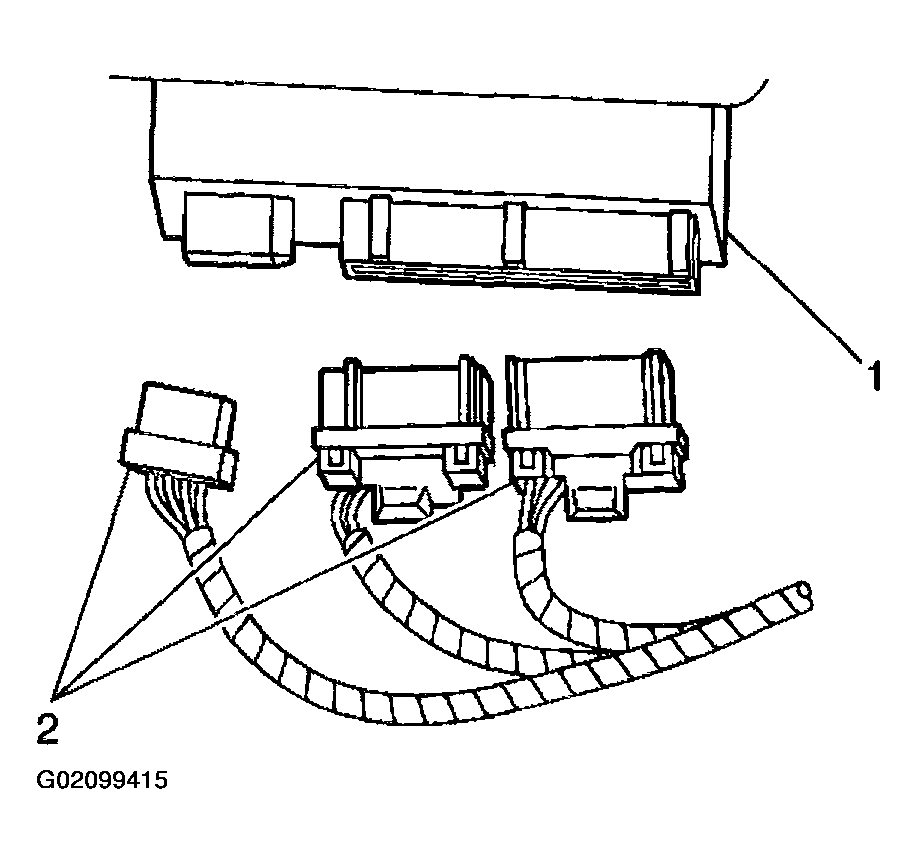

    Fig 2: Connecting DIM Module Electrical Connectors
    G02099415Courtesy of GENERAL MOTORS CORP.
