Control Module References

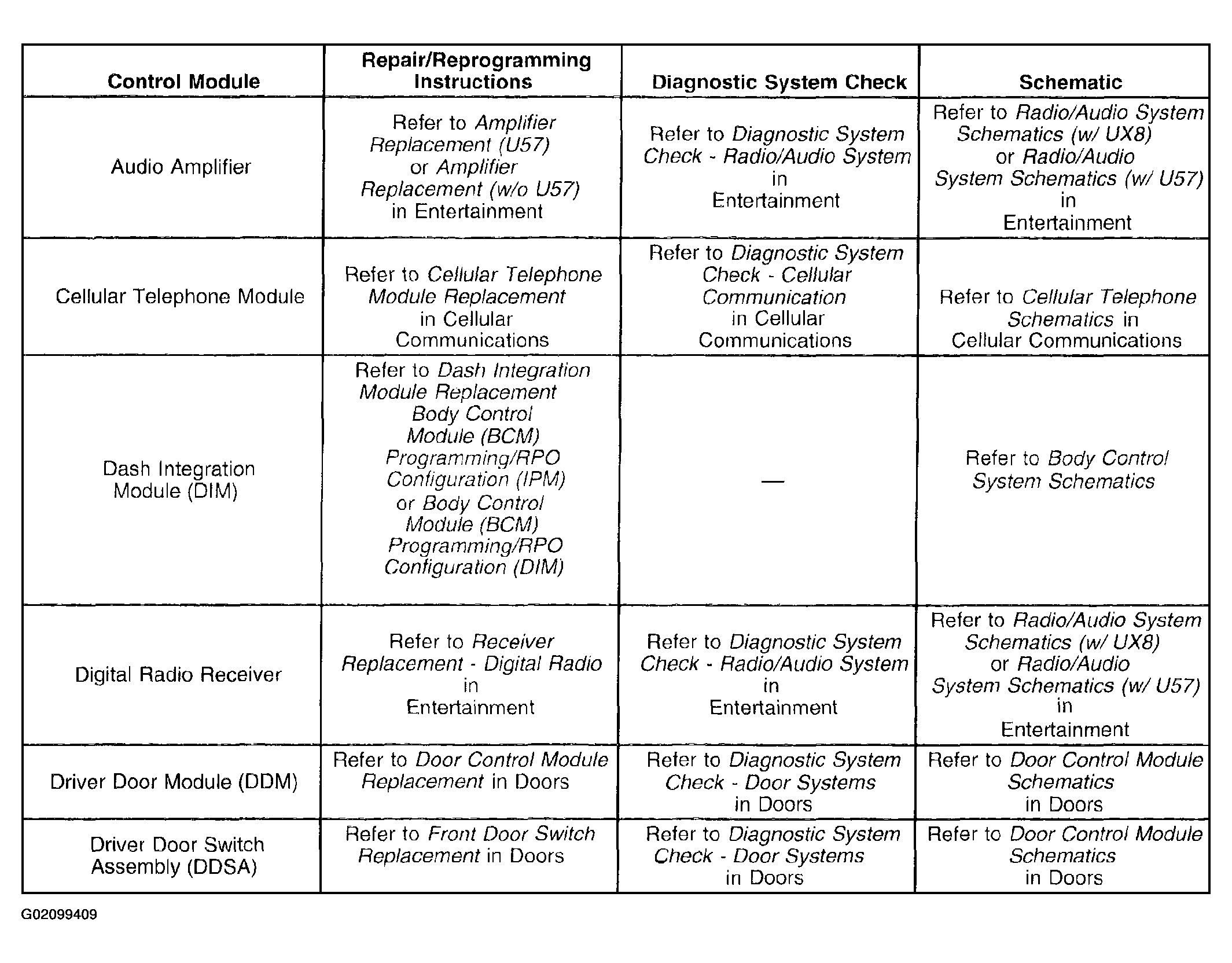

Fig 1: Control Module References (1 Of 3)
G02099409Courtesy of GENERAL MOTORS CORP.

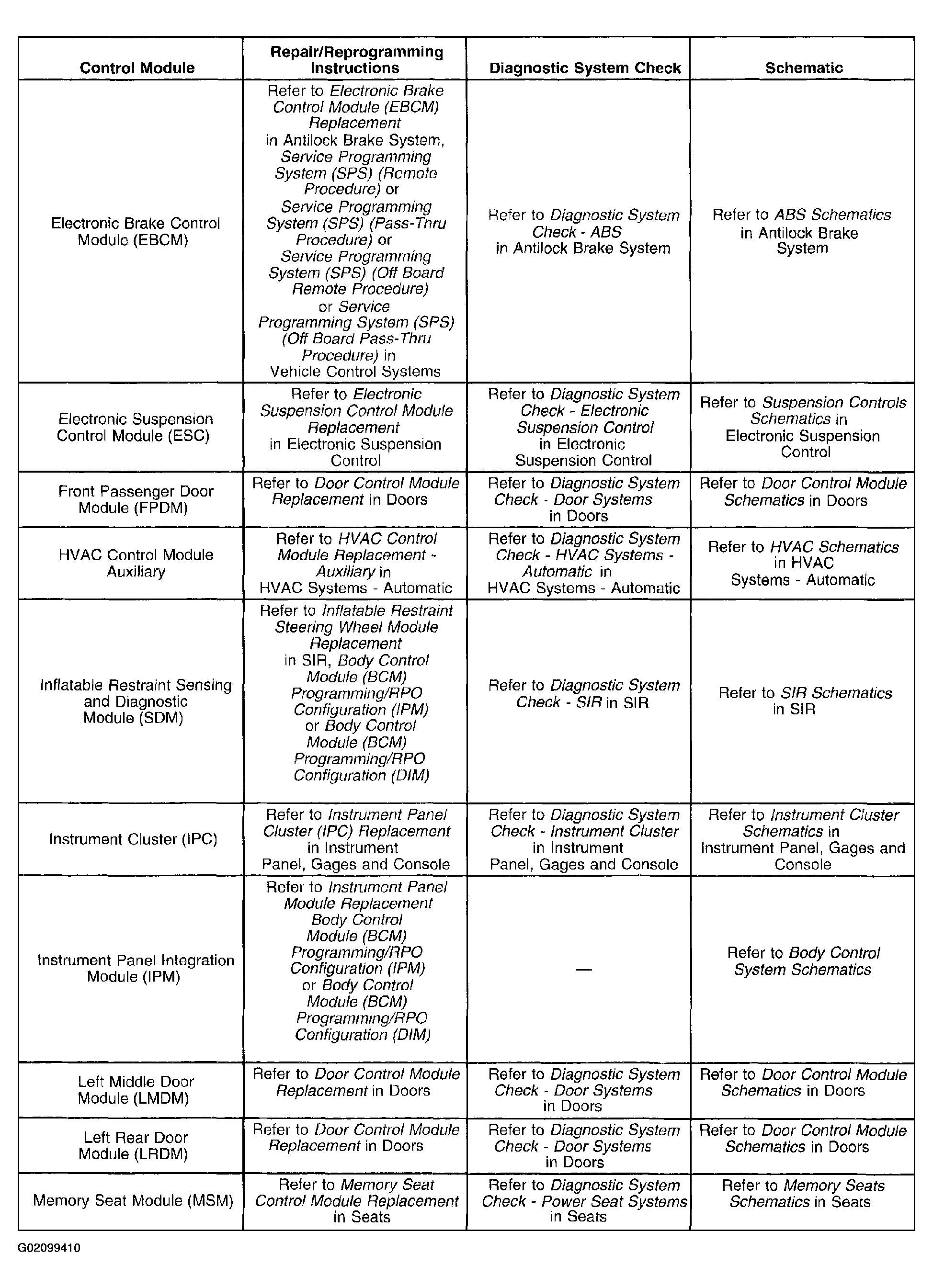

Fig 2: Control Module References (2 Of 3)
G02099410Courtesy of GENERAL MOTORS CORP.

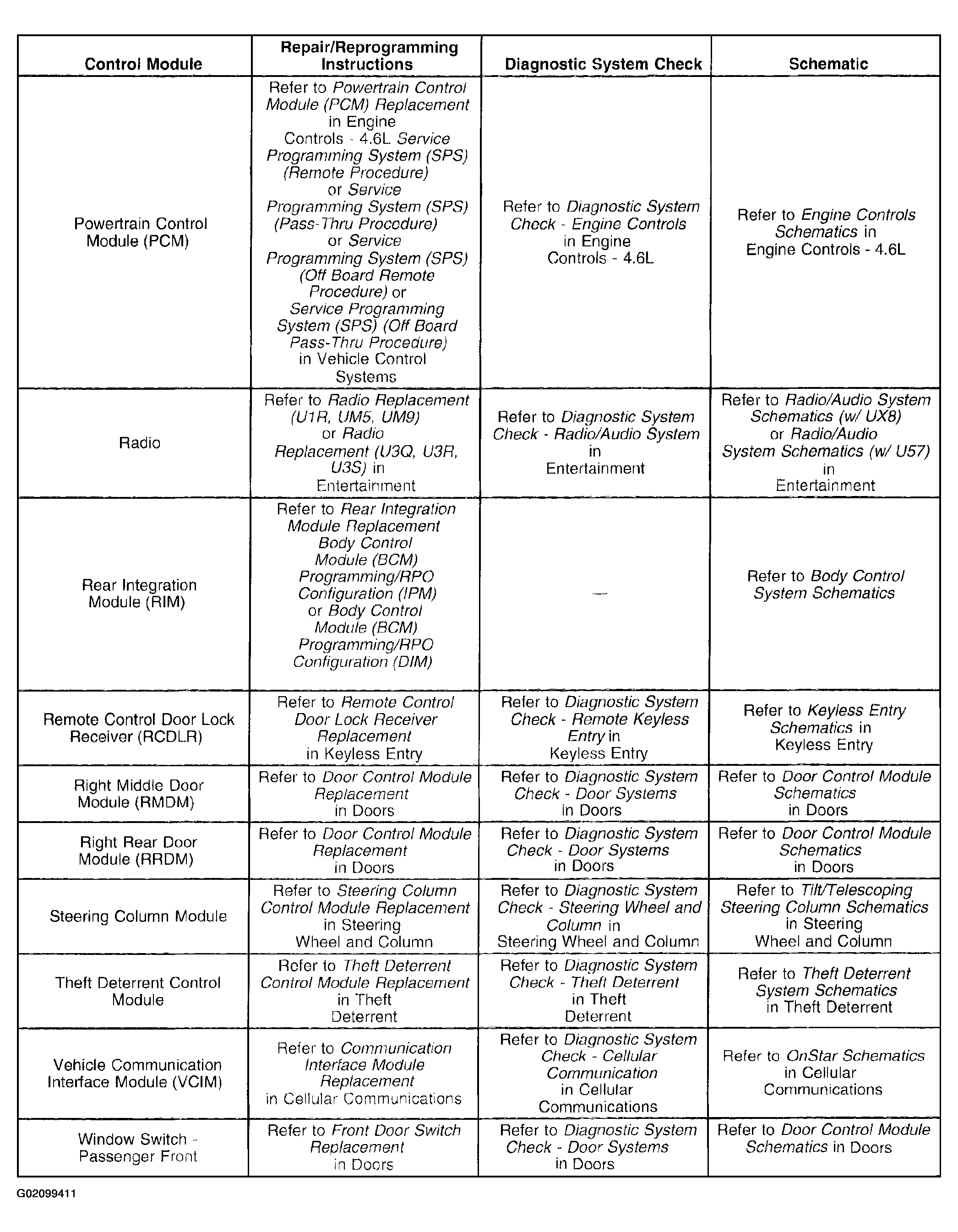

Fig 3: Control Module References (3 Of 3)
G02099411Courtesy of GENERAL MOTORS CORP.
