Checking Fluid Levels

  1. Raise and suitably support the vehicle.
  2. Clean any dirt from around fluid fill plug (1). See Fig 1 or Fig 2 .
  3. Remove transmission fluid fill plug and washer.
  4. Check that transmission fluid level is even with bottom of fill plug hole. See Fig 3 .
  5. Add appropriate transmission fluid, if necessary. See RECOMMENDED FLUIDS  .
  6. Install transmission fluid fill plug and washer (1). See Fig 1 or Fig 2 . Tighten to specification. See TORQUE SPECIFICATIONS  .
  7. Lower the vehicle.

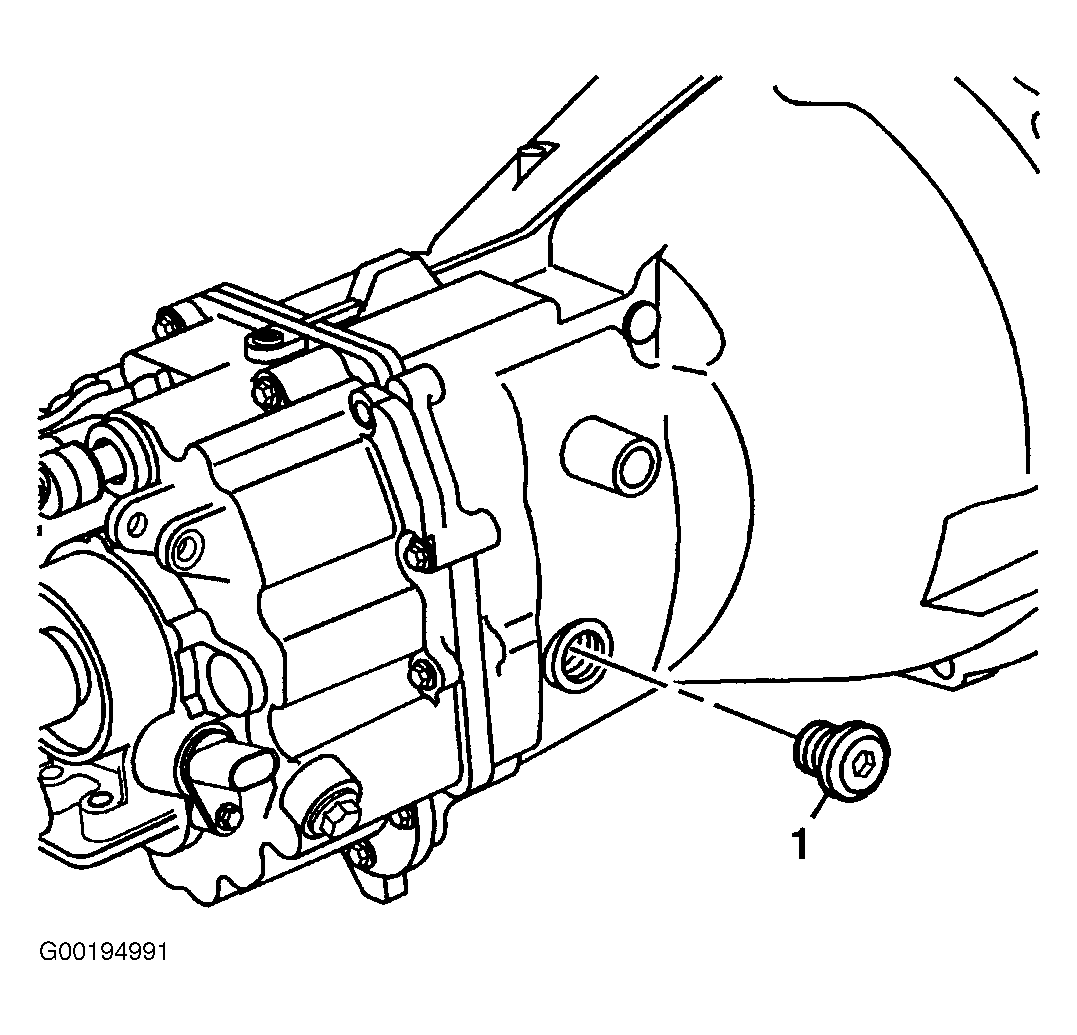

Fig 1: Locating Transmission Fluid Fill Plug (5-Speed)
G00194991Courtesy of GENERAL MOTORS CORP.

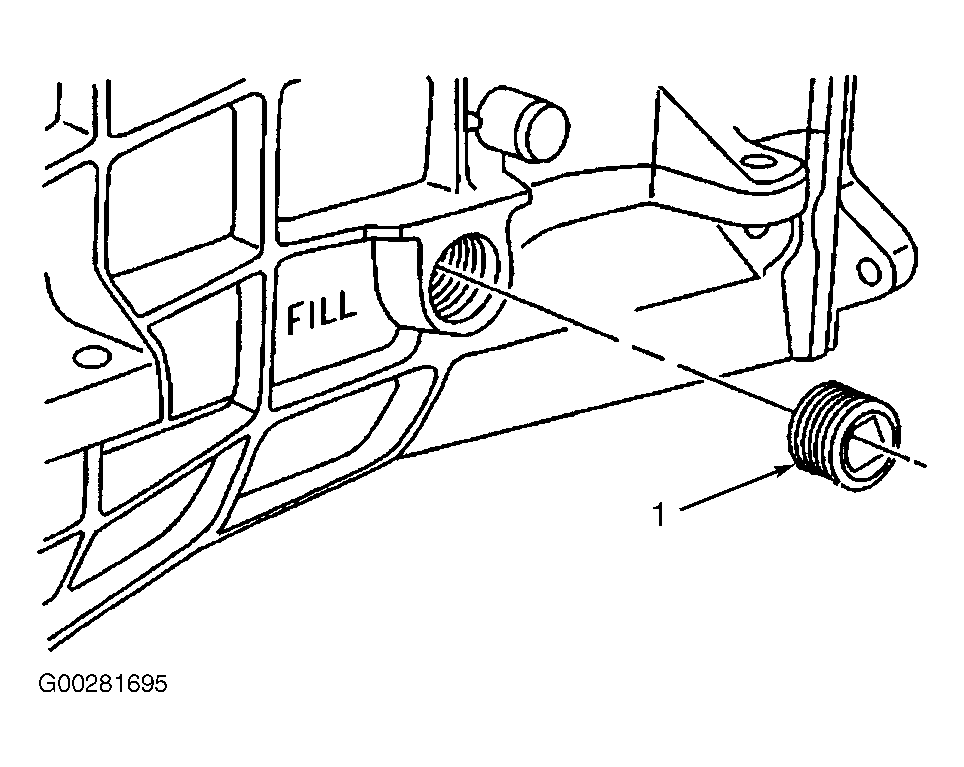

Fig 2: Locating Transmission Fluid Fill Plug (6-Speed)
G00281695Courtesy of GENERAL MOTORS CORP.
Fig 3: Checking Transmission Fluid Level
G00194992Courtesy of GENERAL MOTORS CORP.
