Rear Toe Adjustment

Important:  Complete the left and right rear toe adjustments separately, per wheel. Using the following procedure.

1. Loosen the adjustment link jam nuts (1).
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. In order to adjust the toe, rotate the turnbuckle (2).

   Tighten

   Tighten the jam nuts to 75 N.m (55 lb ft).

3. Recheck the toe setting after tightening.
4. Readjust the toe setting if necessary. Refer to WHEEL ALIGNMENT SPECIFICATIONS .

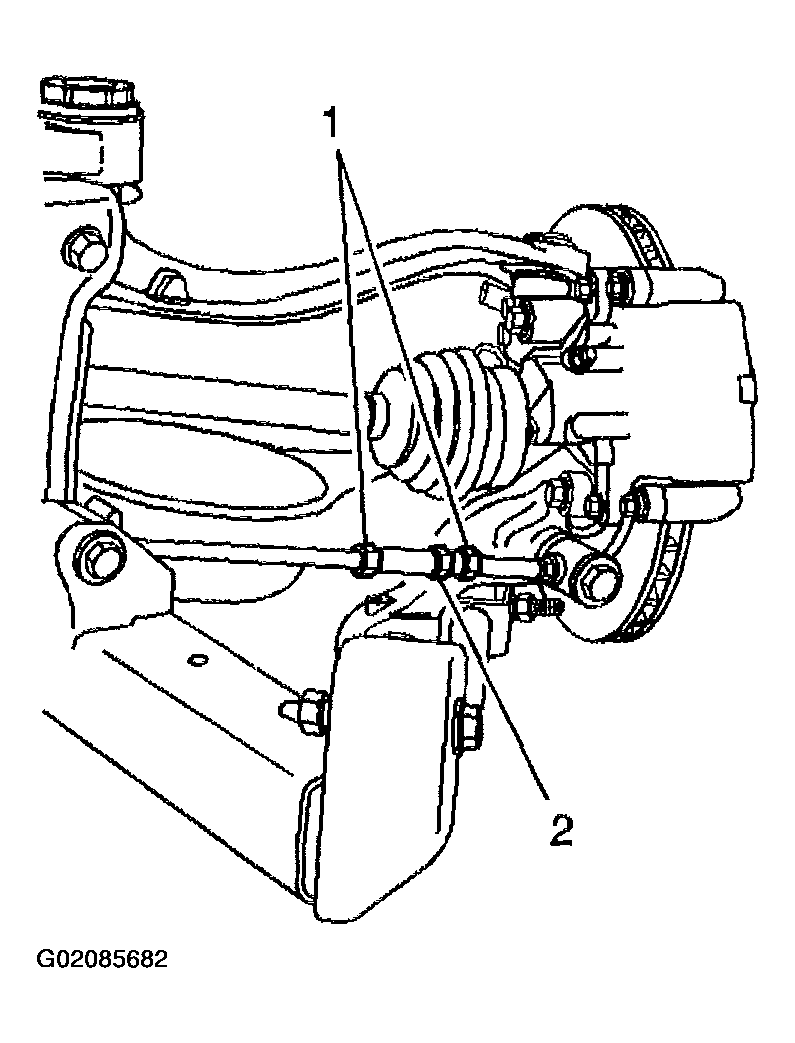

   Fig 1: Adjusting Link Jam Nuts

   Courtesy of GENERAL MOTORS CORP.
