Steering Controls Connector End Views

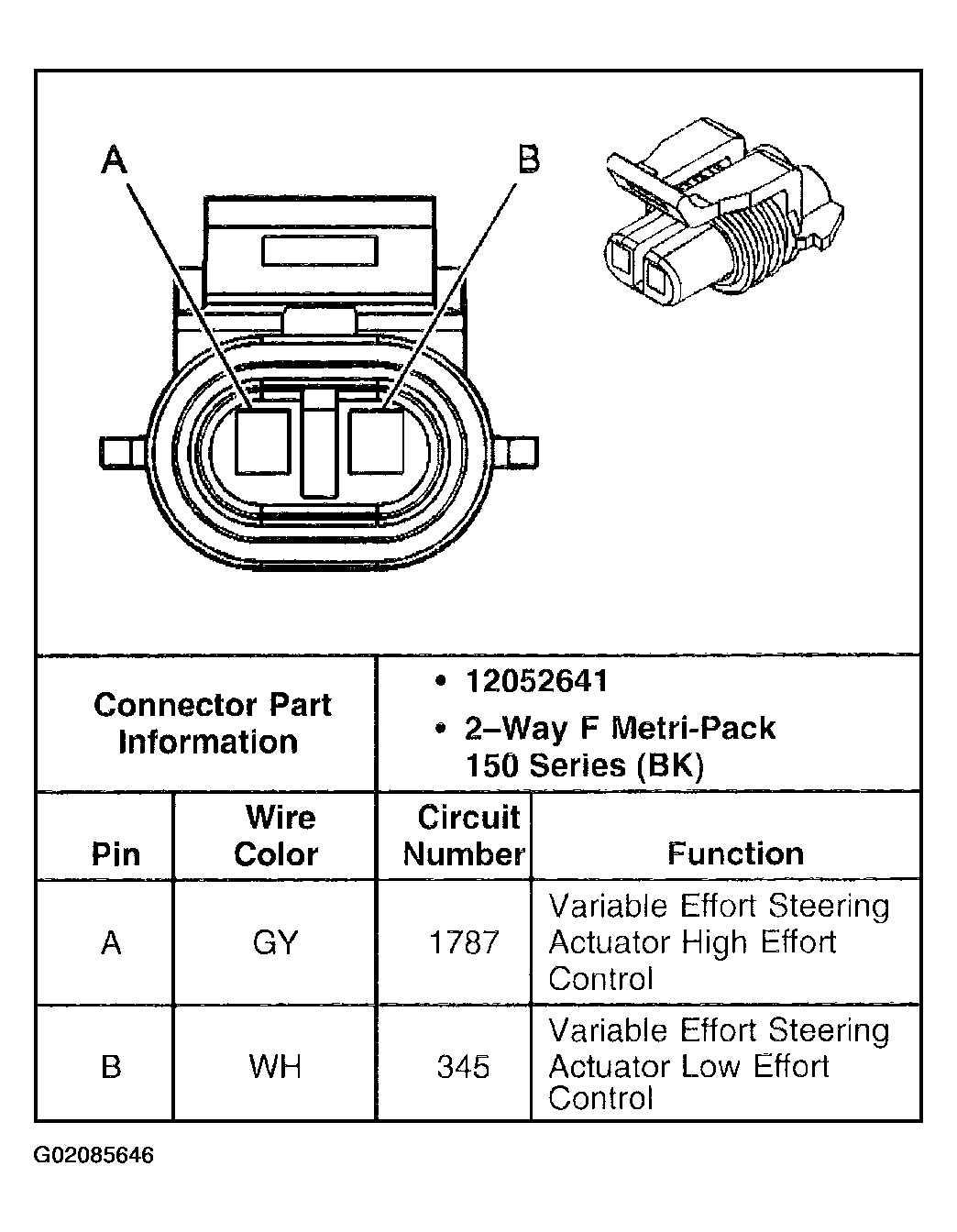

Fig 1: Identifying Variable Effort Steering Actuator Connector

G02085646

Courtesy of GENERAL MOTORS CORP.
