Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

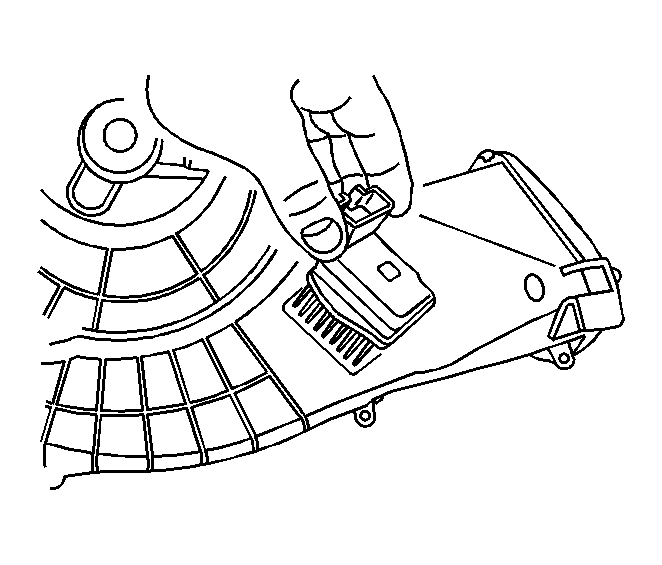

Fig 1: Installing Blower Motor Control Processor

Courtesy of GENERAL MOTORS CORP.

Install the blower motor control processor.

NOTE: Refer to Fastener Notice in Cautions and Notices.

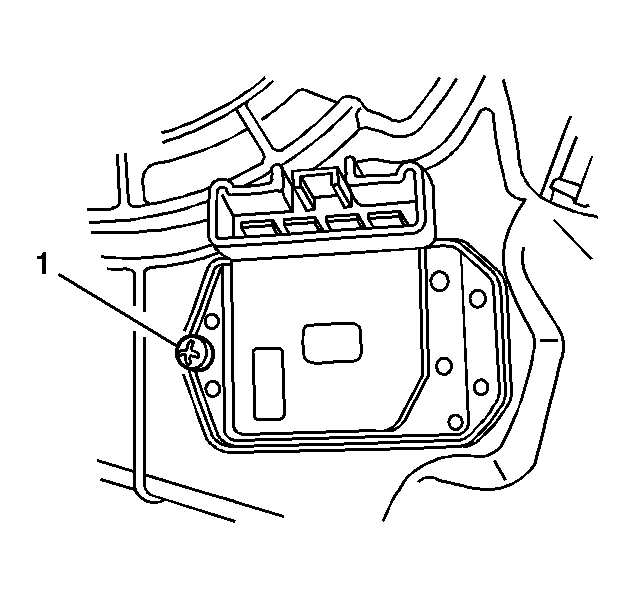

Fig 2: Installing Blower Motor Control Processor Retaining Screw

Courtesy of GENERAL MOTORS CORP.

Install the blower motor control processor retaining screw (1).
Tighten: Tighten the screw to 1 N.m (9 lb in).

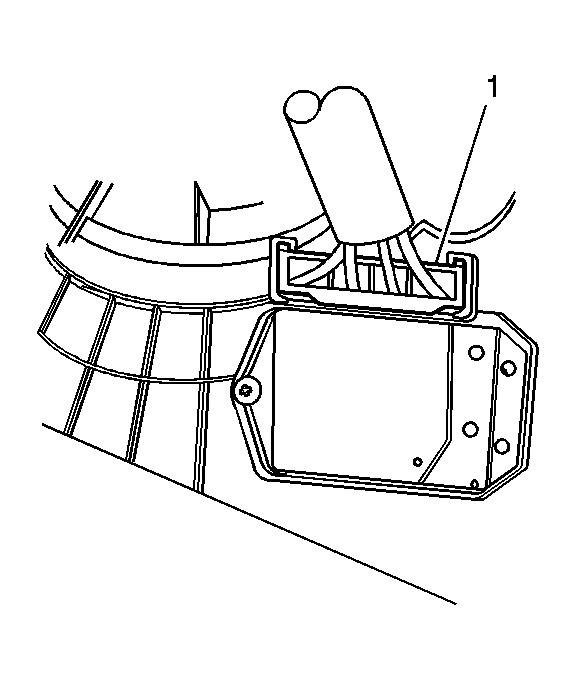

Fig 3: Connecting Electrical Connectors To Blower Motor Control Processor

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors (1) to the blower motor control processor.
Install the left closeout panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages, and Console.
