Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount bracket to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the engine mount bracket retaining nuts.

    Tighten

    Tighten the nuts to 45 N.m (33 lb ft).

  3. Lower the engine.

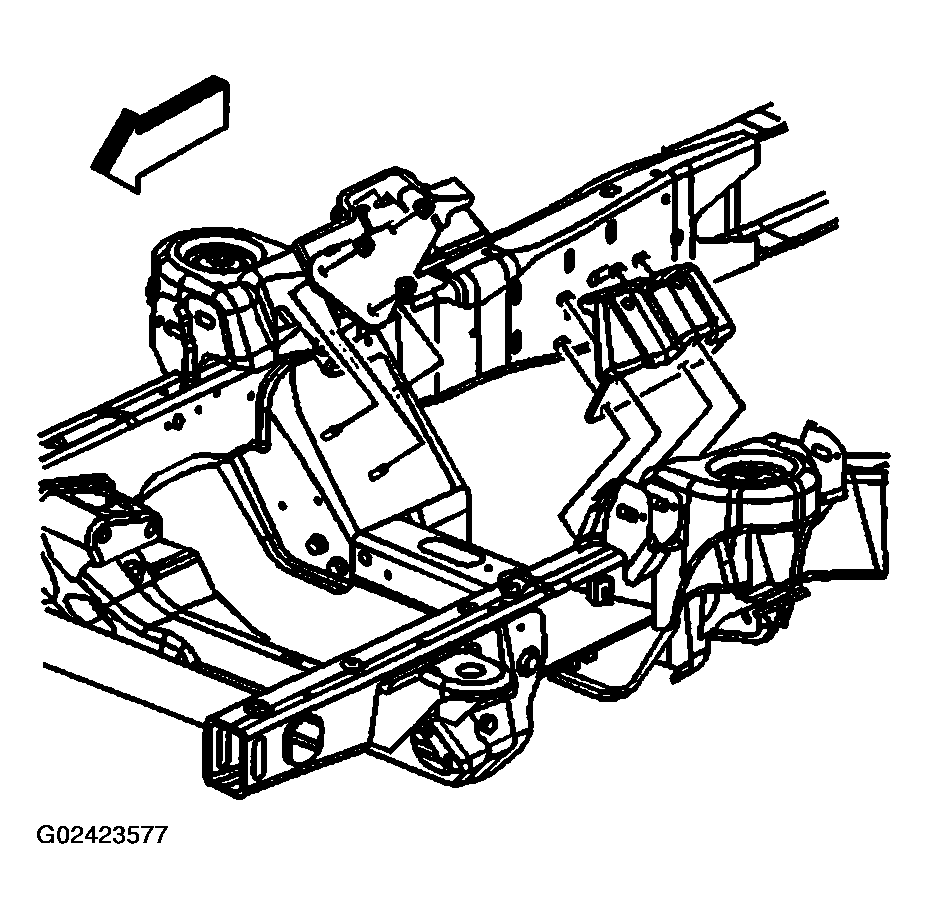

    Fig 1: Installing Engine Mount Bracket - Left
    G02423577Courtesy of GENERAL MOTORS CORP.
  4. Install the engine mount to engine mount bracket bolts.

    Tighten

    Tighten the bolts to 60 N.m (44 lb ft).

  5. Lower the vehicle.

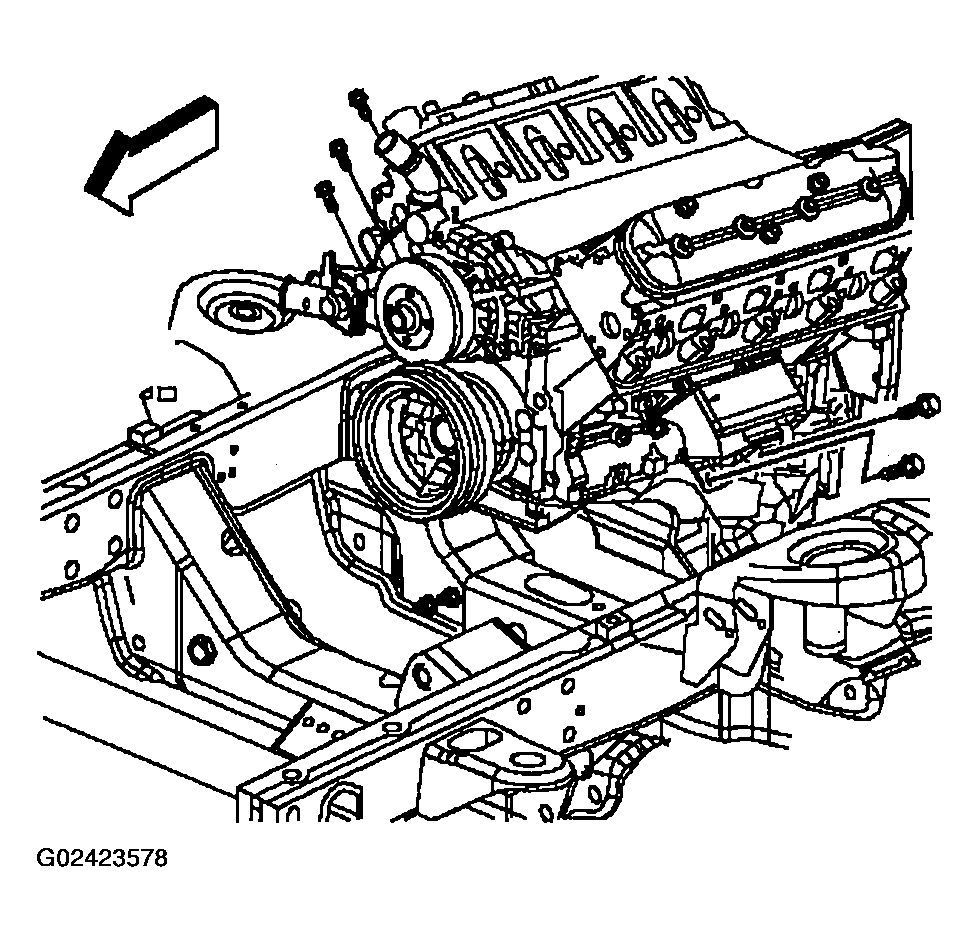

    Fig 2: Installing Engine Mount To Engine Mount Bracket Bolts
    G02423578Courtesy of GENERAL MOTORS CORP.
