Diagnostic Procedures

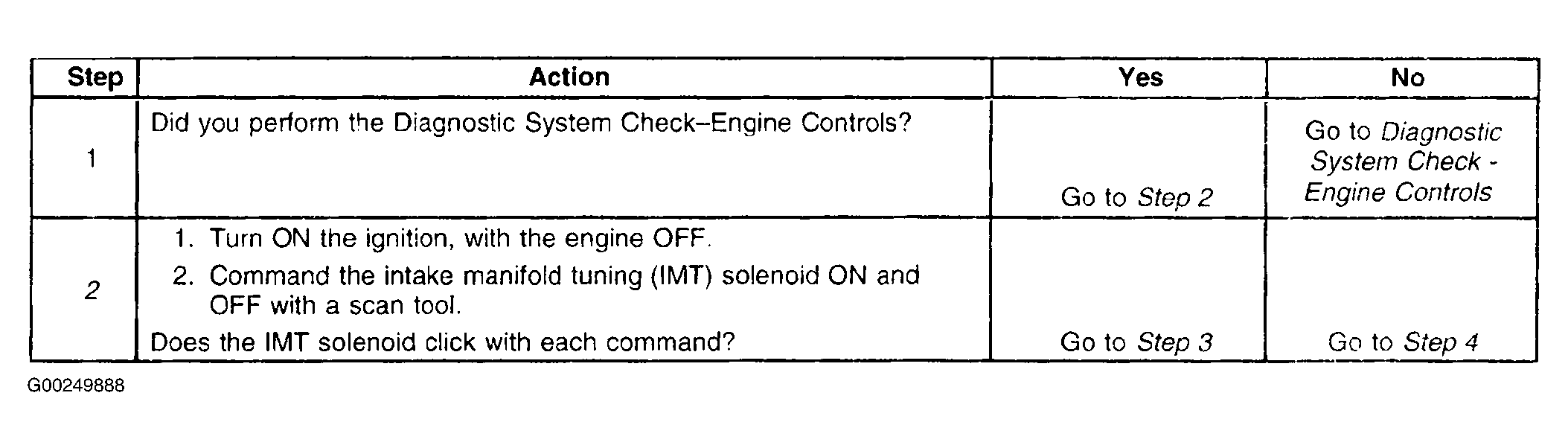

Fig 1: DTC P0660: Intake Manifold Tuning Valve Control Circuit Malfunction (Steps 1 & 2)
G00249884Courtesy of GENERAL MOTORS CORP.

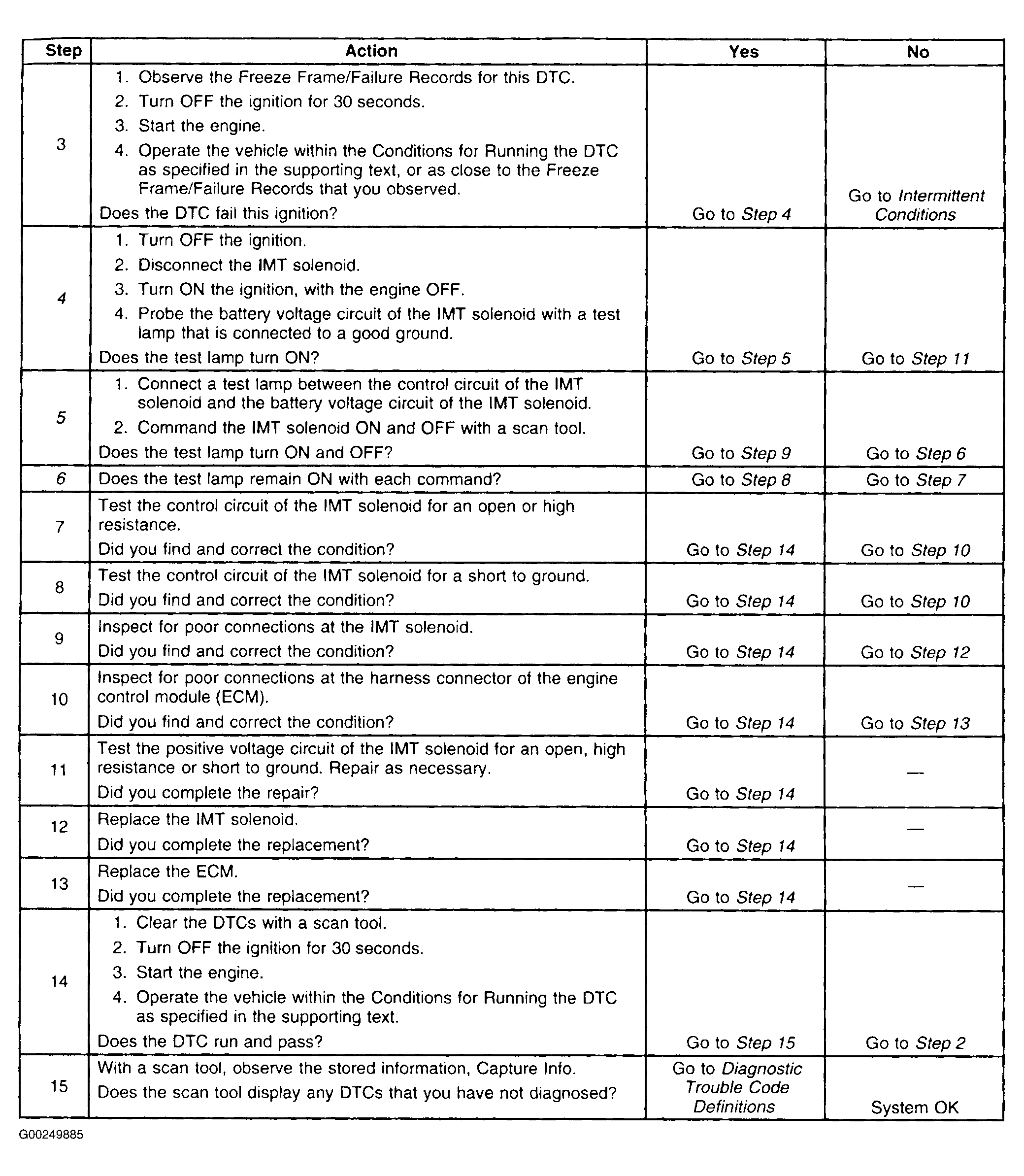

Fig 2: DTC P0660: Intake Manifold Tuning Valve Control Circuit Malfunction (Steps 3-15)
G00249885Courtesy of GENERAL MOTORS CORP.
