Starter Shield: Installation

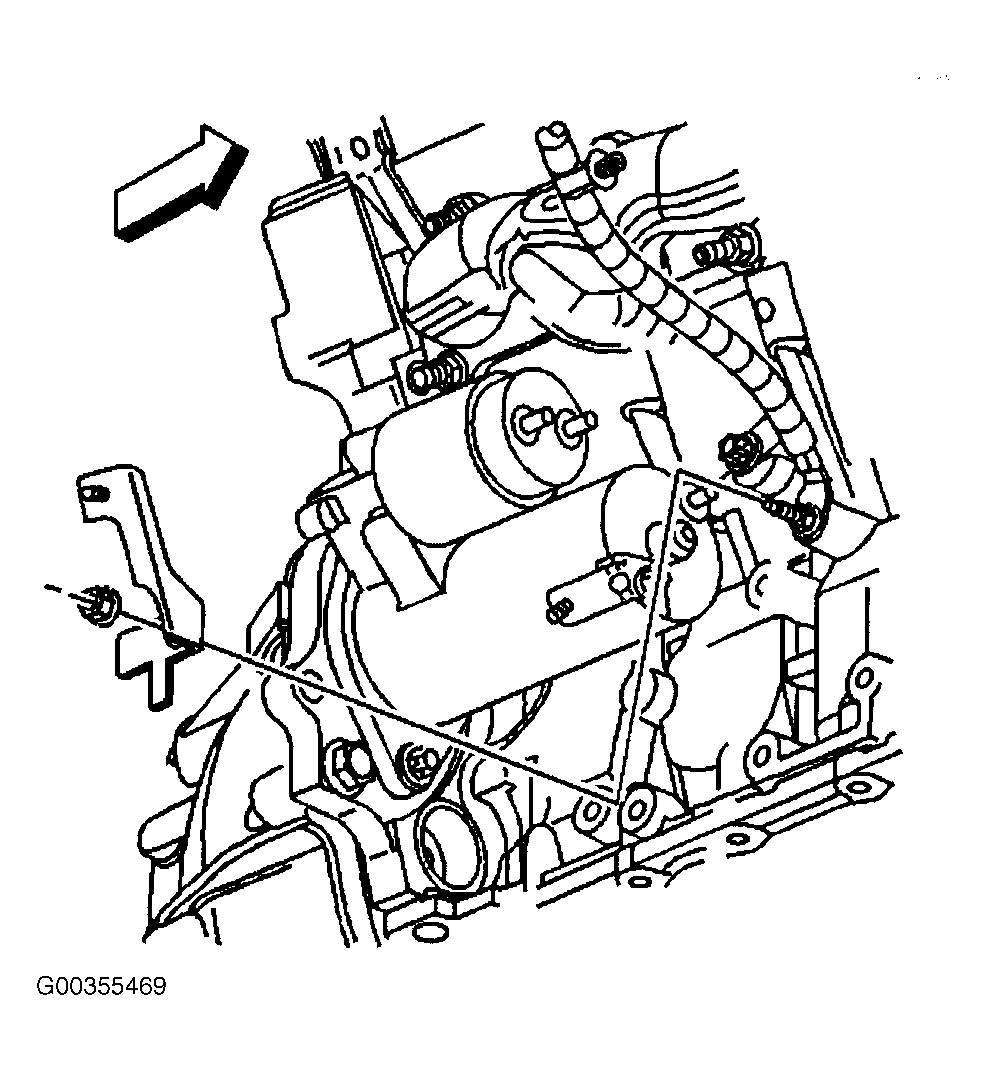

  1. Install the starter heat shield mounting bracket to the stud located at the engine block. See Figure .
  2. Install the nut securing the starter heat shield mounting bracket to the engine block. Tighten the starter heat shield mounting bracket nut to specification. See TORQUE SPECIFICATIONS  .

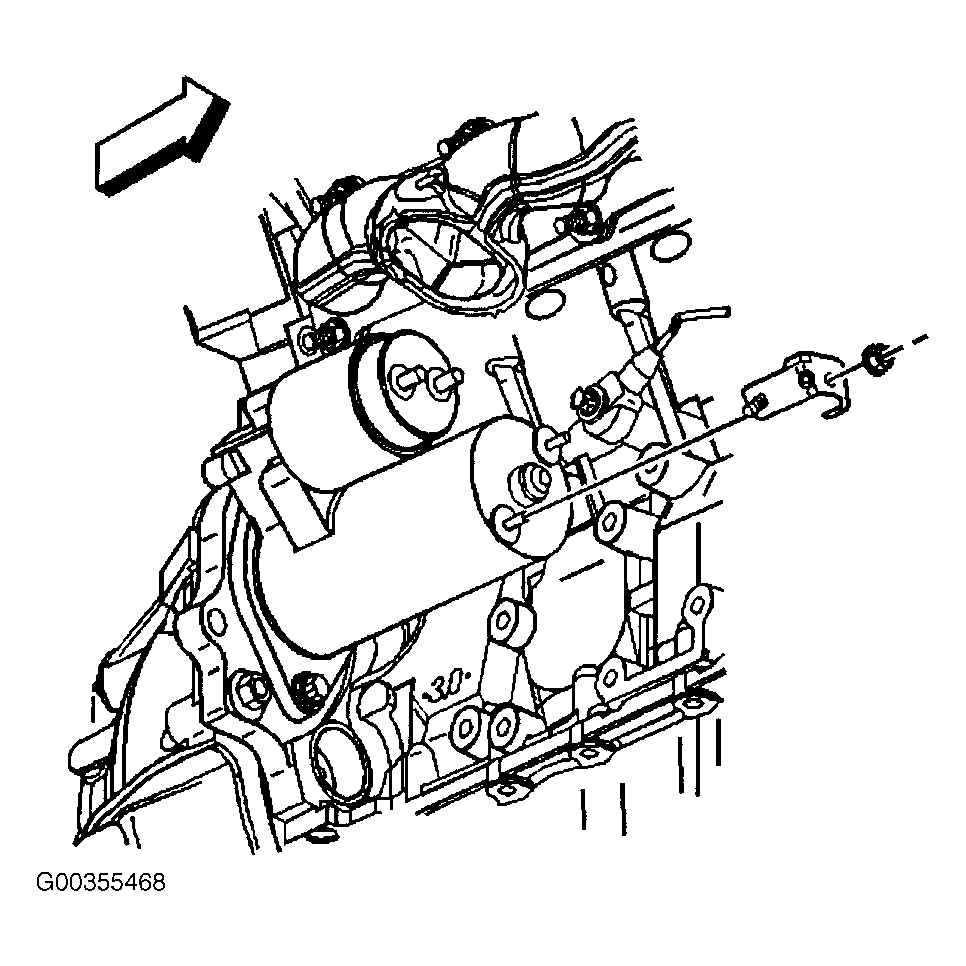

  3. Install the starter heat shield mounting bracket to the stud located at the rear of the starter motor. See Figure .
  4. Install the nut securing the starter heat shield mounting bracket to the starter. Tighten the starter heat shield mounting bracket nut to specification. See TORQUE SPECIFICATIONS  .
  5. Position the starter heat shield to the starter motor and brackets. Install the fasteners securing the starter heat shield to the starter motor and brackets. Tighten the starter heat shield fasteners to specification. See TORQUE SPECIFICATIONS  .
  6. Install the right catalytic converter.
  7. Connect the battery negative cable. Tighten to specification. See TORQUE SPECIFICATIONS  .
