Schematic and Routing Diagrams

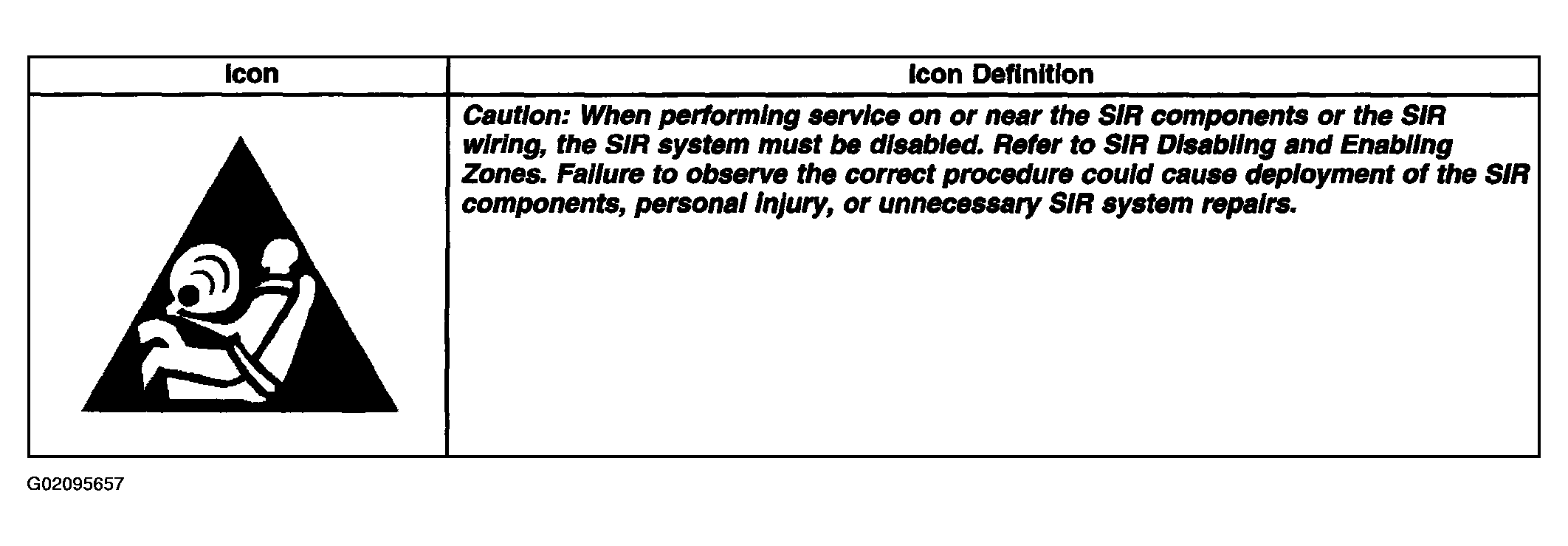

Fig 1: Horns Schematic Icons

G02095657

Courtesy of GENERAL MOTORS CORP.

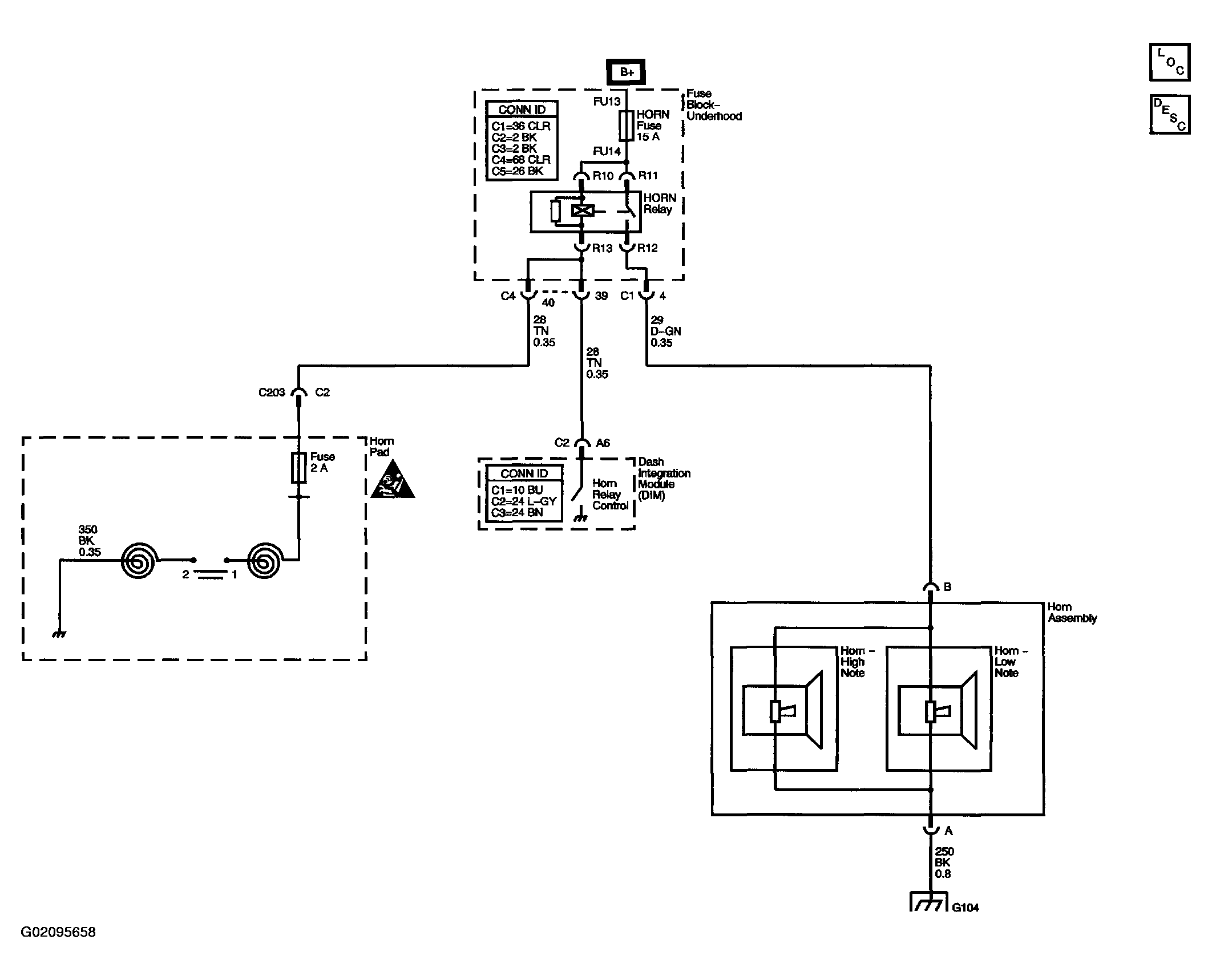

Fig 2: Horns Schematics Diagram

G02095658

Courtesy of GENERAL MOTORS CORP.
