Installation Procedure

  1. Connect the horn electrical connector (3) to the horn assembly (2).
  2. Install the stud of the horn assembly (2) into the large portion of the keyhole slot (4).
  3. Slide the horn assembly (2) forward in the keyhole slot (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Tighten the bolt (1) in order to secure the horn assembly (2) to the body side rail.

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

  5. Install the lower air deflector. Refer to AIR DEFLECTOR REPLACEMENT -- FRONT BUMPER FASCIA in Bumpers.

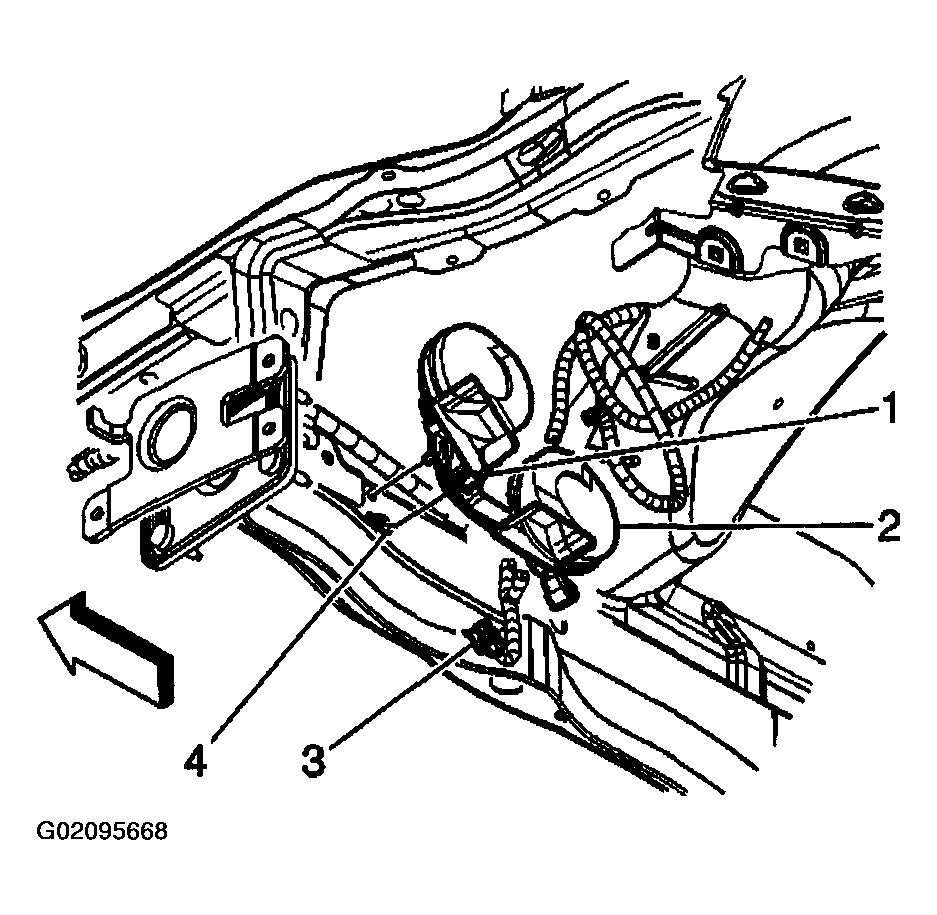

    Fig 1: Installing Horn Assembly
    G02095668Courtesy of GENERAL MOTORS CORP.
  6. Lower the vehicle.
