Home
>>
Cadillac
>>
2003
>>
CTS Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Component Locator
>>
Horns Connector End Views
Horns Connector End Views

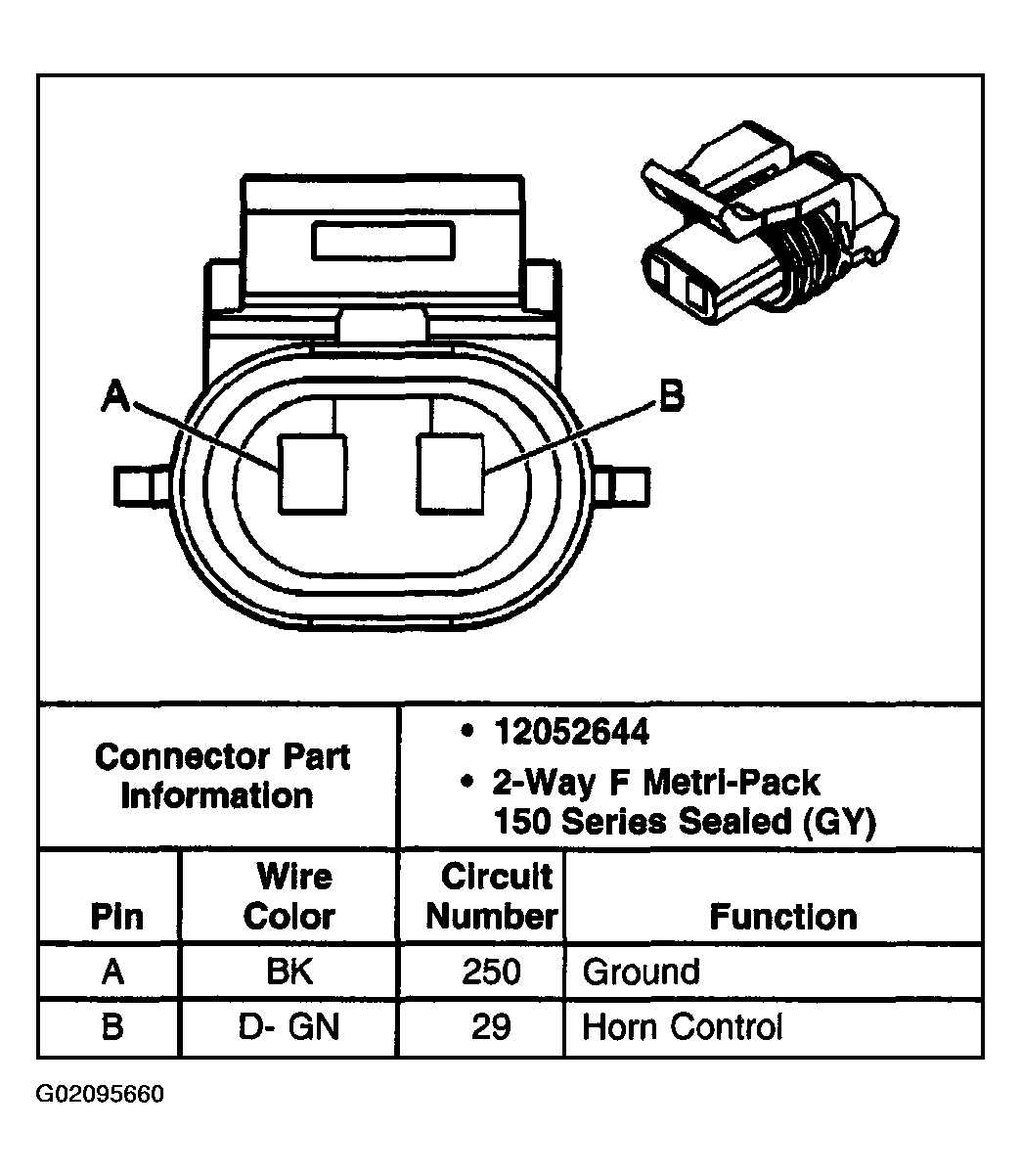

Fig 1: Dual Horn Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
