Right Rear Fuse Block

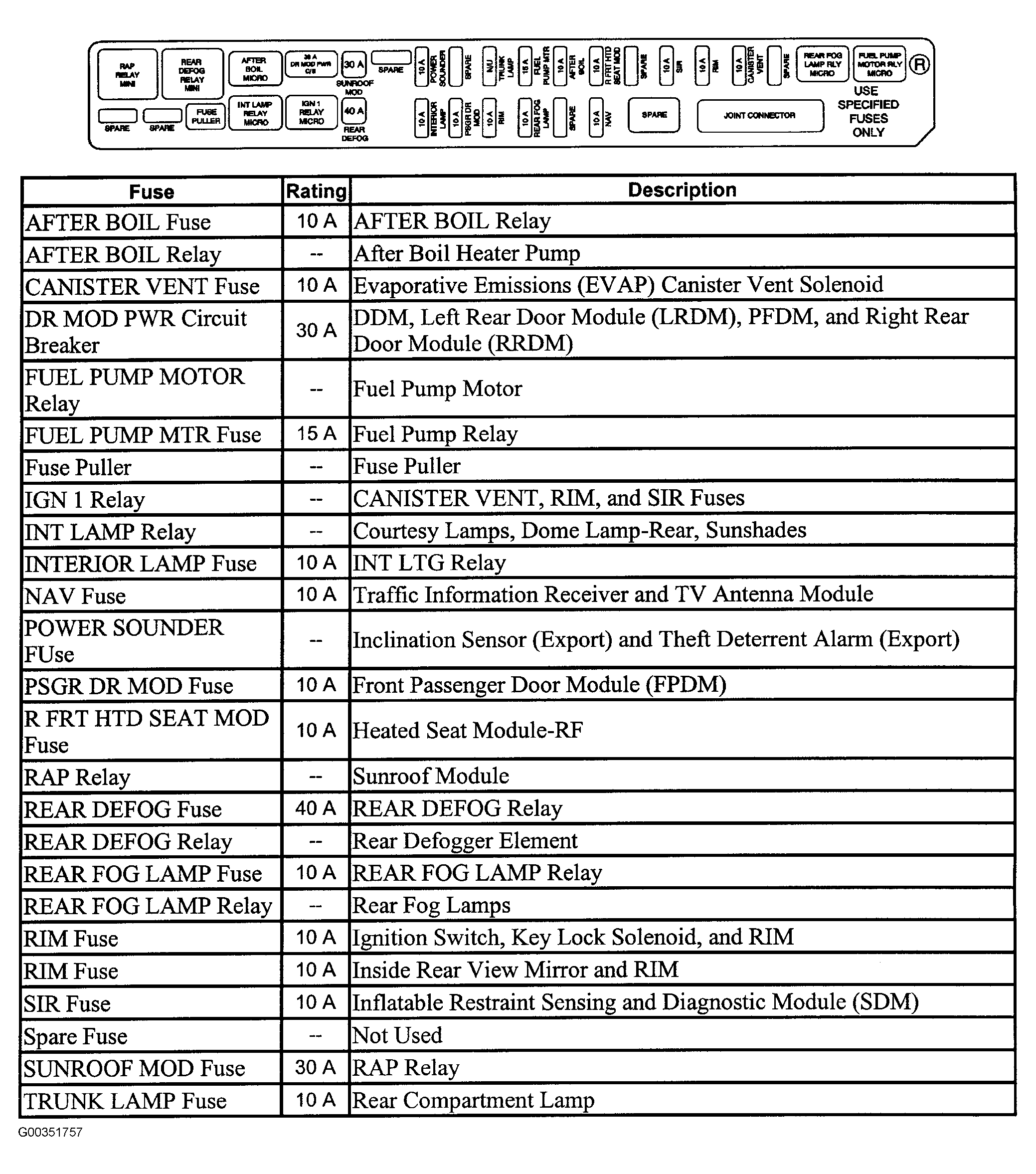

Right rear fuse block is located in the passenger compartment, under the right side of the rear seat. See Figure.
RIGHT REAR FUSE BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| After Boil Relay |
| Fuel Pump Relay |
| IGN 1 Relay |
| Interior Lamp Relay |
| RAP Relay |
| Rear Defog Relay |
| Rear Fog Lamp Relay |
