Sunroof Control Switch Connector End View

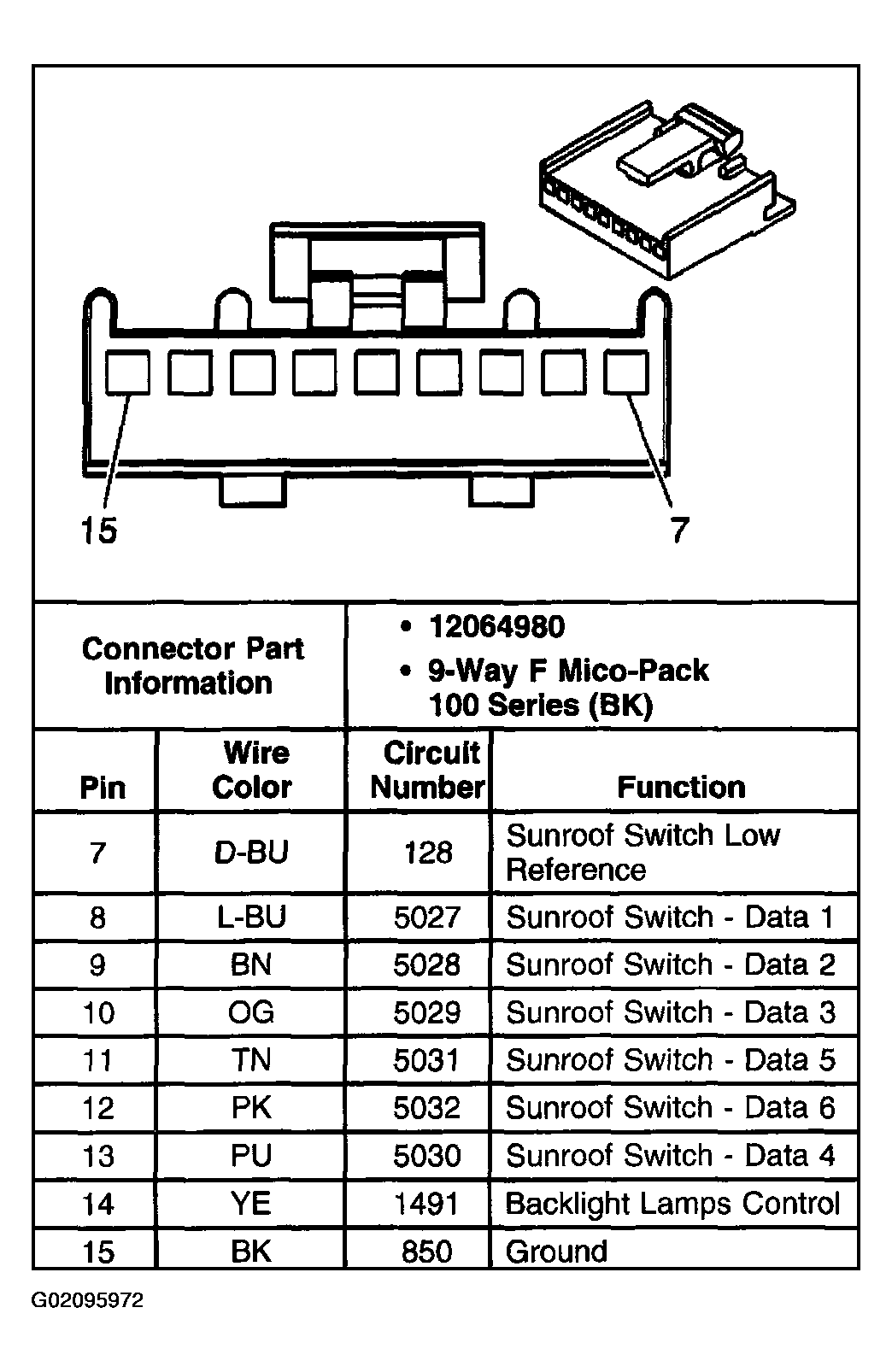

Fig 1: Sunroof Control Switch

G02095972

Courtesy of GENERAL MOTORS CORP.
