RH Heated Seat Module Connector End View

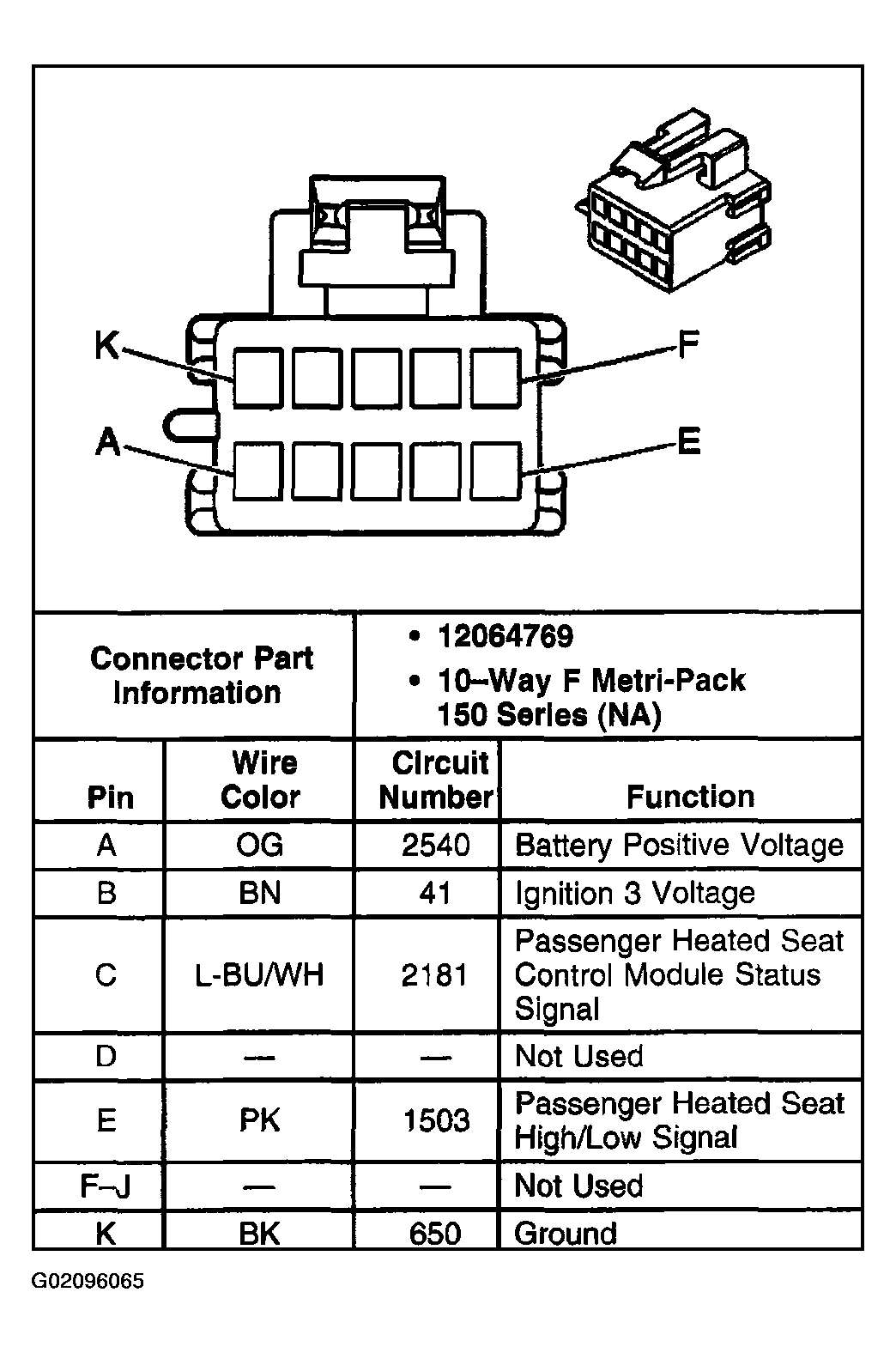

Fig 1: RH Heated Seat Module

G02096065

Courtesy of GENERAL MOTORS CORP.
