Home >> Cadillac >> 2003 >> CTS Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Inclination Sensor Connector End View

Inclination Sensor Connector End View

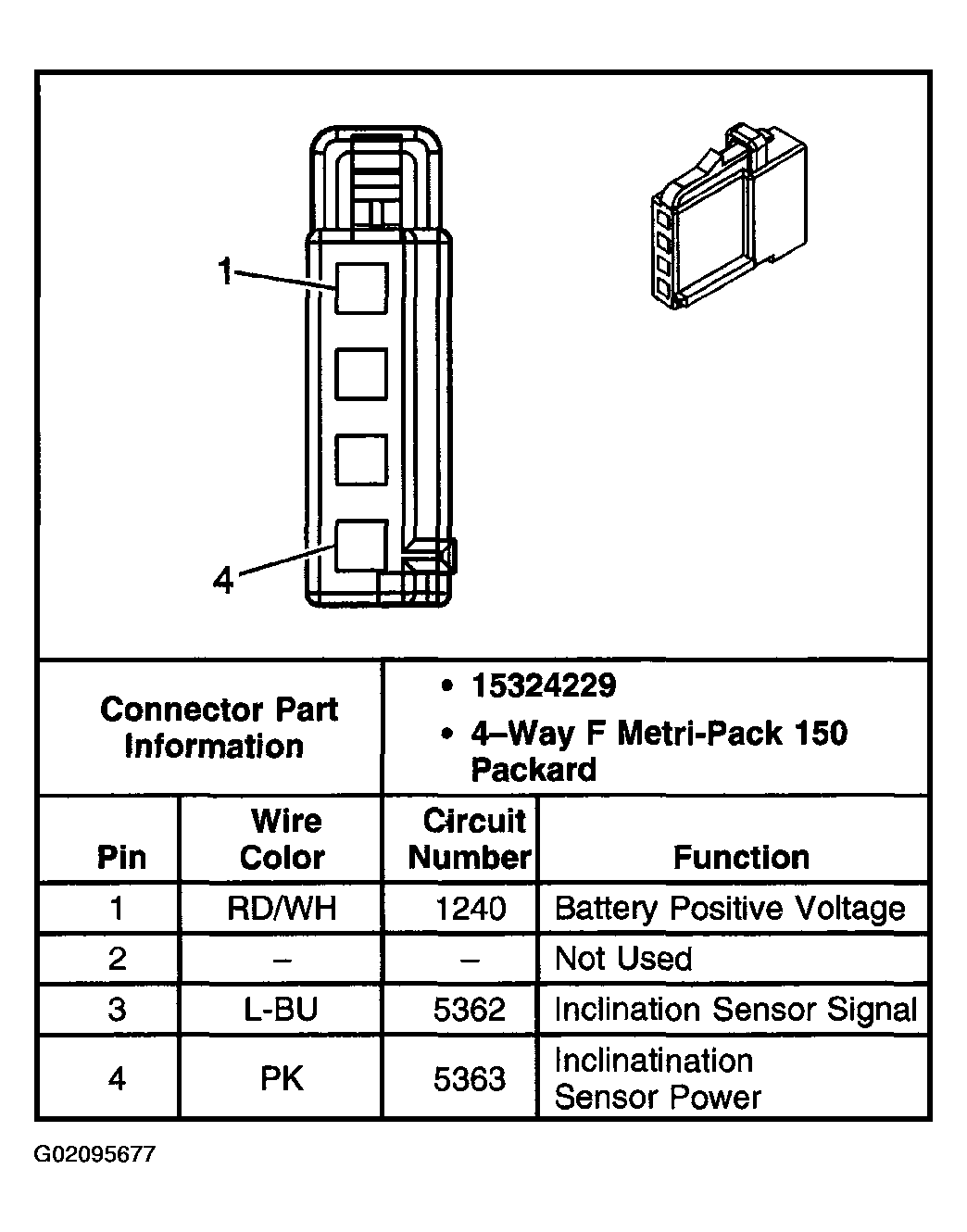

Fig 1: Inclination Sensor (Export W/ UA2)

G02095677

Courtesy of GENERAL MOTORS CORP.
