Stationary Window System
>>
Schematic and Routing Diagrams
Schematic and Routing Diagrams

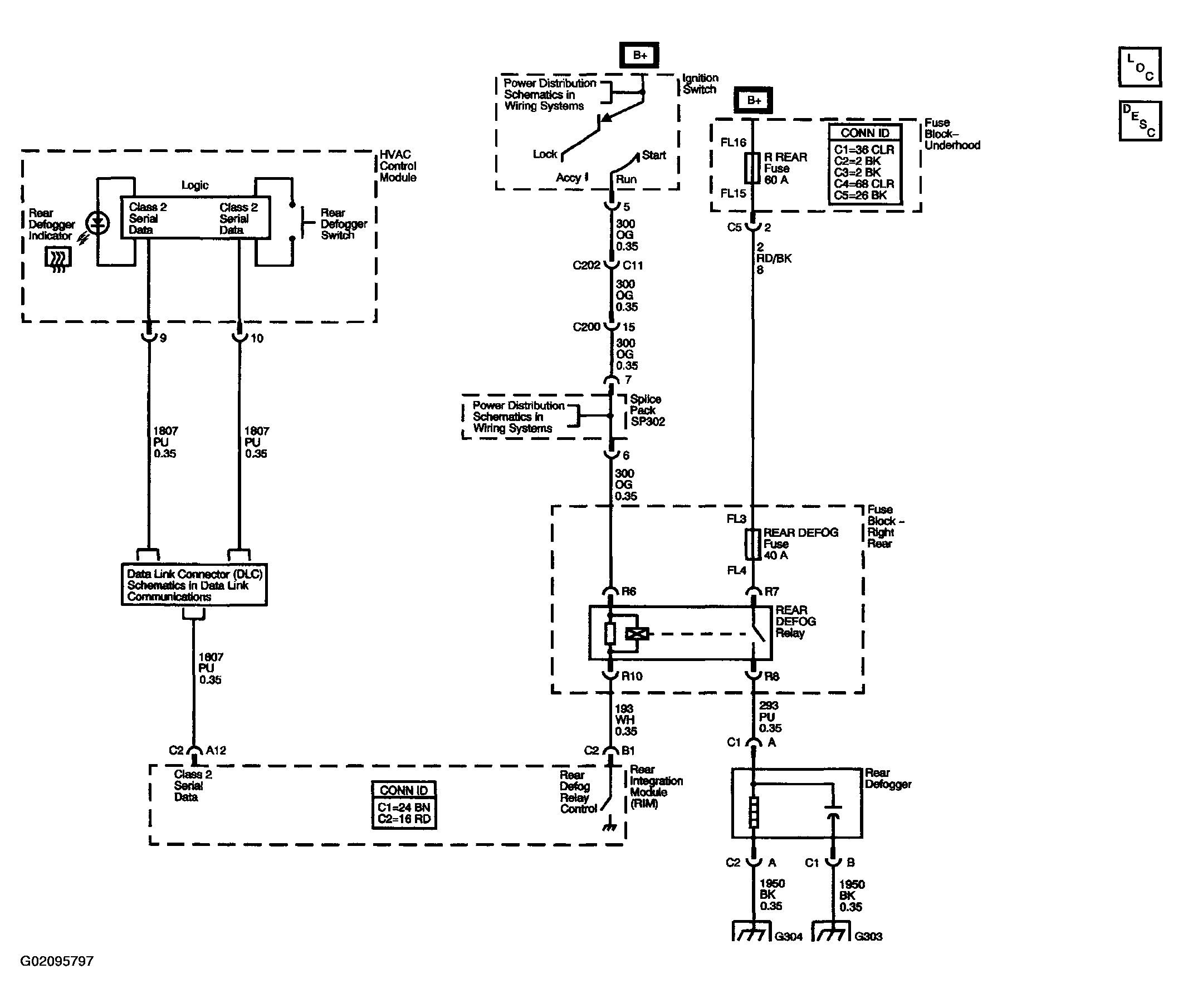

Fig 1: Defogger Schematics
Courtesy of GENERAL MOTORS CORP.

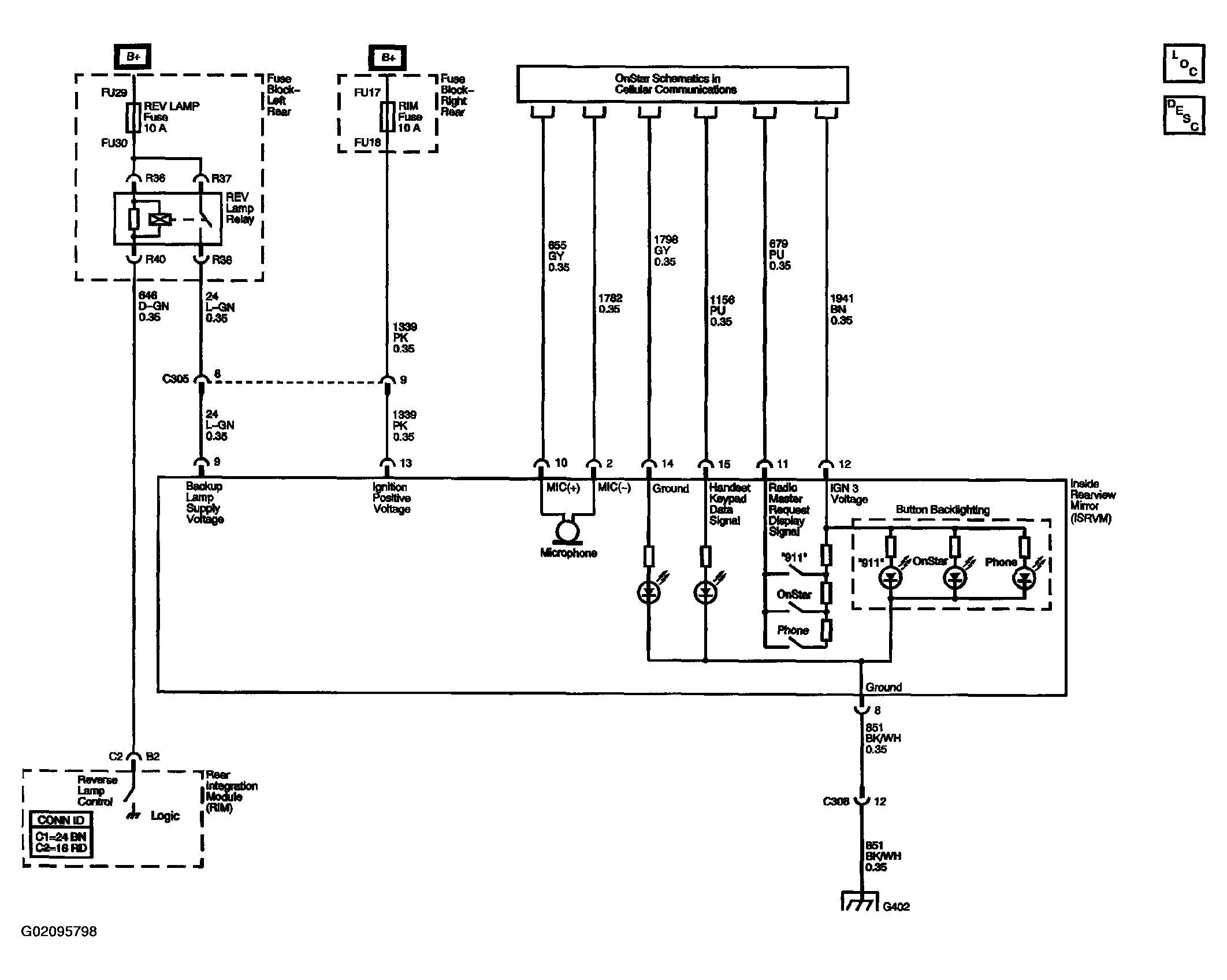

Fig 2: Inside Rearview Mirror Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
