Removal Procedure

  1. Remove the inside handle bezel from the inner door panel in the following order:
    1. 1.1. Hold the inside handle (1) to the open position.
    2. 1.2. Insert a flat bladed tool at the front lower corner of the bezel.
    3. 1.3. Pry outward on the bezel.
    4. 1.4. Remove the bezel from the inner door panel.
  2. Disconnect the electrical connector from the lock switch.

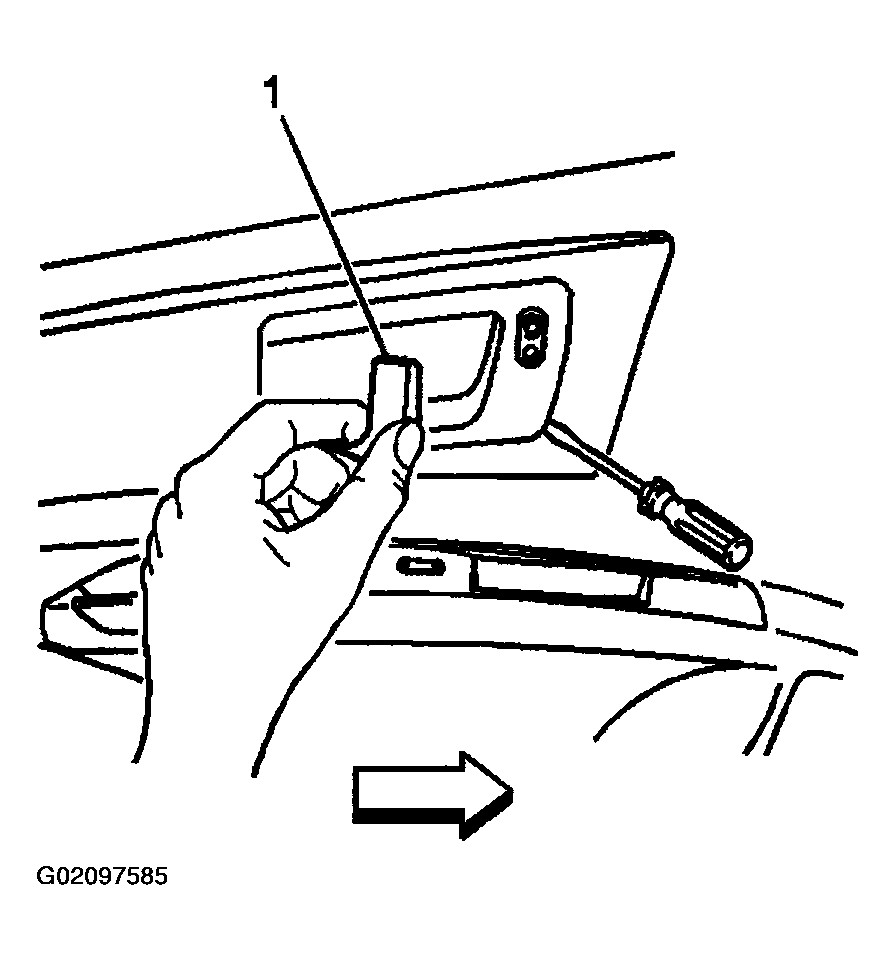

    Fig 1: Removing Inside Handle Bezel From Inner Door Panel
    G02097585Courtesy of GENERAL MOTORS CORP.
