Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the power mirror wire harness electrical connector (3).
  3. Remove the mirror fasteners (4, 5, 6).
  4. Remove the mirror (1) from the door.
  5. Pull the wiring harness through the hole in the mirror patch.

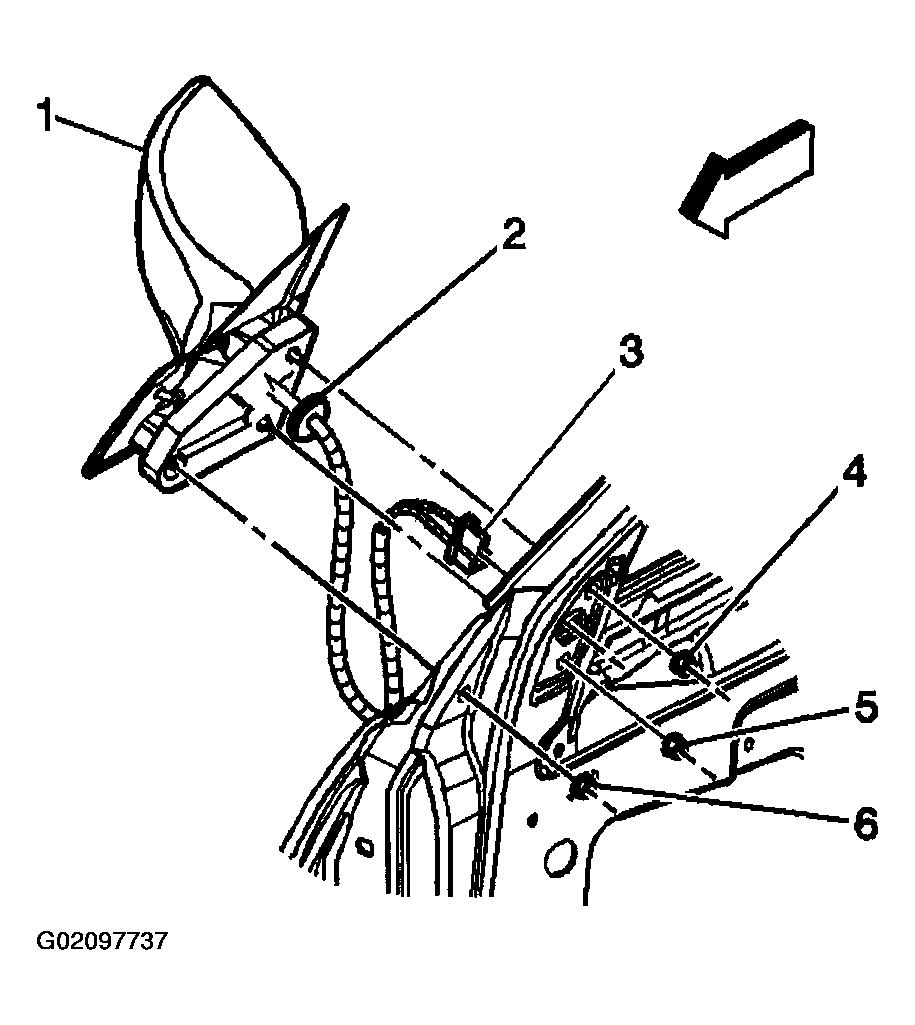

    Fig 1: Removing Power Mirror From Door
    G02097737Courtesy of GENERAL MOTORS CORP.
