Scan Tool Data List

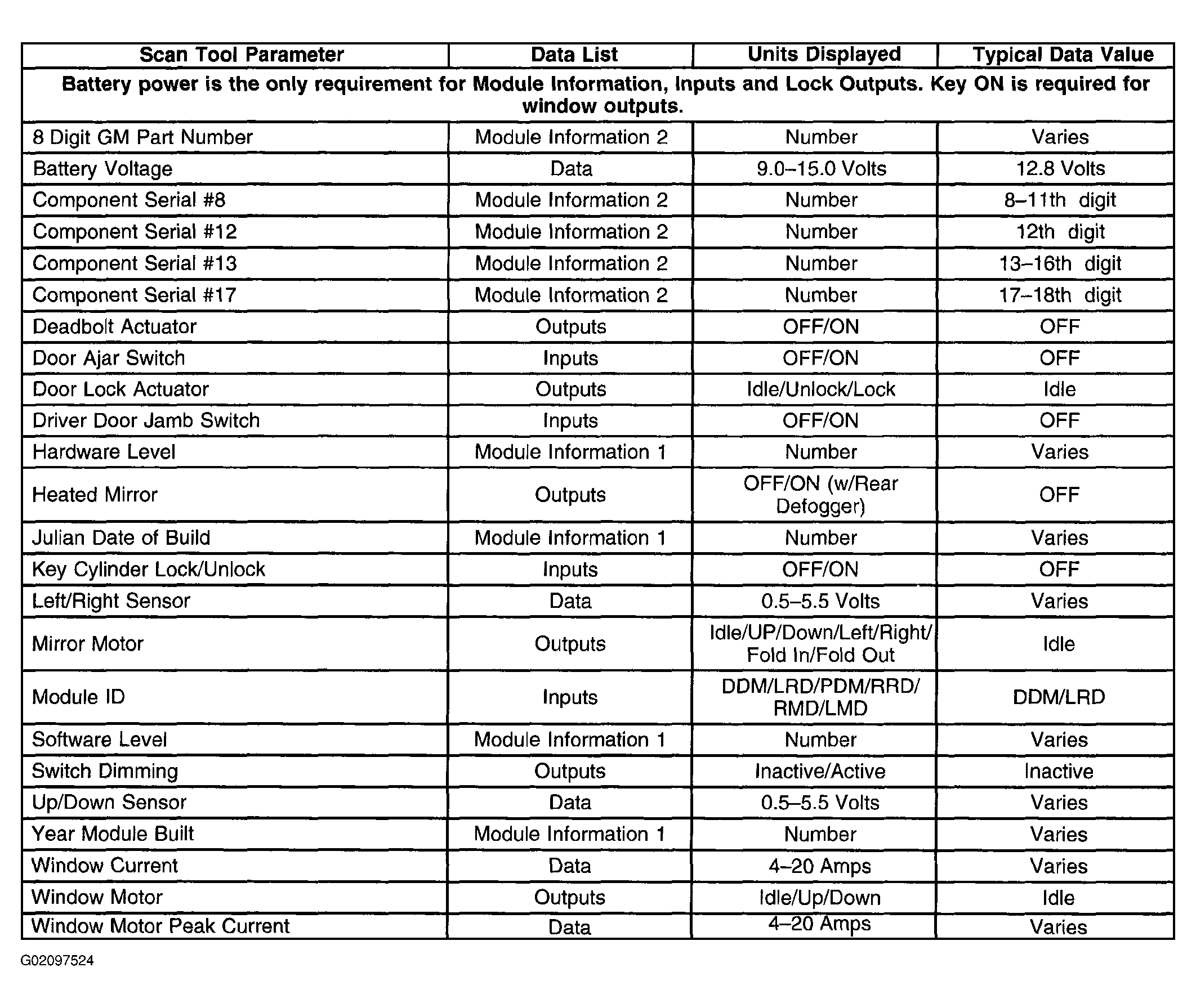

Fig 1: Driver Door Module (DDM) Scan Tool Data List Table

Courtesy of GENERAL MOTORS CORP.

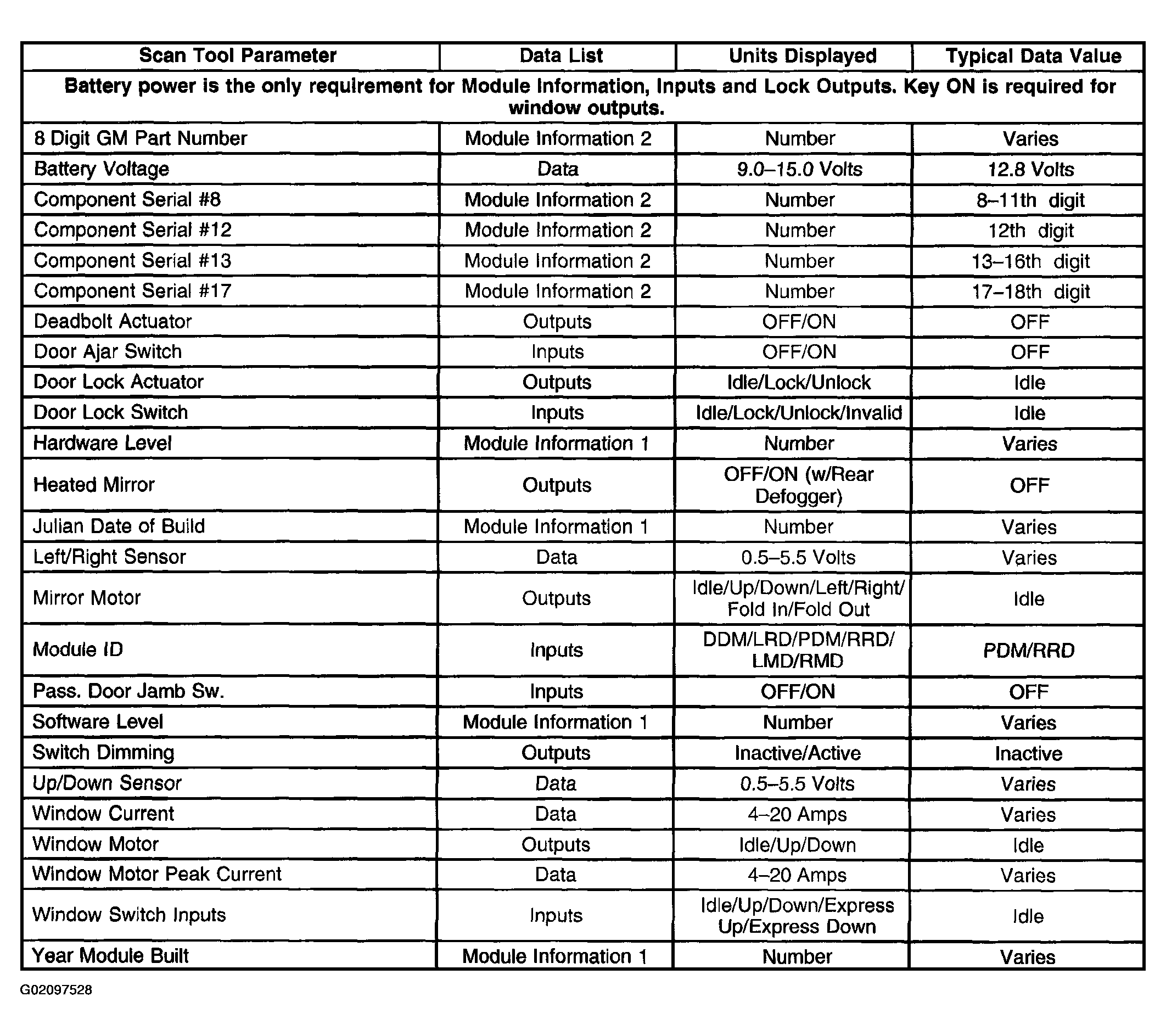

Fig 2: Drive Door Switch Assembly (DDSA) Scan Tool Data List Table

Courtesy of GENERAL MOTORS CORP.

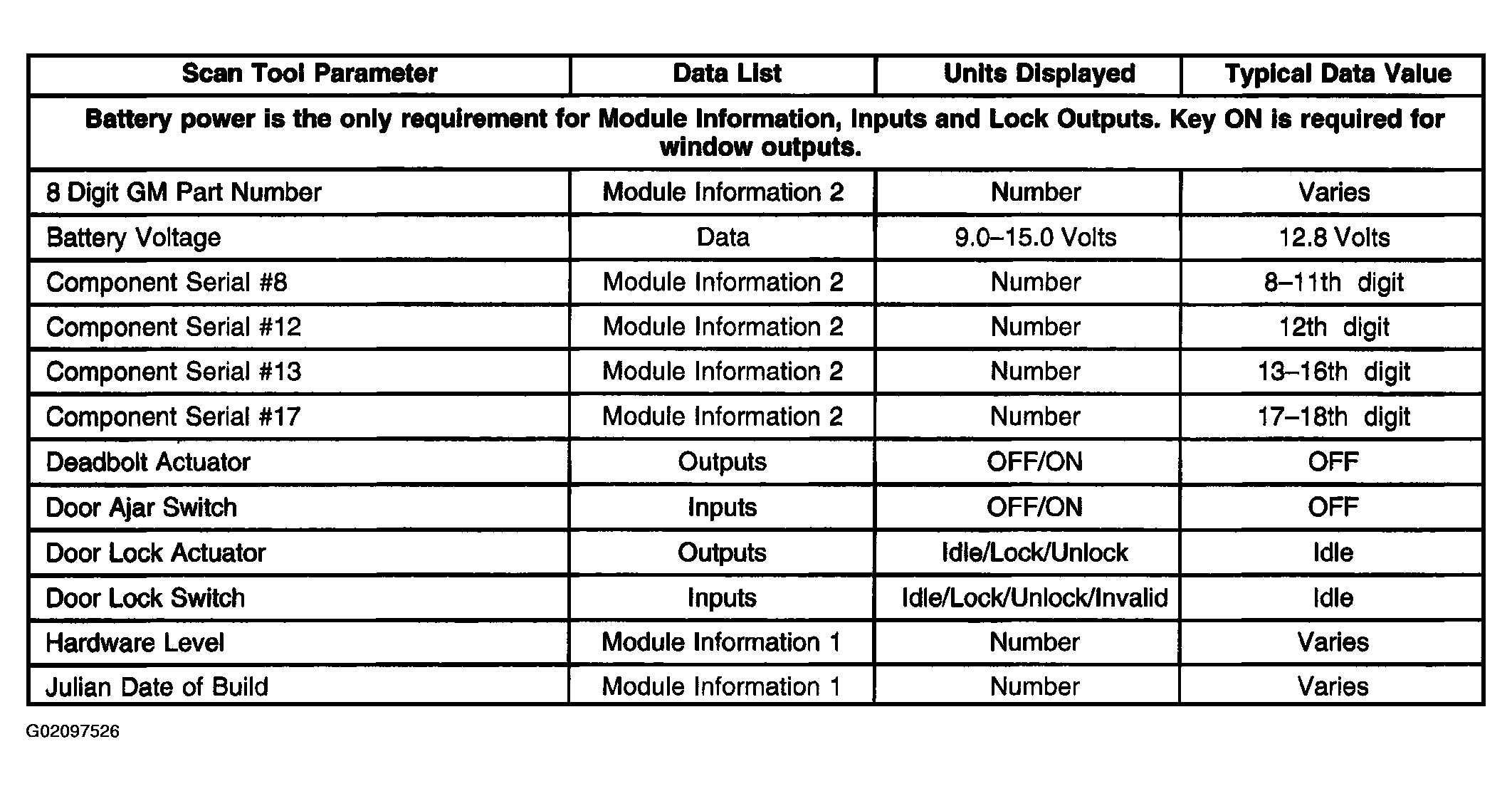

Fig 3: Left Rear Door Module (LRDM) Scan Tool Data List Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

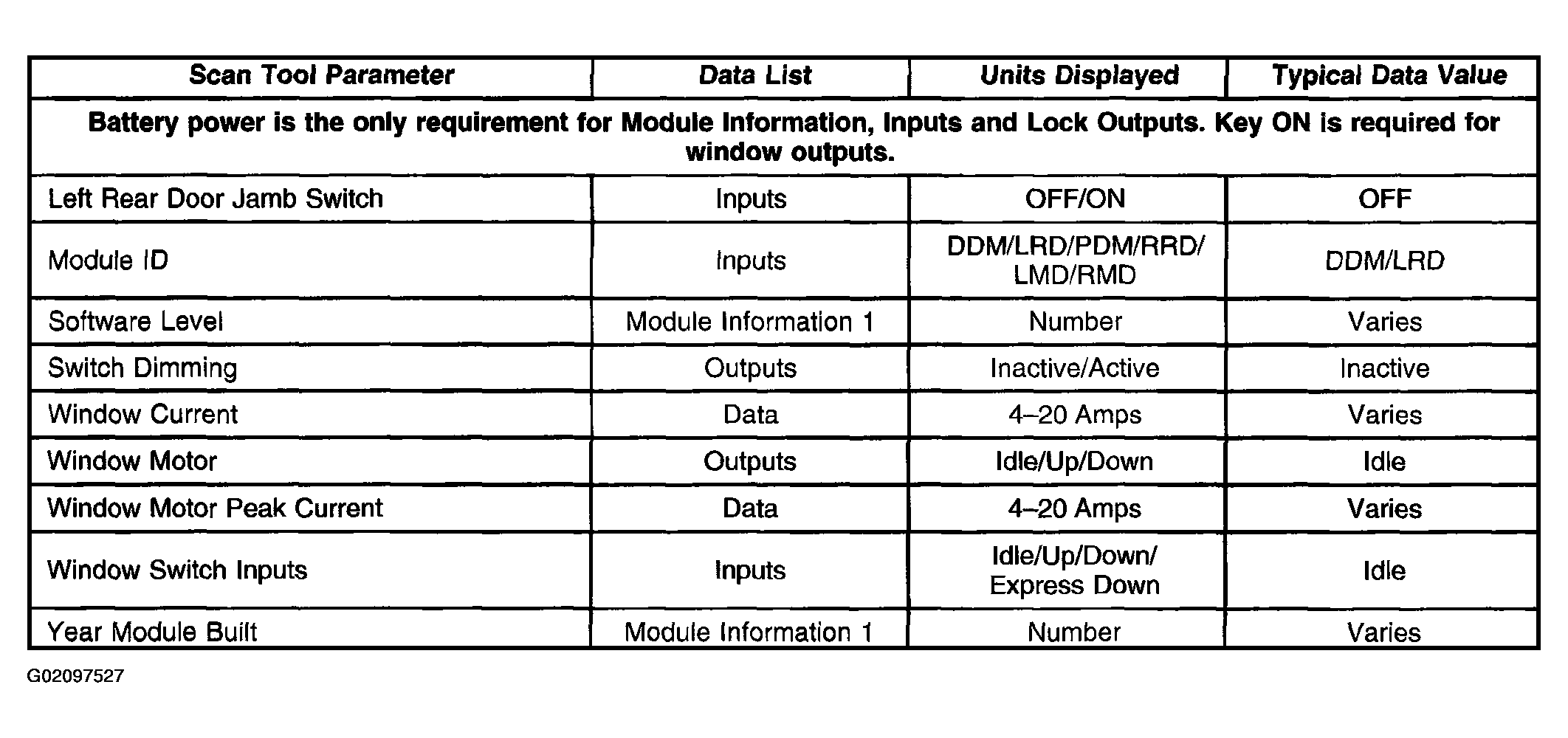

Fig 4: Left Rear Door Module (LRDM) Scan Tool Data List Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

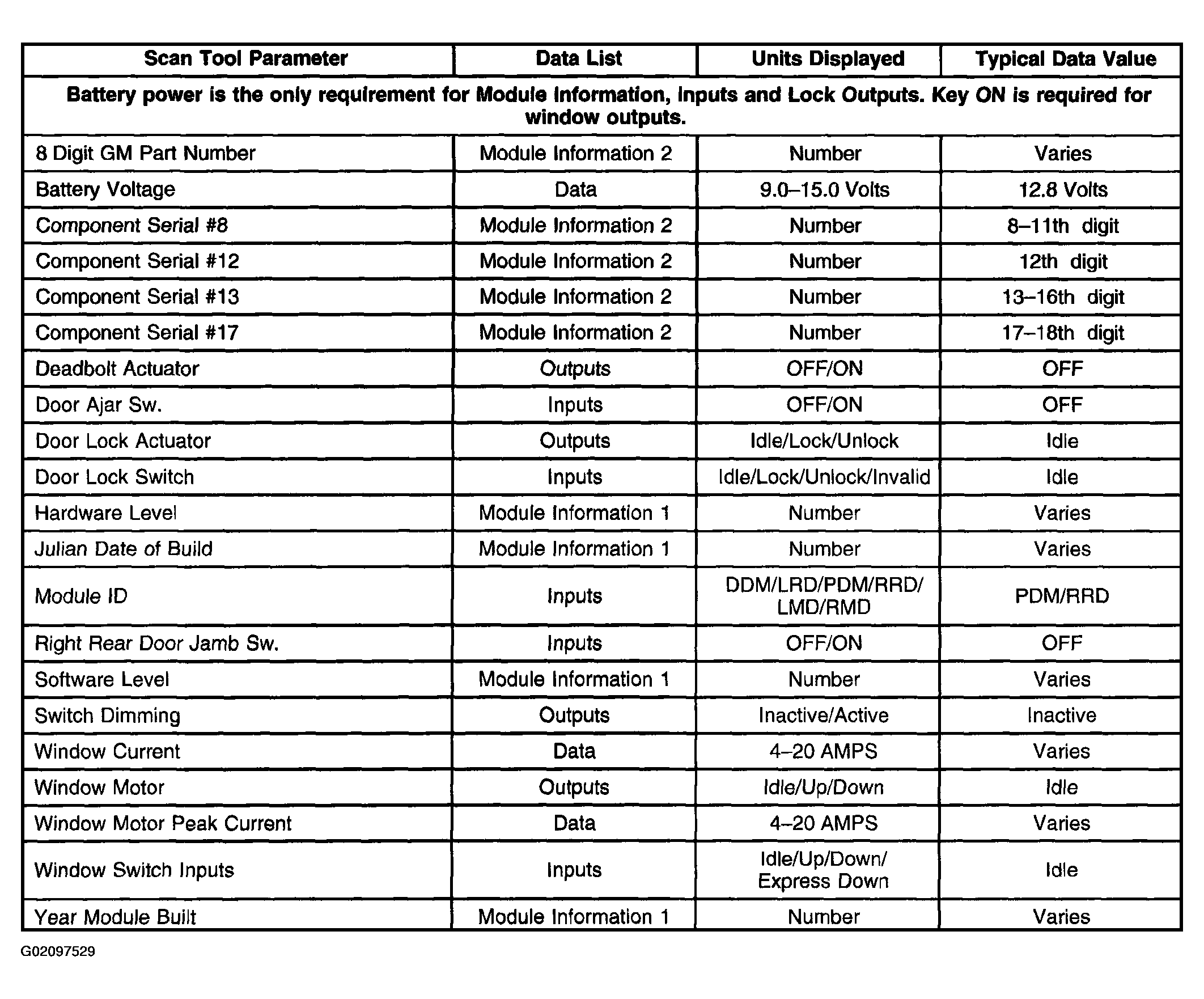

Fig 5: Passenger Front Door Module (PFDM) Scan Tool Data List Table

Courtesy of GENERAL MOTORS CORP.

Fig 6: Right Rear Door Module (RRDM) Scan Tool Data List Table

Courtesy of GENERAL MOTORS CORP.

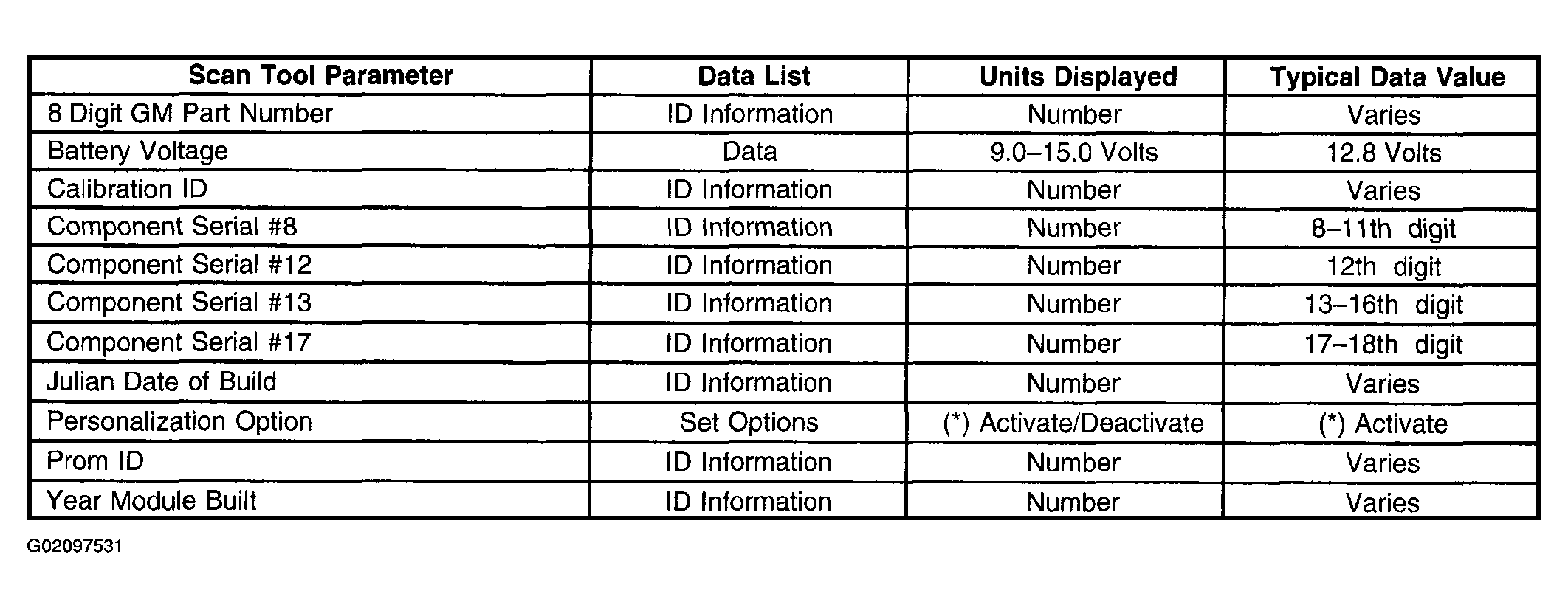

Fig 7: Rear Integration Module (RIM) Scan Tool Data List Table

Courtesy of GENERAL MOTORS CORP.

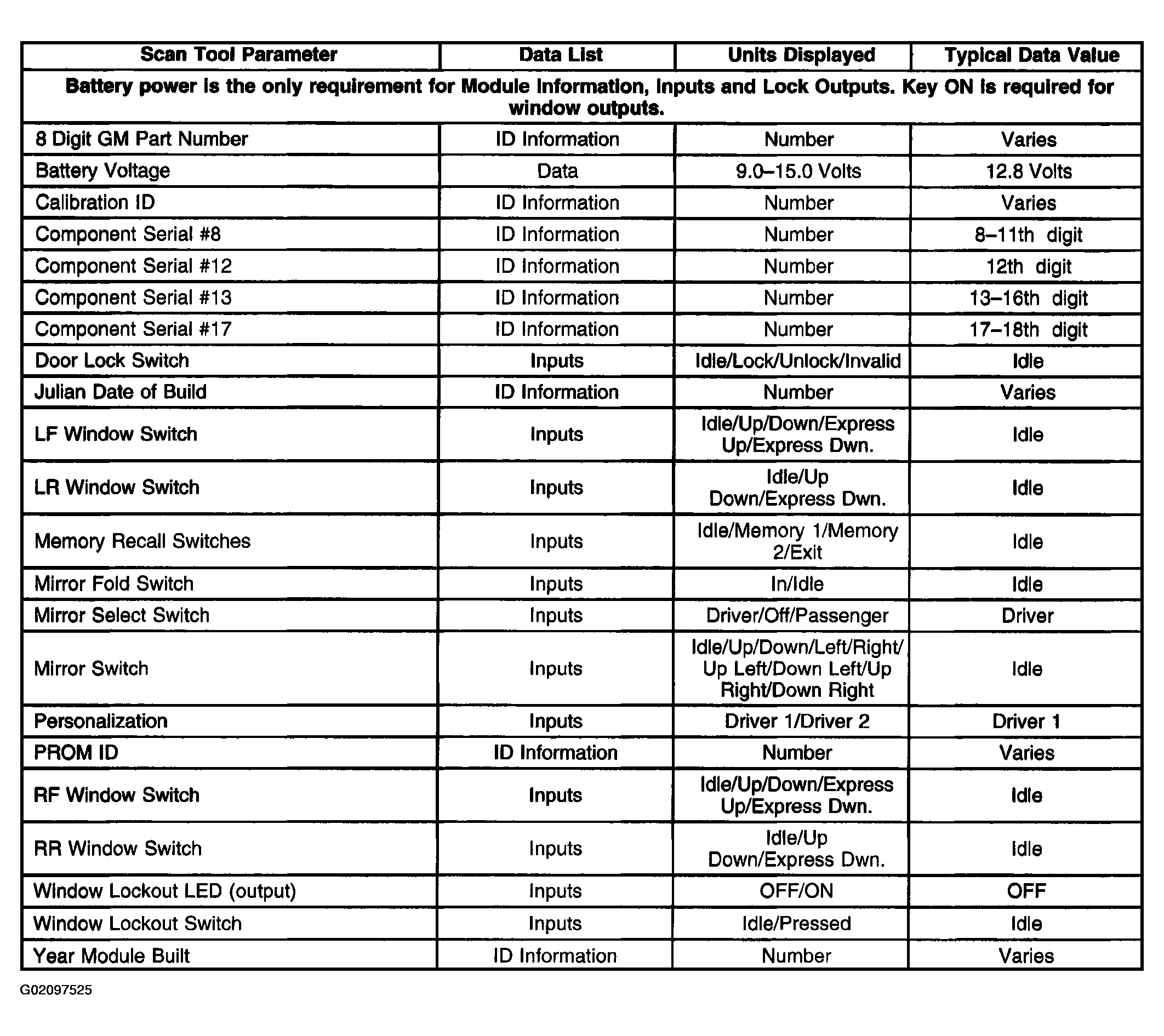

Fig 8: Dash Integration Module (DIM) Scan Tool Data List Table

Courtesy of GENERAL MOTORS CORP.
