Installation Procedure

  1. Snap the door lock switch into the door switch bezel.
  2. Connect the electrical connector.
    Fig 1: Connecting Electrical Connector
    G02096147Courtesy of GENERAL MOTORS CORP.
  3. Insert the rear of the door lock switch into the door trim panel.
  4. Press down on the front of the door lock switch to engage the switch to the door trim panel

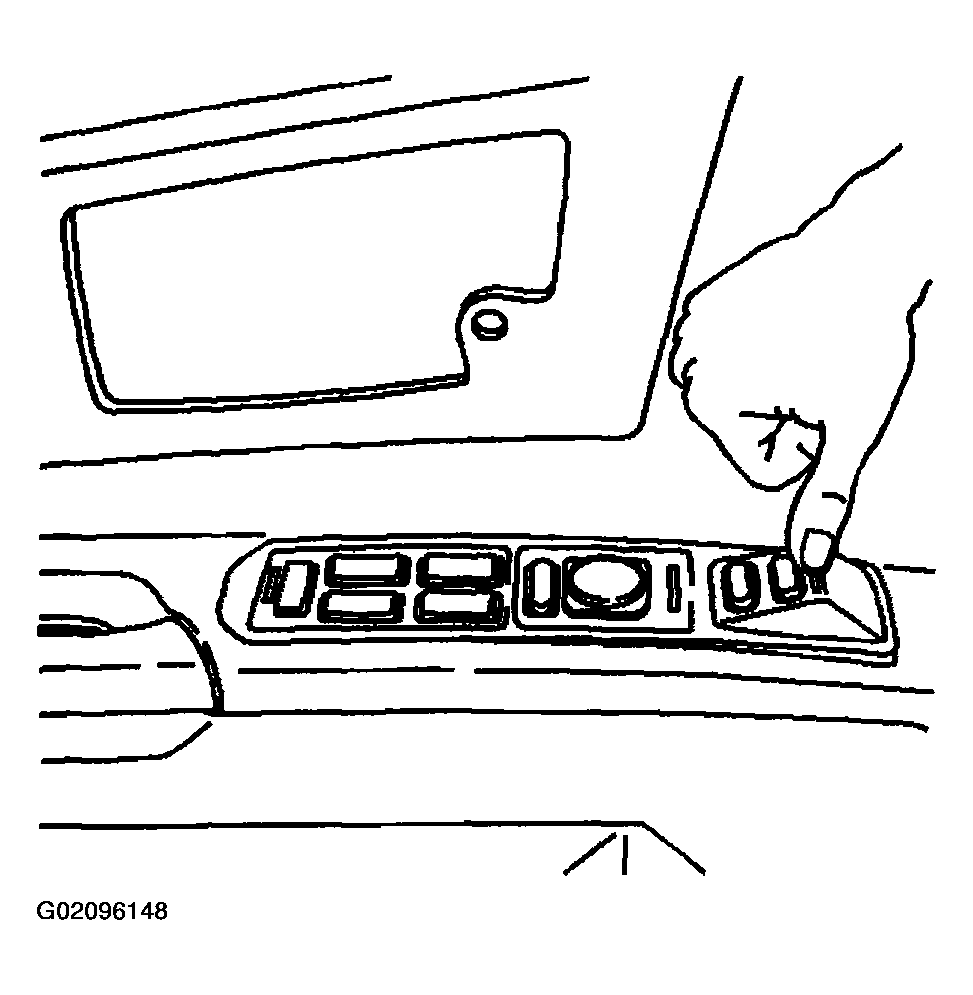

    Fig 2: Inserting Rear Of Door Lock Switch Into Door Trim Panel
    G02096148Courtesy of GENERAL MOTORS CORP.
