Data Link Communications Connector End Views

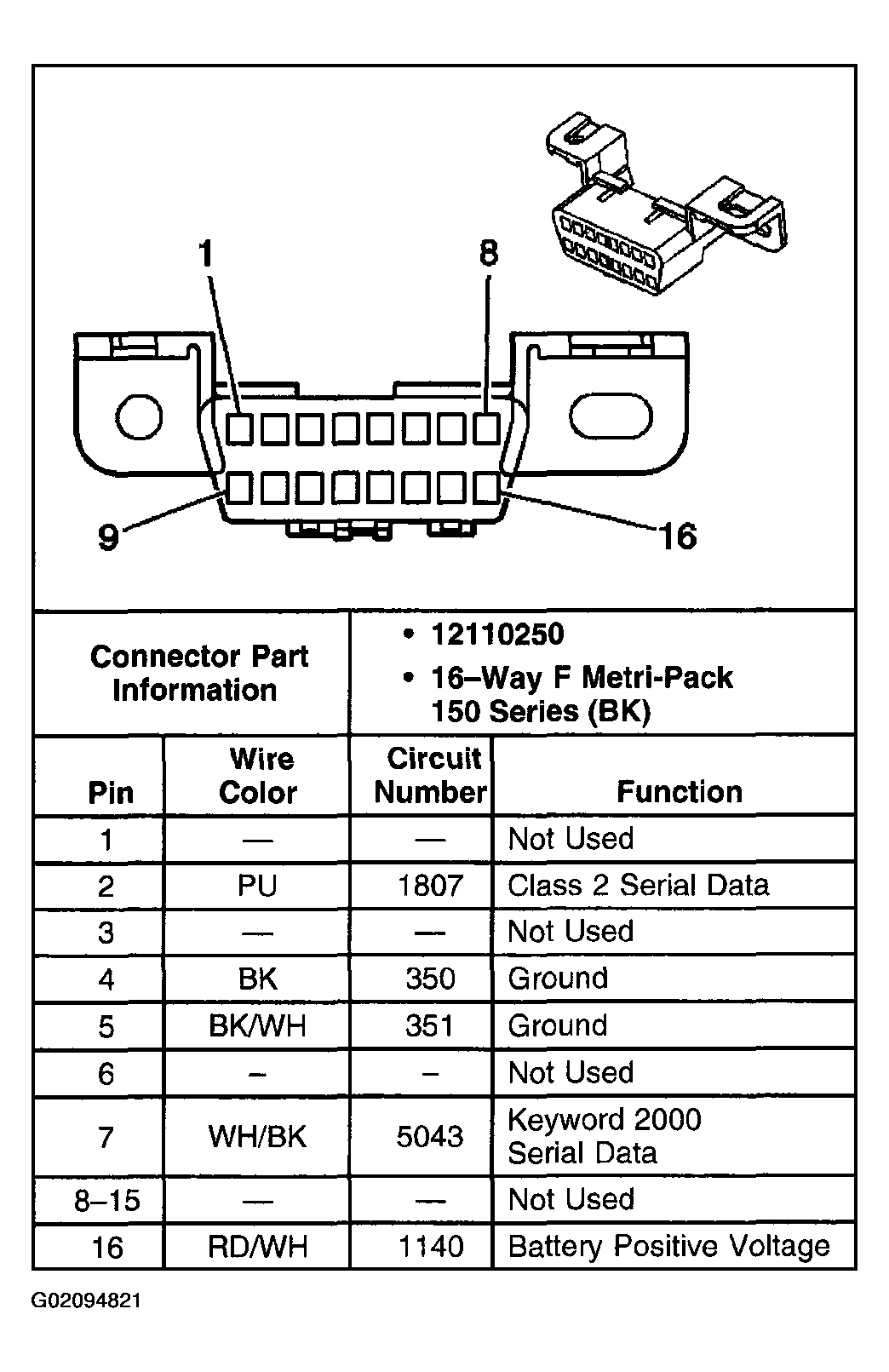

Fig 1: Data Link Communications Connector End View

G02094821

Courtesy of GENERAL MOTORS CORP.
