Home >> Cadillac >> 2003 >> CTS Standard >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Link Communication System >> Component Locator >> Data Link Communications Component Views

Data Link Communications Component Views

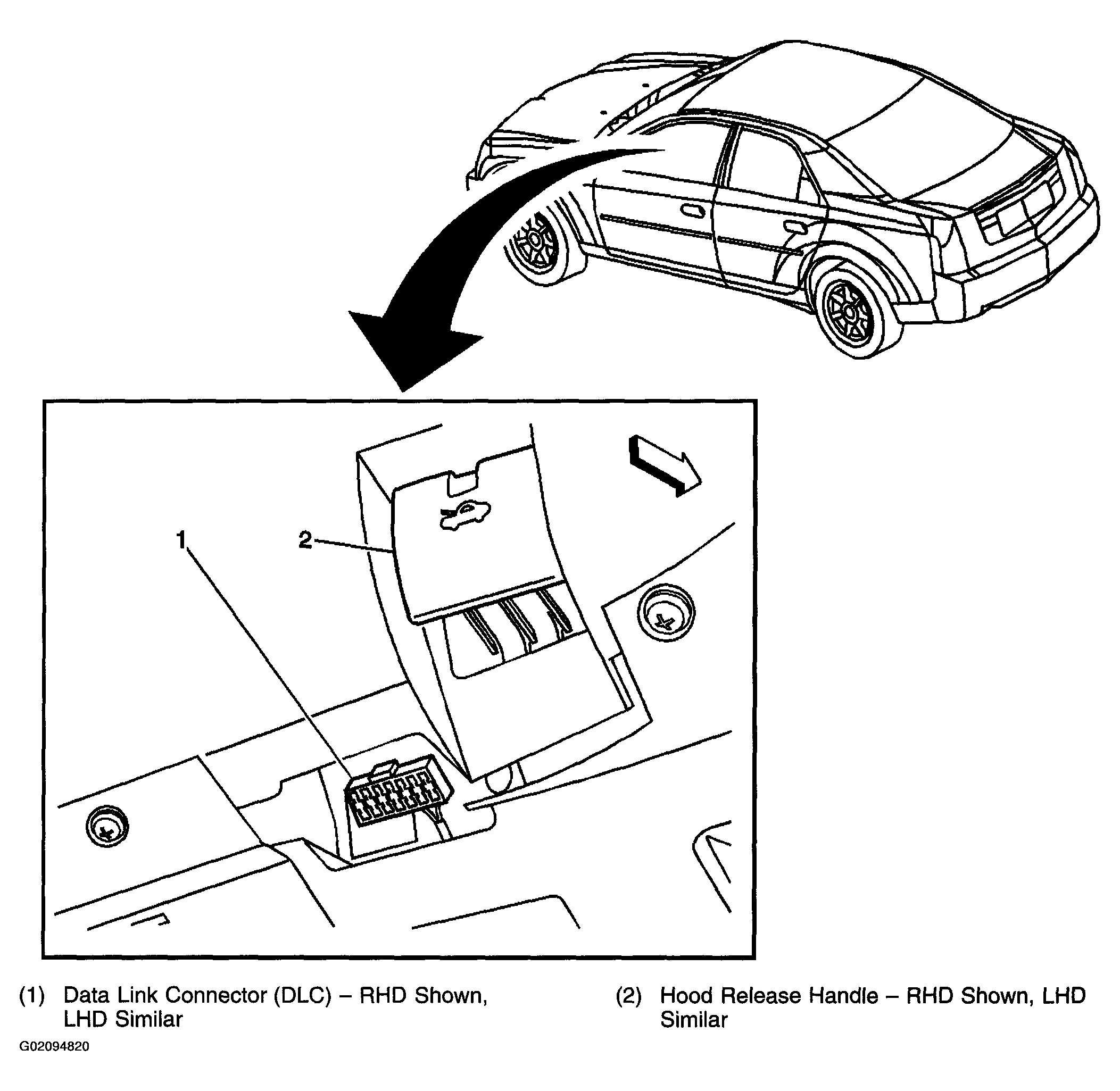

Fig 1: Data Link Communications Component Views

G02094820

Courtesy of GENERAL MOTORS CORP.
