Sunroof Control Module Connector End View C2

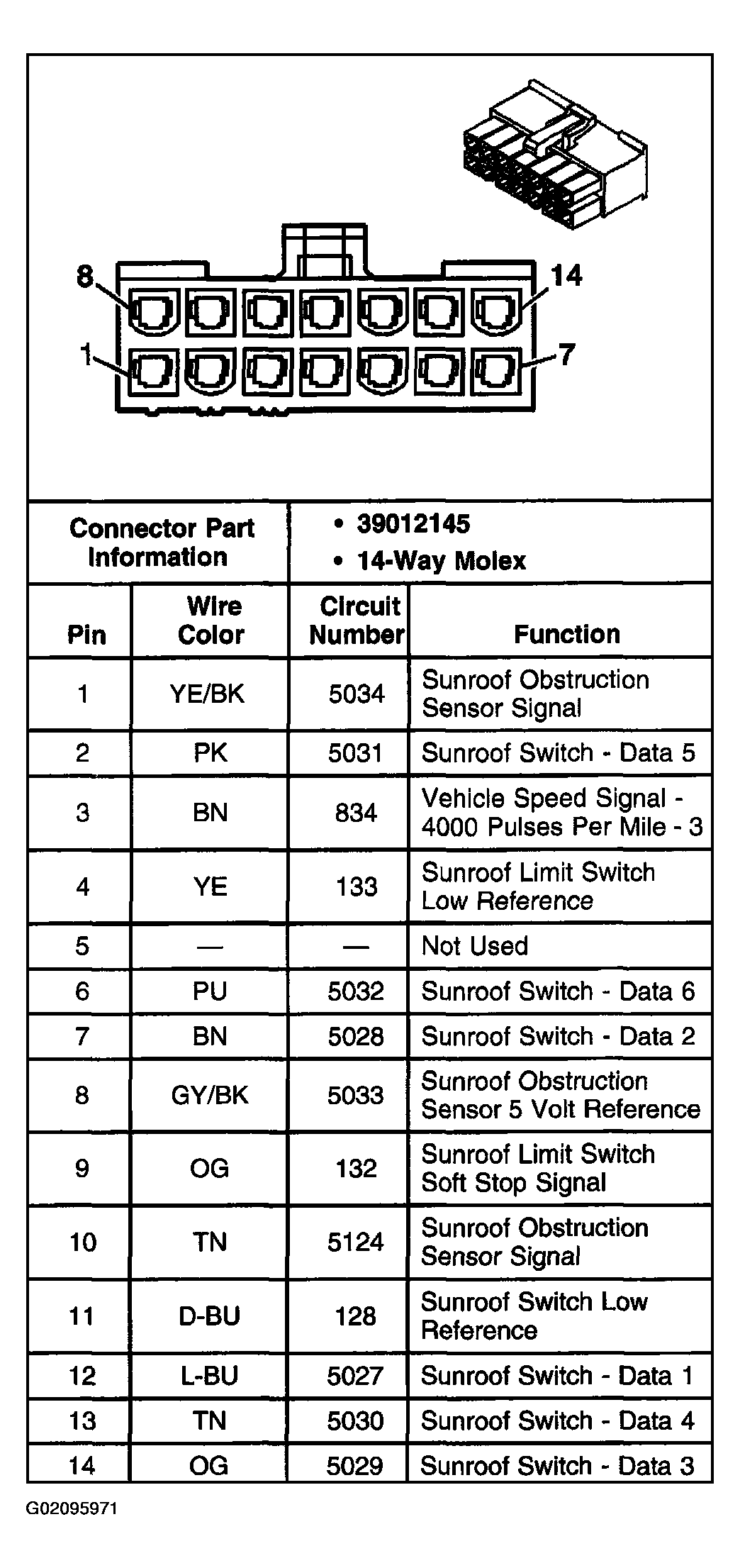

Fig 1: Sunroof Control Module C2

G02095971

Courtesy of GENERAL MOTORS CORP.
