Memory Seat Module (MSM) Connector End View - C2

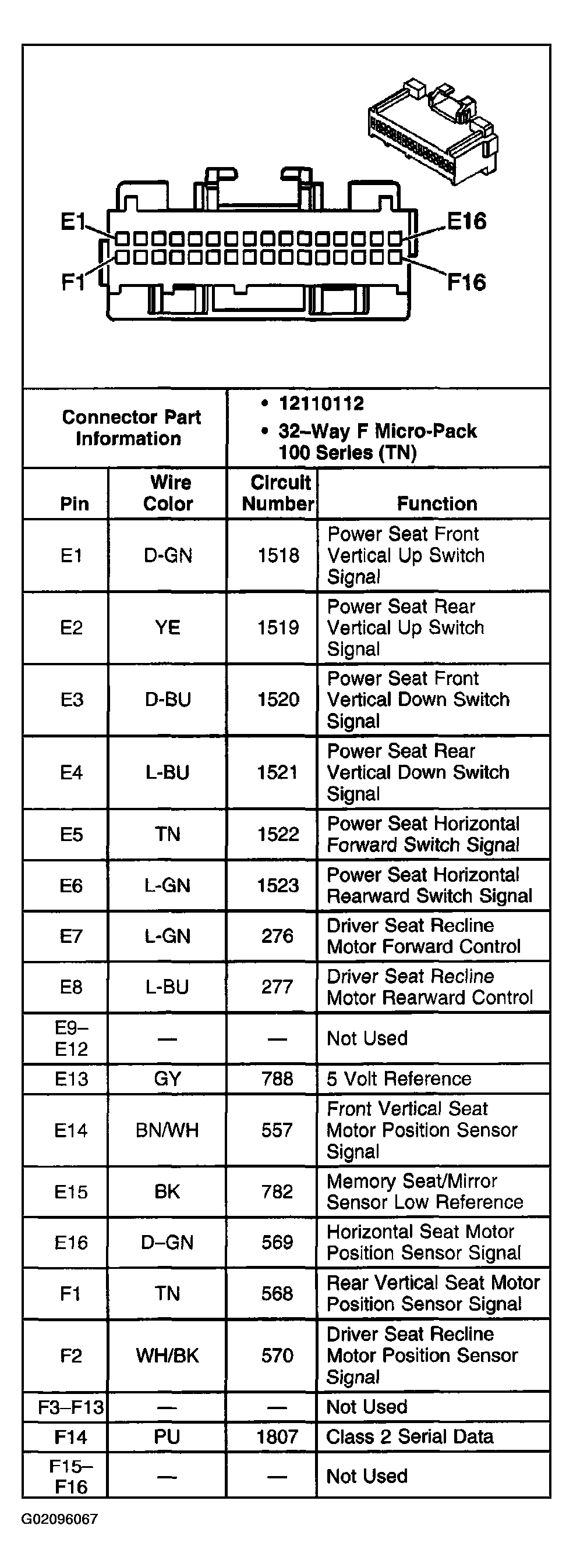

Fig 1: Memory Seat Module (MSM) - C2

G02096067

Courtesy of GENERAL MOTORS CORP.
