Memory Seat Module (MSM) Connector End View - C1

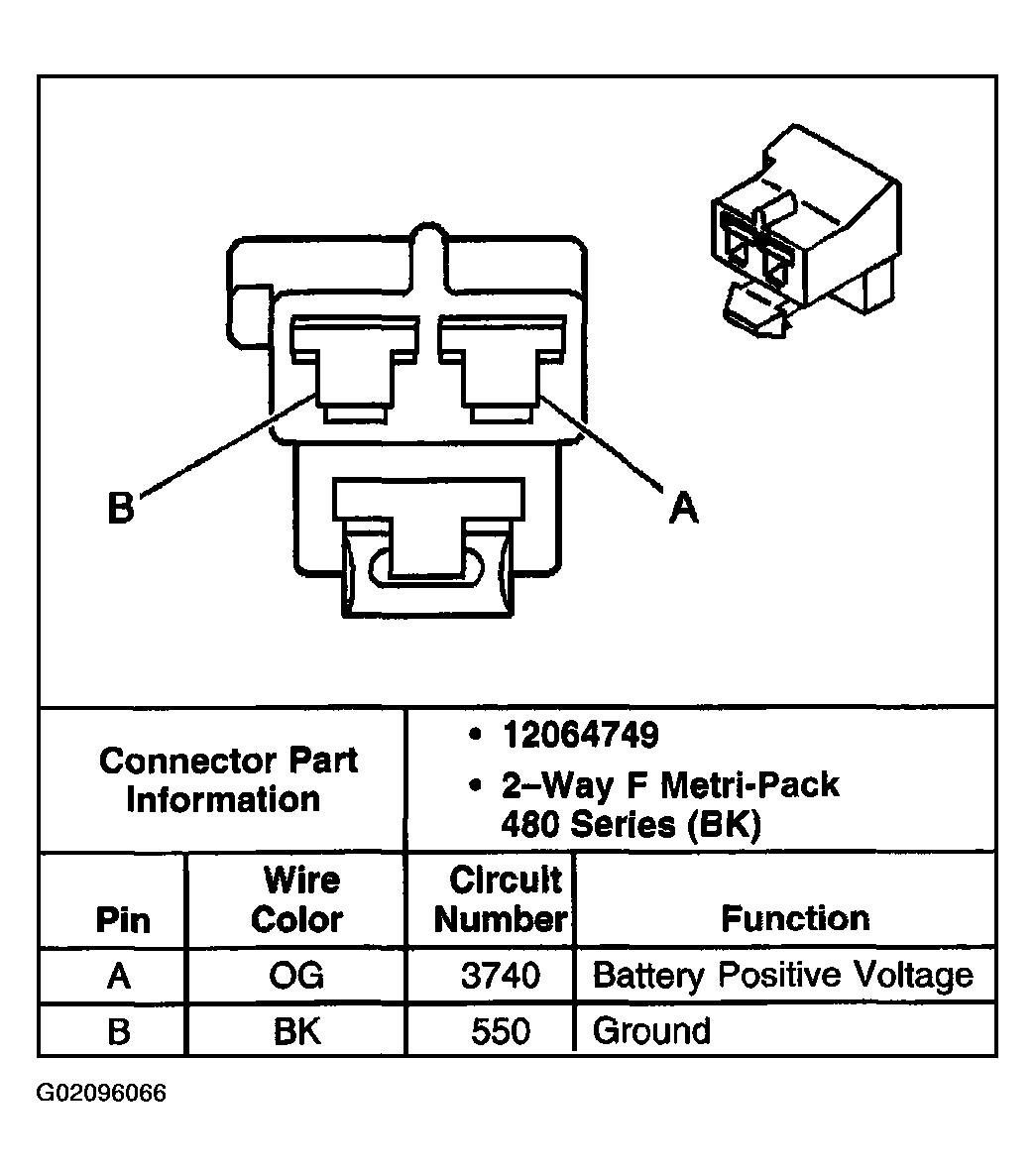

Fig 1: Memory Seat Module (MSM) - C1
G02096066Courtesy of GENERAL MOTORS CORP.
