Input Speed Sensor Removal

  1. Remove the input speed sensor bolt (45).
  2. Remove the input speed sensor (44) from the case (24).

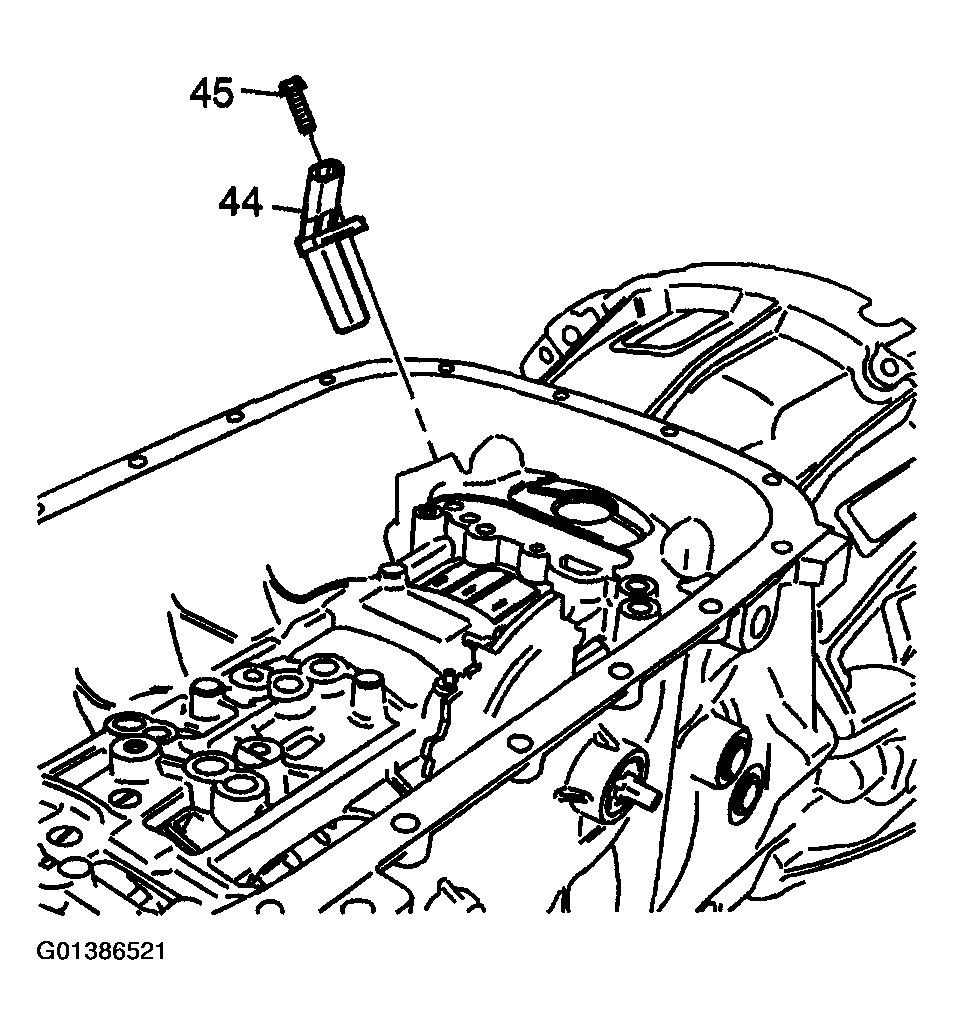

    Fig 1: Removing Input Speed Sensor
    G01386521Courtesy of GENERAL MOTORS CORP.
