Case Components Disassemble

  1. Inspect the transmission vent assembly for damage or being plugged. If the vent is damaged the torque converter housing (227) must be replaced.

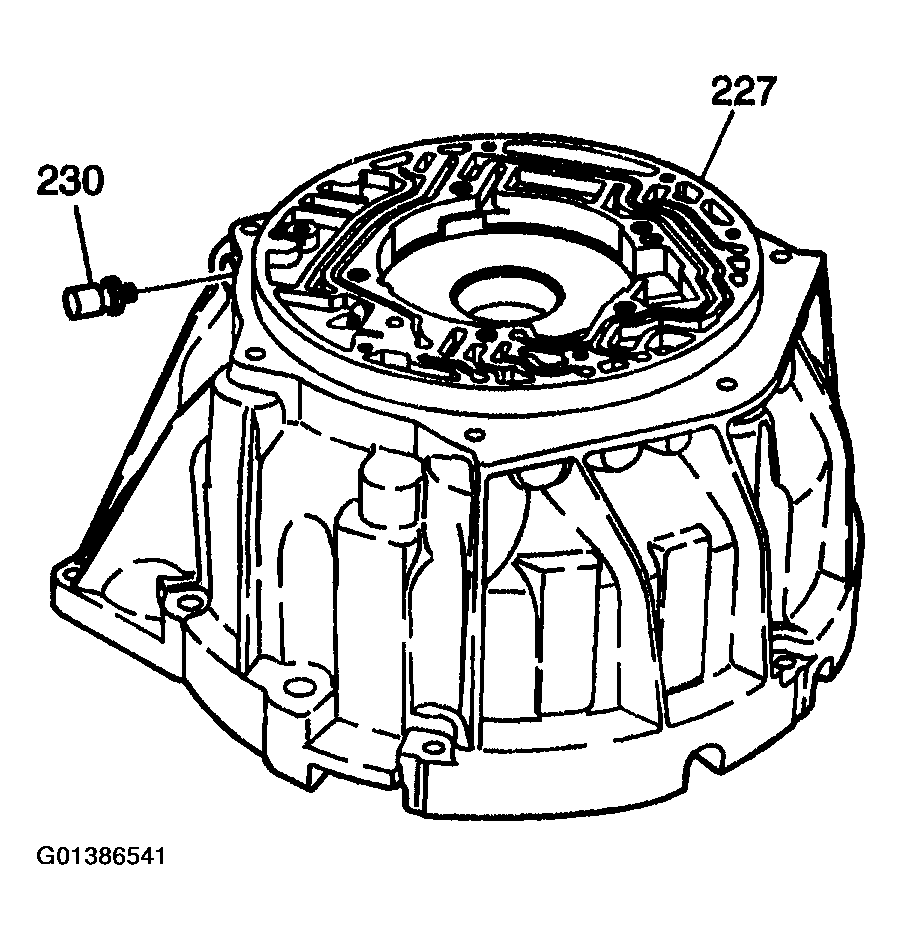

    Fig 1: View Of Torque Converter Housing
    G01386541Courtesy of GENERAL MOTORS CORP.
  2. Remove the pressure test plug (40).
  3. Remove the level hole plug (36) and fluid level hole plug O-ring (37) from the case (604).

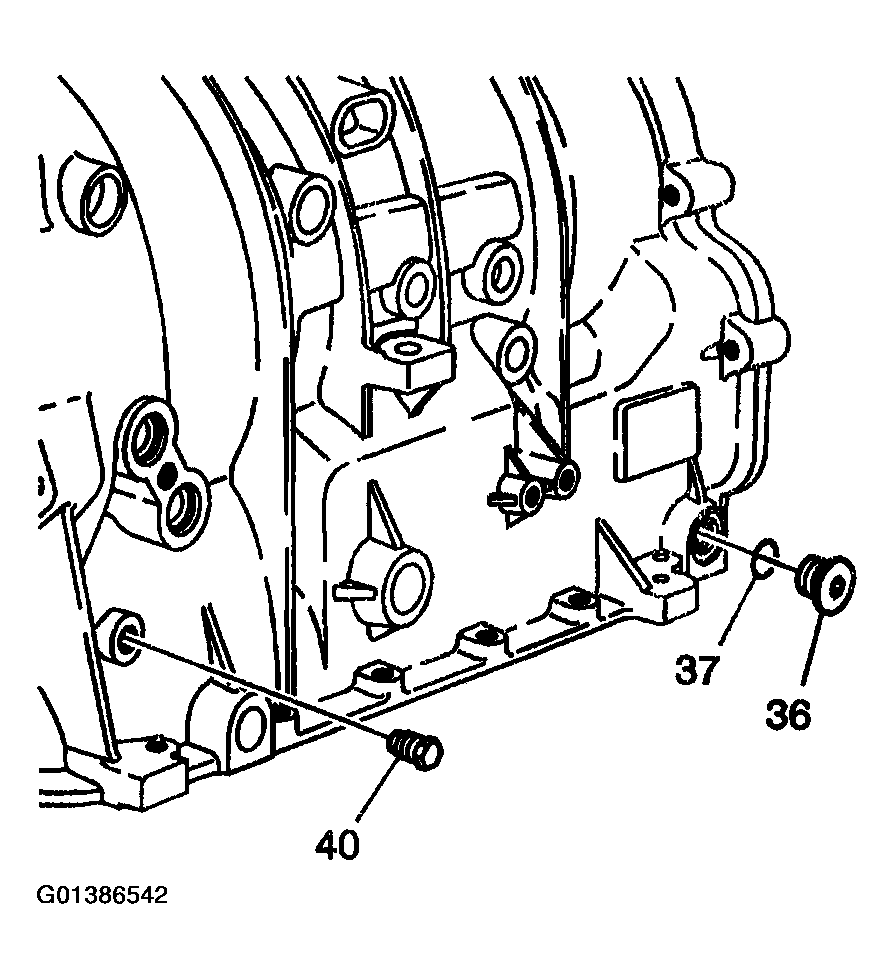

    Fig 2: Removing Level Hole Plug & Fluid Level Hole Plug O-Ring
    G01386542Courtesy of GENERAL MOTORS CORP.
