Case Assembly Inspection
- Inspect the components that are still on the transmission case for the following conditions:
- Loose, cross-threaded, or damaged threads on the transmission oil cooler fittings
- A loose, missing, or damaged transmission name plate
Courtesy of GENERAL MOTORS CORP.

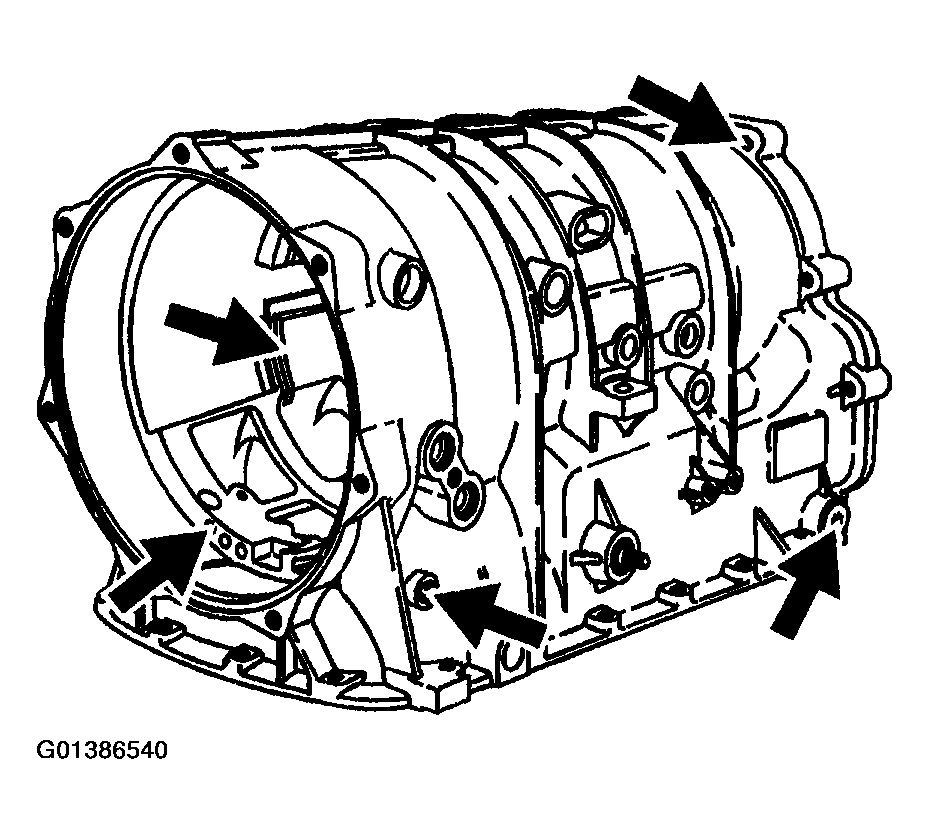

- Inspect the transmission case for the following conditions:
- Gasket sealing surfaces that are damaged or have porosity
- Bolt and screw holes that are stripped or damaged - repair with thread insert
- Damaged or porous case and fluid passages
- Damaged snap ring grooves or housing splines
- A loose, cross threaded, or damaged pressure test plug and fluid level hole plug
Courtesy of GENERAL MOTORS CORP.
