Automatic Transmission Electronic Component Views

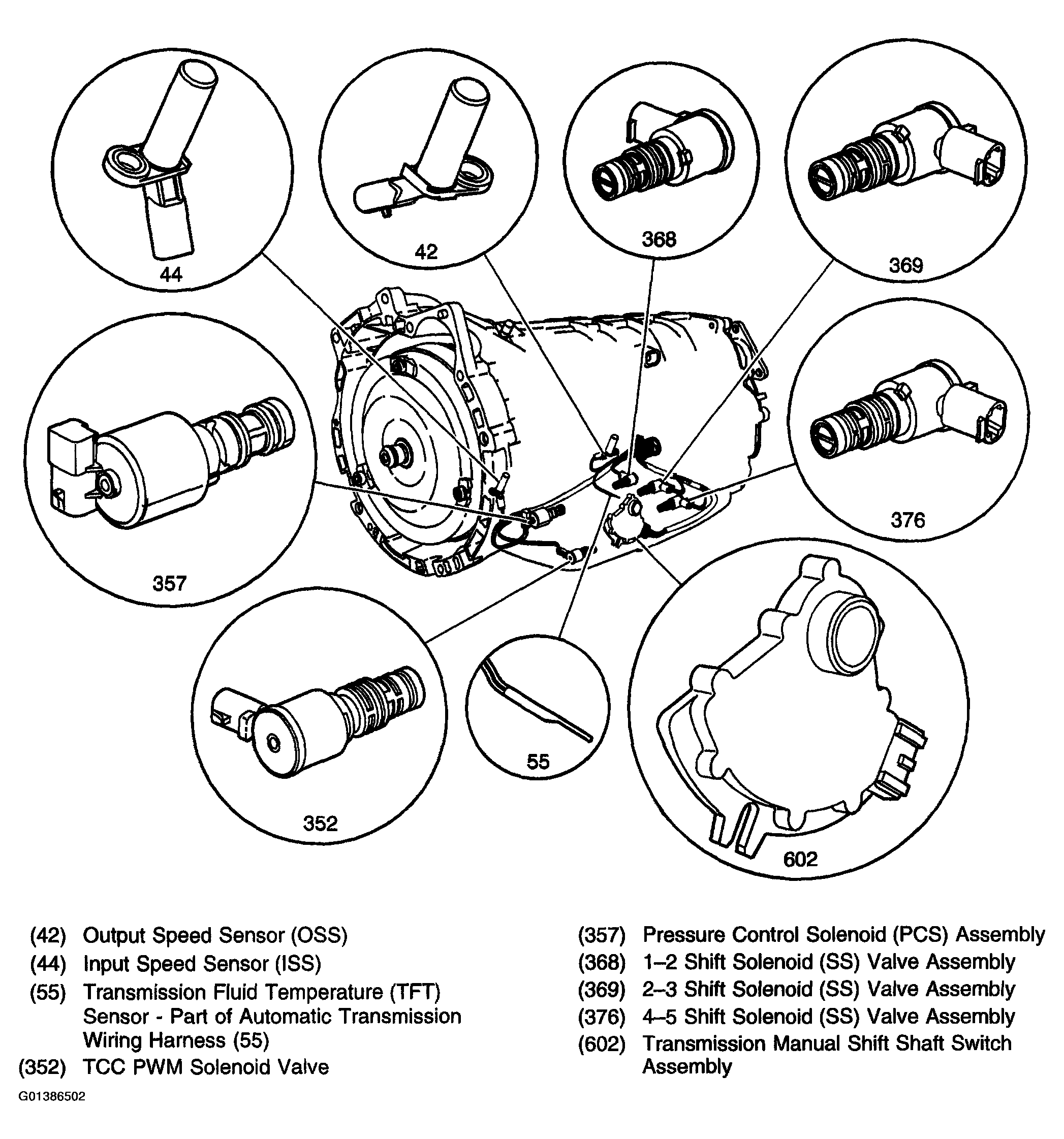

Fig 1: Automatic Transmission Electronic Component View

G01386502

Courtesy of GENERAL MOTORS CORP.
