Transmission Support: Removal

  1. Raise and support the vehicle.
  2. Remove and support the exhaust from the catalytic converters.
  3. Remove the transmission mount lower mounting nuts. See Fig 1.
  4. Support the transmission with a screw jack and block of wood.
  5. Remove the outer transmission mounting bolts. See Fig 2.
  6. Remove the inner transmission mounting bolts. See Fig 3.
  7. Remove the transmission support from the vehicle.

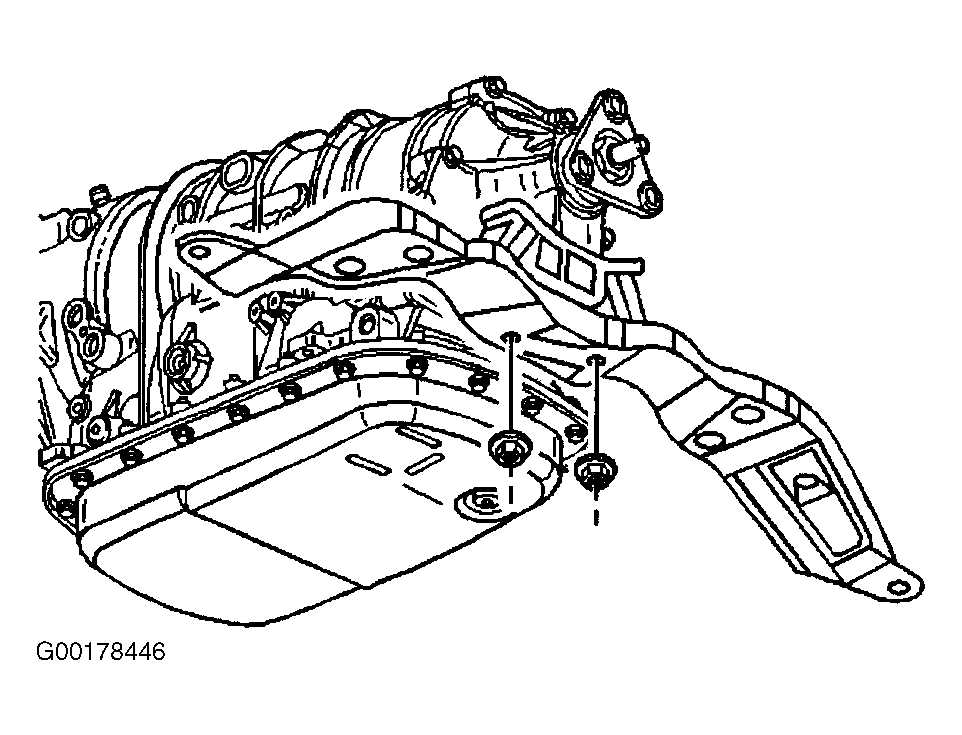

Fig 1: Removing Lower Mounting Nuts
G00178446Courtesy of GENERAL MOTORS CORP.

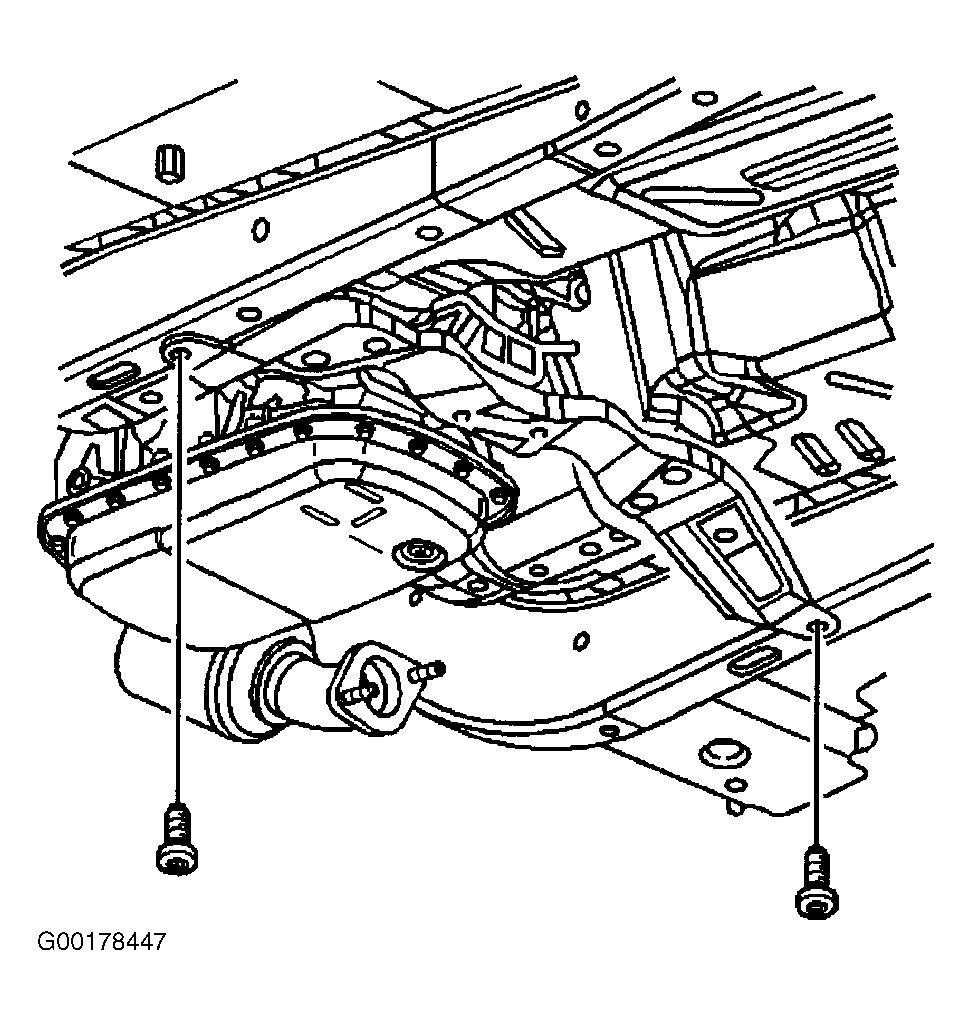

Fig 2: Removing Outer Mounting Bolts
G00178447Courtesy of GENERAL MOTORS CORP.

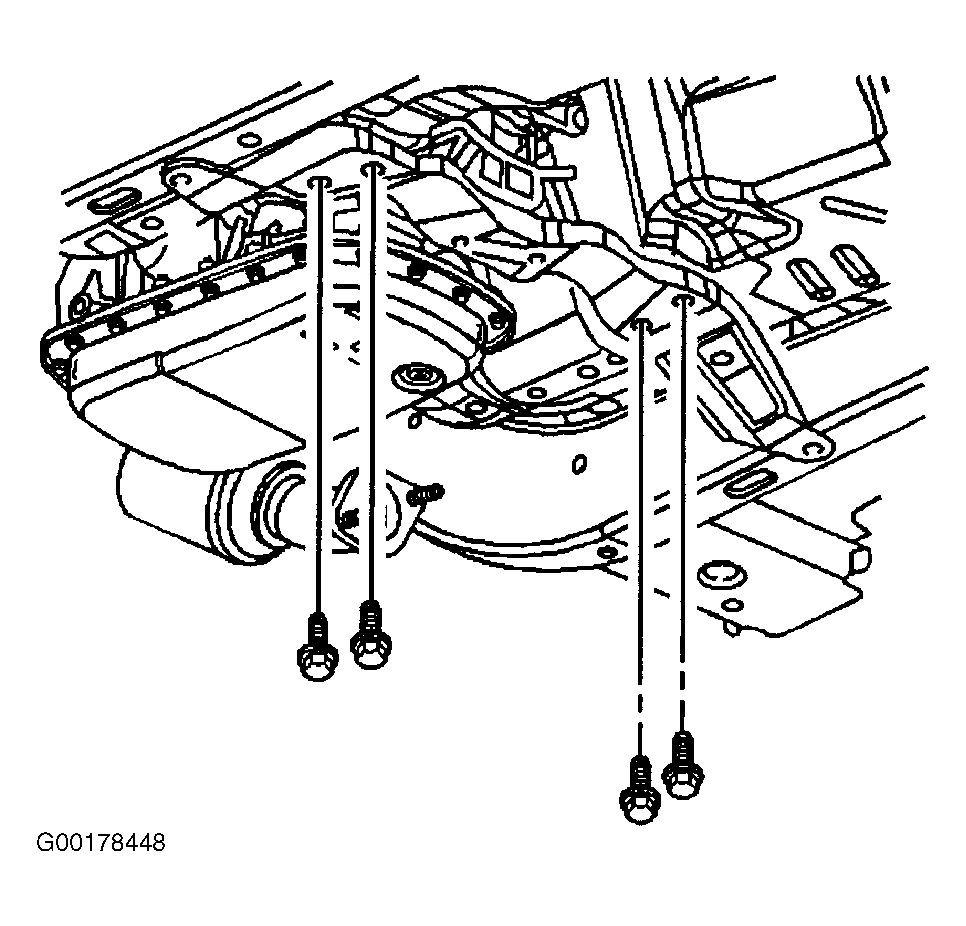

Fig 3: Removing Inner Mounting Bolts
G00178448Courtesy of GENERAL MOTORS CORP.
